9

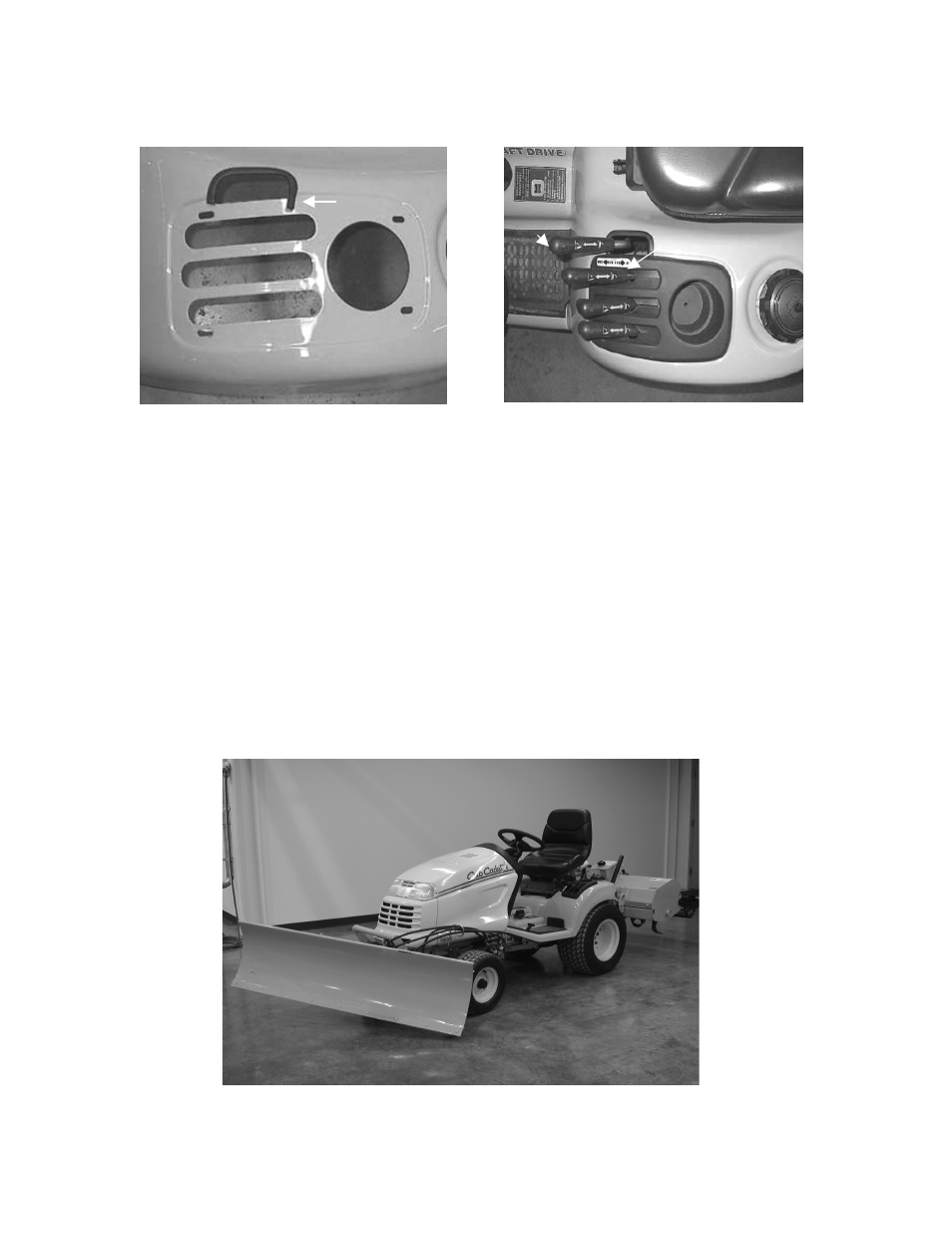

FIGURE 13 FIGURE 14
M) Install the lift lever cover/cup holder into the fender. Affix the fourth valve label (K), as
shown in figure 14, to indicate lift/lower function of the valve handle for the 3 Point Hitch.
N) Install the lift handle knob (I) on the hydraulic valve handle #4 (J).
O) Refer to the installation instructions in the Operator’s Manual that came with all the optional
attachments to reassemble tractor. Some of the instructions in one manual may duplicate,
supersede or supplement instructions in the other.
P) Install the hydraulic valve handles in the appropriate slots. See Figure 14.
Q) Refer to the instructions in the Owner’s Manuals to check for proper operation.
Trim Excess
Material
Fourth Valve Label
Front Hitch
Center Lift
Angling
Fourth Valve
for 3 PT Hitch
