51
Getting Started
P
reparation
B
asic
Operation
S
ettings
Troubleshooting
Othe
rs
ENGLISH
„

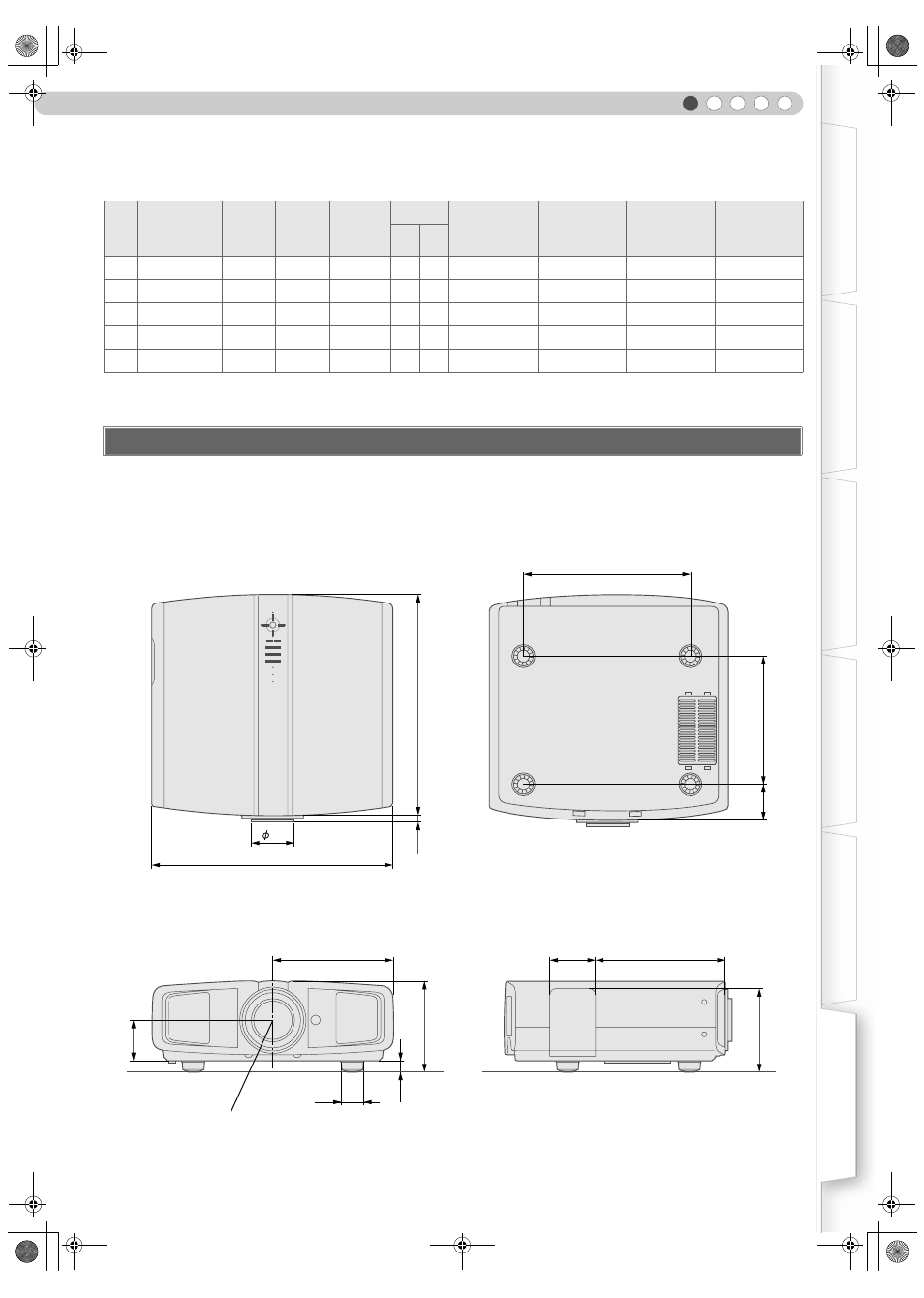

PC compatible signals
Images may not be displayed if the above timings are not met.
(Unit: mm)
No. Resolution
fh
[kHz]
fv
[kHz]
dot CLK
[MHz]
Polarity Total no. of
dots
[dot]
Total no. of
lines
[line]
No. of
effective dots
[dot]
No. of
effective lines
[line]
H V
1 640 c 480 31.500 60.000 25.200 b b 800 525 640 480
2 640 c 480 31.469 59.940 25.175 b b 800 525 640 480
3 800 c 600 37.879 60.317 40.000 a a 1056 628 800 600
4 1024 c 768 48.363 60.004 65.000 b b 1344 806 1024 768
5 1280 c 1024 63.981 60.020 108.000 a a 1688 1066 1280 1024
Dimensions
300
230
68.5
418.5
12
455
84
88.5
149.5
245.5
77
227.5
172.5
21.5 42
Centre of Lens
„ Front „ Left Side
„ Top Surface „ Bottom Surface
