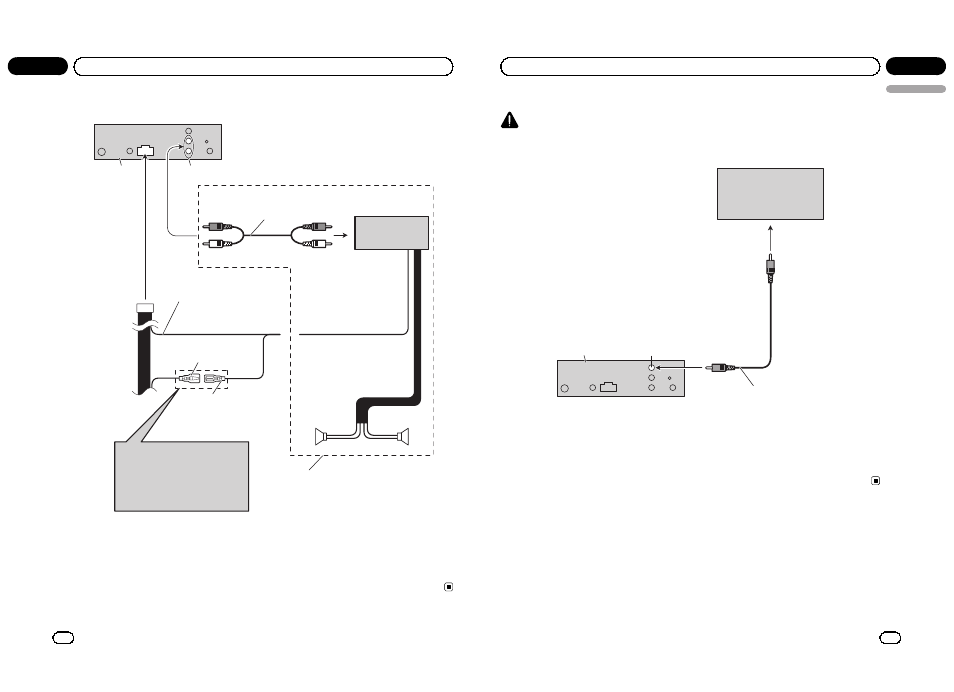

When connecting to separately sold power amp
Connect with RCA cables
(sold separately)
Perform these connections when
using the optional amplifier.
Power amp (sold
separately)
System remote control

 

Blue/white (6*)
Connect to auto-antenna
relay control terminal
(max. 300 mA 12 V DC).
The pin position of the ISO
connector will differ depends on
the type of vehicle. Connect 5*
and 6* when Pin 5 is an antenna
control type. In another type of
vehicle, never connect 5* and 6*.
Blue/white (5*)
Rear speaker Rear speaker
This product Rear output
Blue/white
Connect to system control
terminal of the power amp
(max. 300 mA 12 V DC).
En
6
Section
01 Connections
When using a display connected to video outputs
WARNING
Never install the display in a location where it is
visible to the driver while driving.
Display with RCA
input jacks
(sold separately)
To video input
RCA cable
(sold separately)
This product Video output
En
7
English
Section
01 Connections
