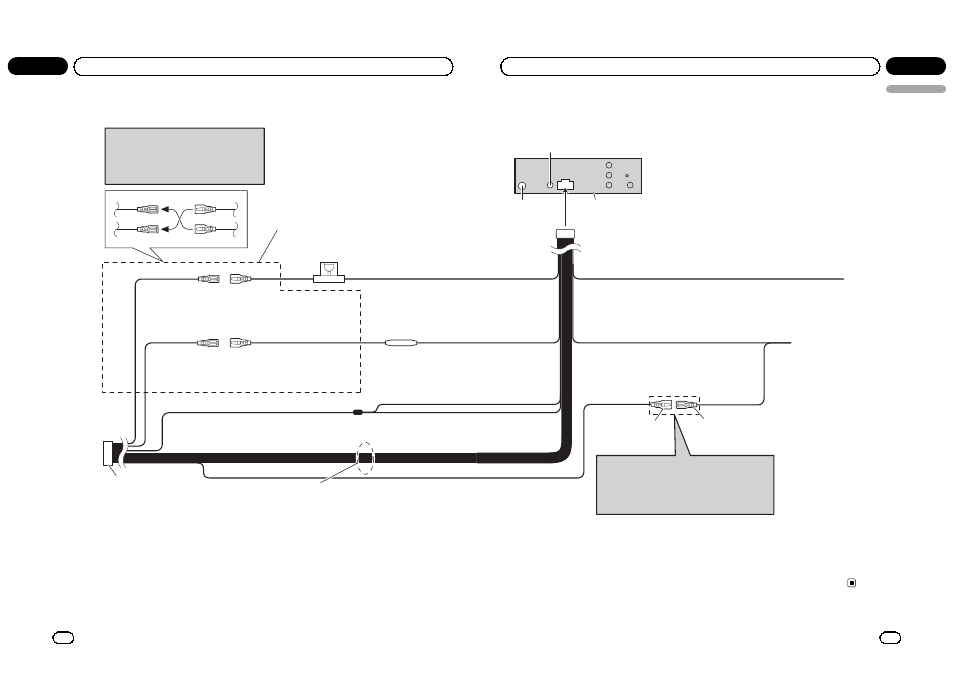

Power cable connection
1*
3*
2*
4*
Note:
Depending on the kind of vehicle, the
function of 2* and 4* may be different. In
this case, be sure to connect 1* to 4*
and 3* to 2*.
Connect leads of the same
color to each other.
Yellow (2*)
Back-up (or
accessory)
Red (4*)
Accessory
(or back-up)
Yellow (1*)
Connect to the constant
12 V supply terminal.
Red (3*)
Connect to terminal controlled
by ignition switch (12 V DC).
ISO connector
Note:
In some vehicles, the ISO connector
may be divided into two. In this case, be
sure to connect to both connectors.
Speaker leads
White: Front
left 
White/black: Front left 
Gray: Front right 
Gray/black: Front right 
Green: Rear left 
Green/black: Rear left 
Violet: Rear right 
Violet/black: Rear right 
Black (chassis ground)
Connect to a clean, paint-free metal location.
Fuse (10 A)
Fuse resistor
En
4
Section
01 Connections
Blue/white
Connect to system control terminal of the
power amp (max. 300 mA 12 V DC).
Blue/white (6*)
Connect to auto-antenna relay control
terminal (max. 300 mA 12 V DC).
The pin position of the ISO connector will
differ depends on the type of vehicle. Connect
5* and 6* when Pin 5 is an antenna control
type. In another type of vehicle, never connect
5* and 6*.
Yellow/black
If you use an equipment with Mute function, wire
this lead to the Audio Mute lead on that
equipment. If not, keep the Audio Mute lead free
of any connections.
This product Antenna jack
Wired remote input
Hard-wired remote control adaptor can
be connected (sold separately).
Blue/white (5*)
En
5
English
Section
01 Connections
