Connections 03
14
En
• This unit is designed for connection to HDMI-compatible
devices. It may not operate properly if connected to DVI
devices.
The term HDMI and High-Definition Multimedia Interface, and
the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing, LLC in the United States and other countries.
Audio signals that can be output from
this unit’s HDMI OUT terminal
• 44.1 kHz to 96 kHz, 16-bit/ 20-bit/ 24-bit 2-channel linear
PCM audio (including 2-channel downmixing)
• Dolby Digital 5.1-channel audio
• MPEG audio
• Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.

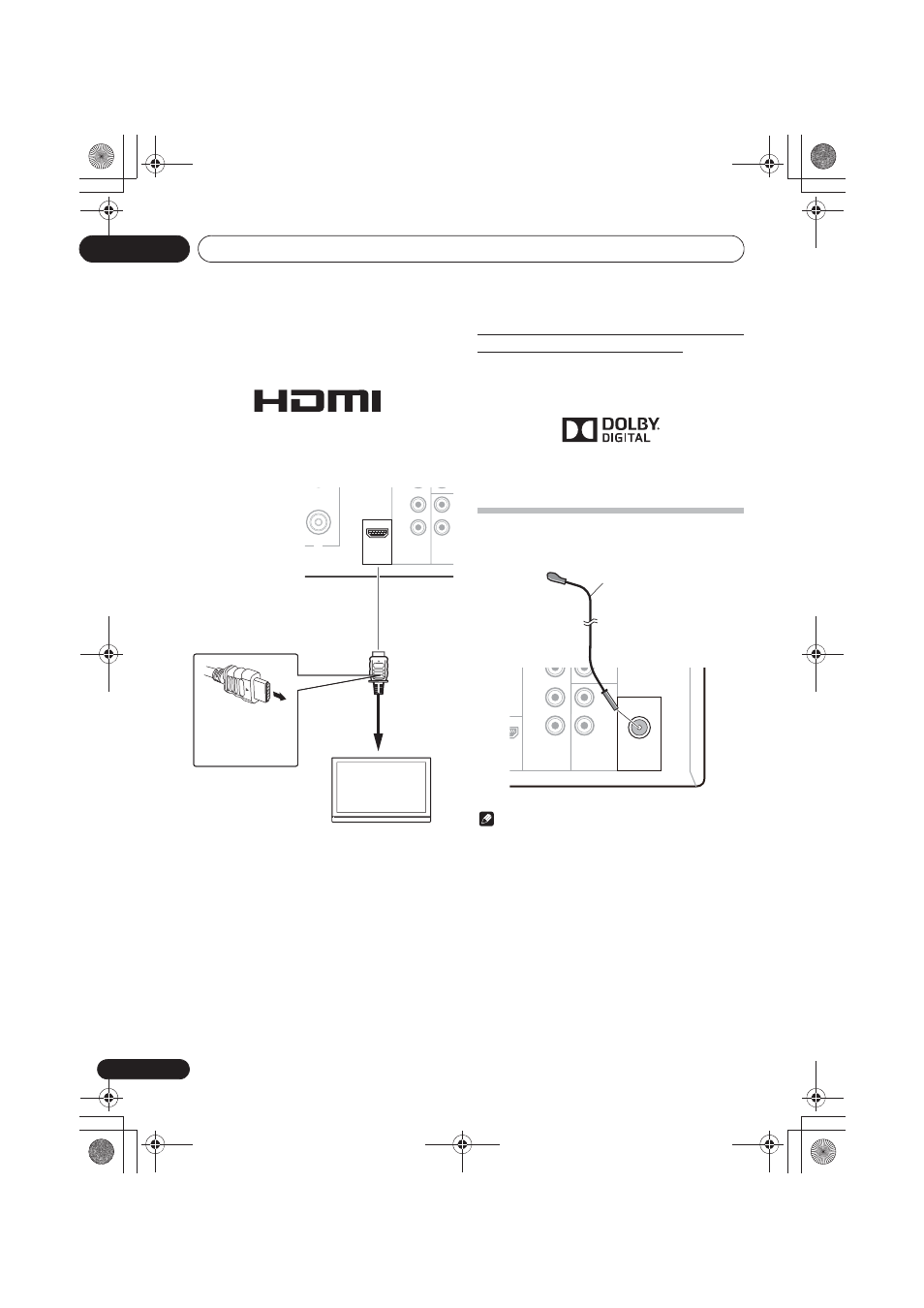

Connecting the FM antenna
Connect the FM antenna plug onto the center pin of the FM
antenna socket.
Note
• To ensure optimum reception, make sure the FM
antenna is fully extended and not coiled or hanging at
the rear of the unit.
OUT COMPONENT
VIDEO
OUT
I
L
P B
P R R
HDMI
L
Match the direction of
the plug to the
terminal and insert
straight.
To HDMI input
terminal
HDMI cable
(commercially
available)
TV
This unit’s rear panel
ANTENNA
COMPONENT
VIDEO
OUT
IN
LINE
P B
P R
Y
L
R
FM
UNBAL 75
Ω
This unit’s rear panel
FM wire antenna
(supplied)
