16 Installation
Installa
tion
3

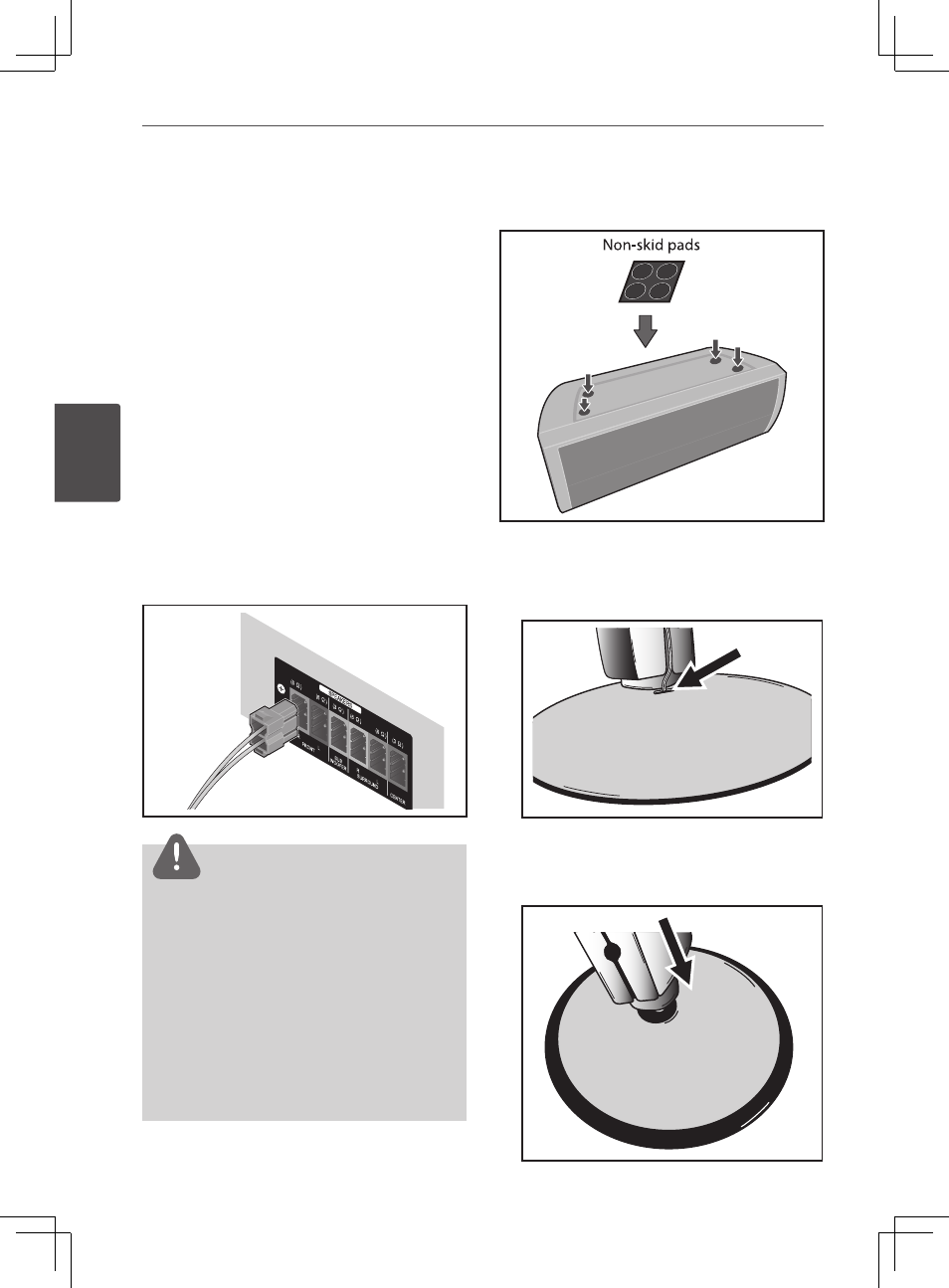

Assemble the speakers
Speaker Setup
1. Connect the wires to the player.
Insert the cables connected to the
player to the same colored connector
on the speaker.
CAUTION
• These speaker terminals carry HAZARDOUS
LIVE voltage. To prevent the risk of electric
shock when connecting or disconnecting
the speaker cables, disconnect the power
cord before touching any uninsulated parts.
• Do not connect any speakers other than
those supplied to this system.
• Do not connect the supplied speakers to
any amplifier other than the one supplied
with this system. Connection to any other
amplifier may result in malfunction or fire.
2. Attach the non-skid pads to the base of
each speaker.
3. Mount the front/surround speaker.
1 Pass the speaker cable through the
cable hole on the side of the base.
2 Insert the lower cabinet to the base
so that the cable hole is positioned at
the backside.
