Speaker Setup for DCS-404K
Preparing the speakers

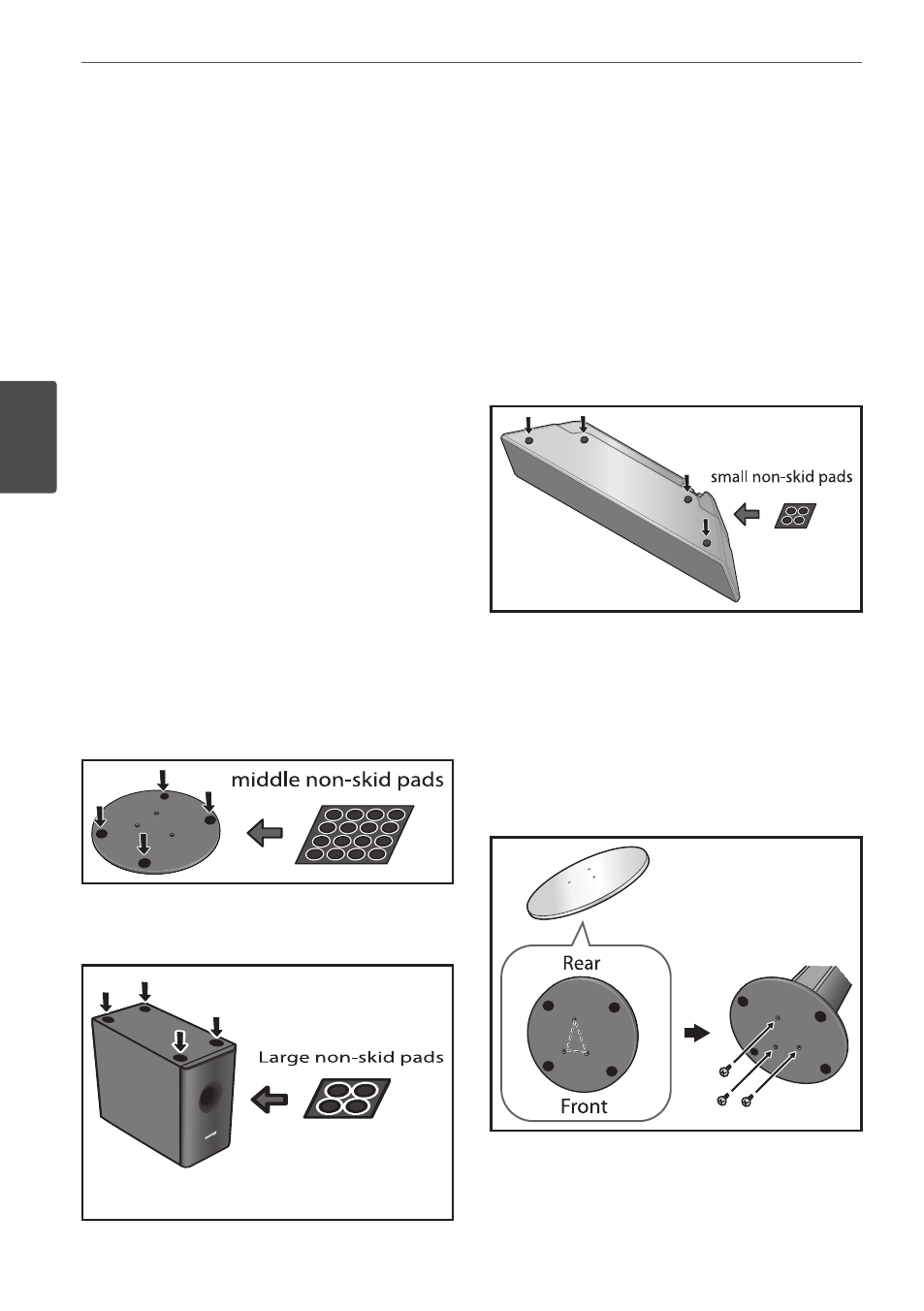

1. Attach the non-skid pads to the base of
each speaker stand bases, the subwoofer
and the centre speaker.
For speaker stand bases:
Use the supplied adhesive to attach four
middle pads to the base (bottom) of each
speaker stand base.
For subwoofer:
Use the supplied adhesive to attach four
large pads to the base of subwoofer.
For centre speaker:
Use the supplied adhesive to attach four
small pads to the base of centre speaker.
2. Attach the speaker stand bases to the stems
using the screws provided.
Once you have aligned the stem and base,
secure with the small screws at the points
shown below. Note that the speaker should
face in the direction of the base of the
isosceles triangle.
