Chapter 2:
Controls and displays

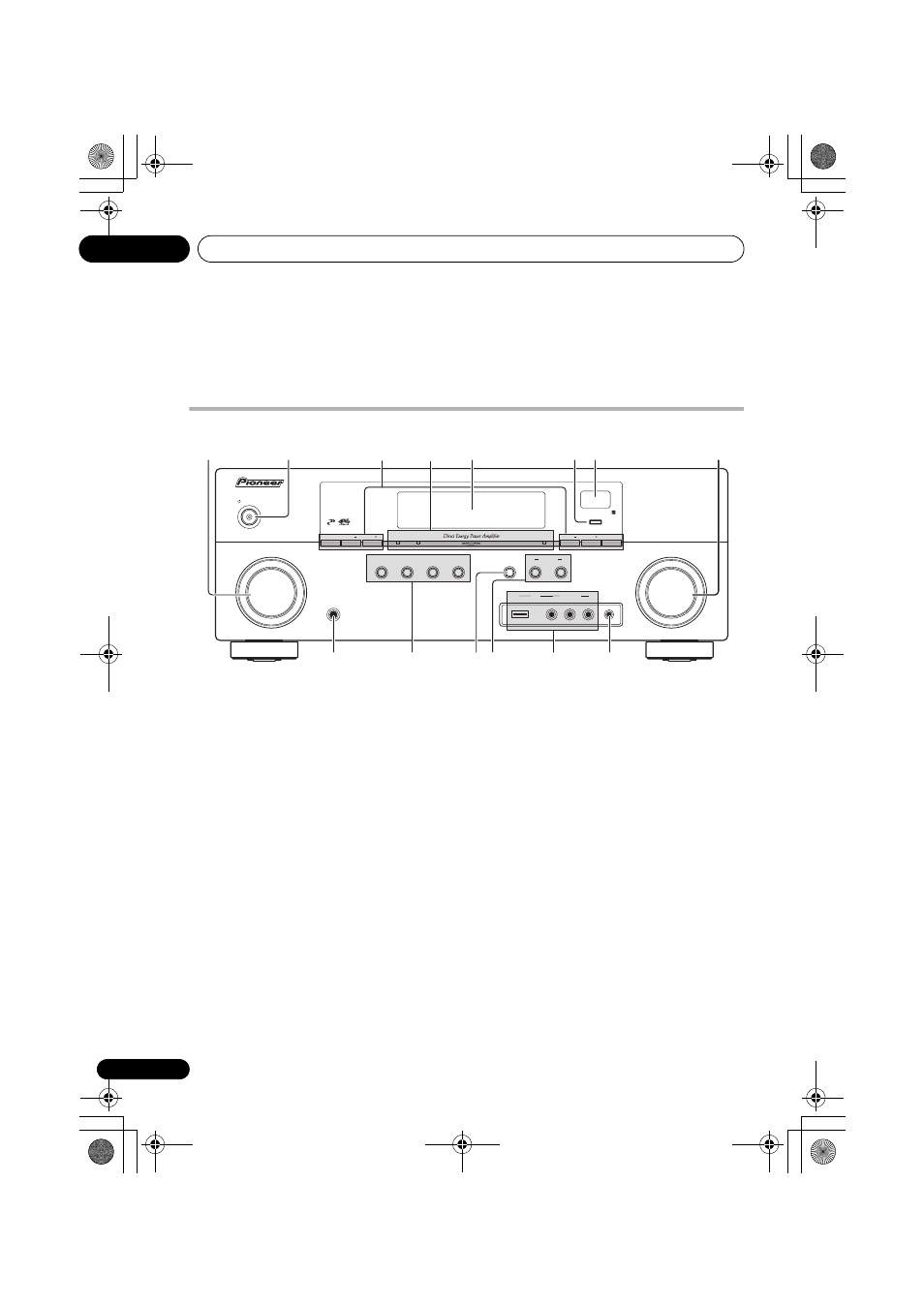

Front panel
1 INPUT SELECTOR dial
Use to select an input function.
2  STANDBY/ON
Switches the receiver between on and standby.
Power indicator lights when the receiver is on.
When the KURO LINK function is set to ON,
the power indicator lights dimly when the
power is in standby.
3 Tuner controls
BAND – Switches between AM and FM
radio bands (page 49).
TUNE +/– – Use to find radio frequencies
(page 49).
PRESET +/– – Use to find preset stations
(page 50).
TUNER EDIT – Use with TUNE +/–, PRESET
+/– and ENTER to memorize and name
stations for recall (page 50).
4 PHASE CONTROL indicator – Lights to
indicate Phase Control is selected
(page 58).
ADVANCED MCACC indicator – Lights
when EQ is set to ON in the AUDIO
PARAMETER menu.
HDMI indicator – Blinks when connecting
an HDMI-equipped component; lights when
the component is connected (page 23).
5 Character display
See Display on page 9.
6 ENTER
7 Remote sensor
Receives the signals from the remote control
(see Operating range of remote control unit on
page 13).
