3

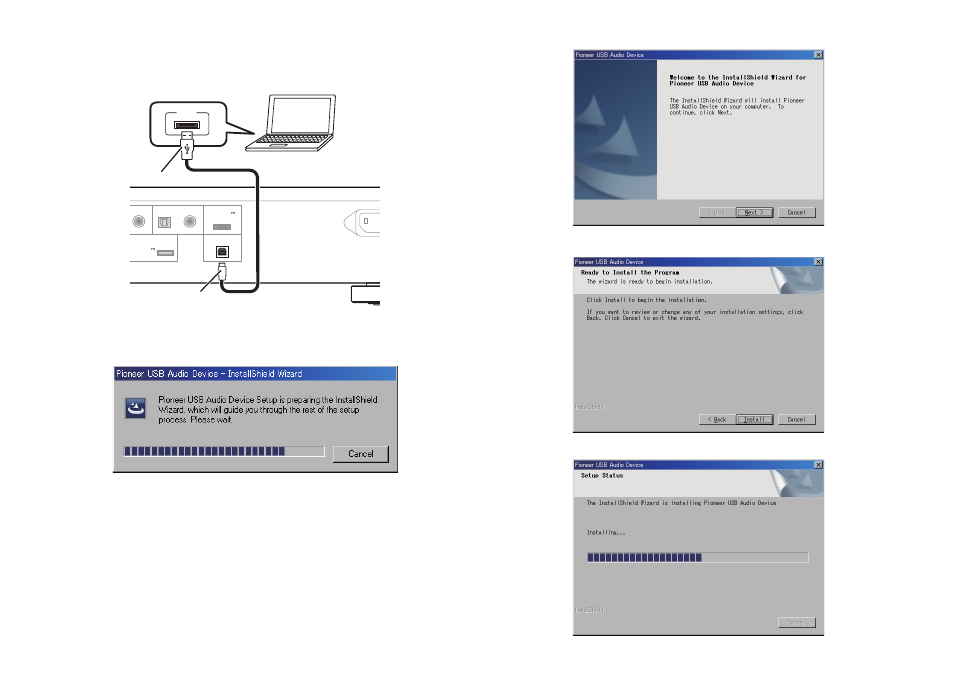

3 Use a proper USB cable to connect a computer to a device equipped with
DIGITAL IN USB connector, then turn on the power.
For more information regarding connections, check the Operating Instructions for this
device. The image shown below is for the N-50.
AL OUT
COAXIAL OPTICAL COAXIAL
1 2
DIGITAL IN
DIGITAL IN
ADAPTER PORT
DC OUTPUT
for WIRELESS LAN
USB
(OUTPUT 5V
0.1A MAX)
(OUTPUT 5V
0.6A MAX)
AC IN
USB
A–type
B–type
4 Execute the Setup program located in the root directory of the
decompressed folder.
The InstallShield wizard will appear.
• If an older version of this driver program is found on the computer, the InstallShield wizard
will display a “delete” option. In this event, follow the on-screen instructions to delete the older
version, then reboot your computer and once again install the new driver program.
5 Click on [Next].
6 Click on [Install].
The following screen will appear; wait until the step 7 instructions appear.
