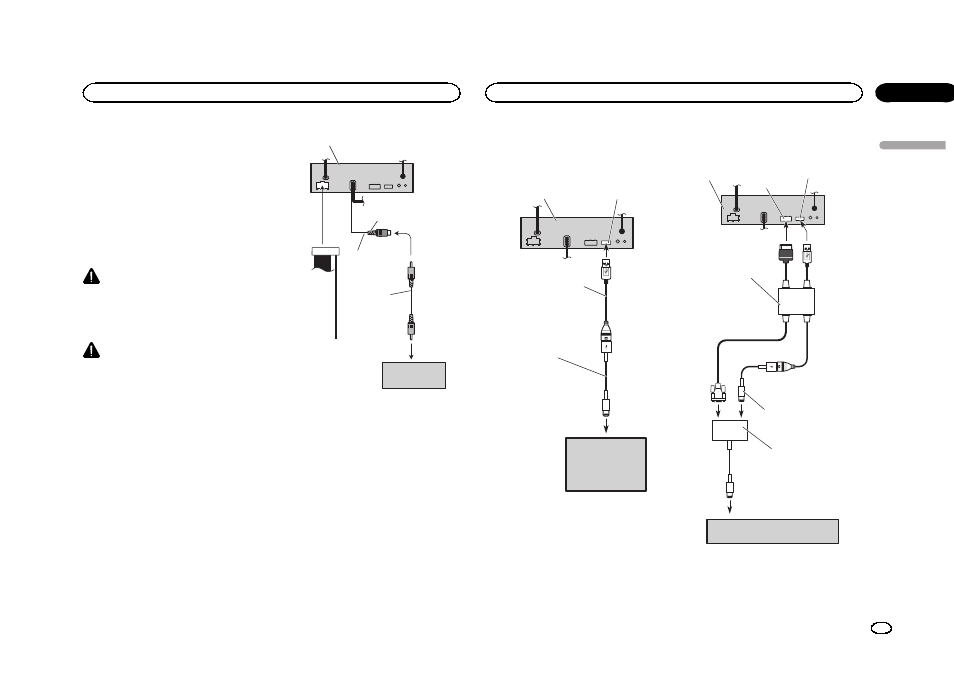

When connecting with a rear
view camera

When the shift lever is switched to REVERSE
(R), the display on this unit automatically
switches to the rear view image. You need to set
the

Camera Polarity properly in the system

menu.
You can also switch the rear view image by
pressing the touch panel key.
For details, refer to operation manual.

WARNING

USE INPUT ONLY FOR REVERSE OR MIR-
ROR IMAGE REAR VIEW CAMERA. OTHER
USE MAY RESULT IN INJURY OR DAM-
AGE.

CAUTION

! You must use a camera which outputs

mirror reversed images.

! The screen image may appear reversed.

! The rear view camera function is to be used

as an aid to keep an eye on trailers, or while
backing up. Do not use for entertainment
purposes.

! Objects in the rear view may appear closer or

more distant than they actually are.

To video output

Rear view camera
(sold separately)

Violet/white
Of the two lead wires
connected to the back lamp,
connect the one in which the
voltage changes when the
gear shift is in the REVERSE
(R) position. This connection
enables the unit to
sense whether the car is
moving forwards or
backwards.

RCA cable
(sold separately)

Rear view camera input
(REAR VIEW CAMERA IN)

This product

13 cm

iPod with lightning connector

When connecting with
Lightning to USB Cable

iPod with lightning
connector
(sold separately)

USB cable
(Supplied with this unit)
Connect to separately sold
USB device.

Lightning to USB Cable
(Supplied with iPod/iPhone)

This product

USB/iPod input

When connecting with optional
CD-IV202AV cable

Lightning to USB Cable
(Supplied with iPod/iPhone)

(*1)
For details of how to connect the separately

sold VGA/USB interface cable (CD-IV202AV),
refer to the VGA/USB interface cable manual.

RGB input

iPod with lightning connector
(sold separately)

Lightning to VGA Adapter

(Apple Inc. products)

(sold separately)

VGA/USB interface cable(*1)
(sold separately)

USB/iPod input

This product

English

Connecting the units

5

Section

Connecting the units

En

01
