Page 43
Automatic Lift Fryer
Replacement Parts
41

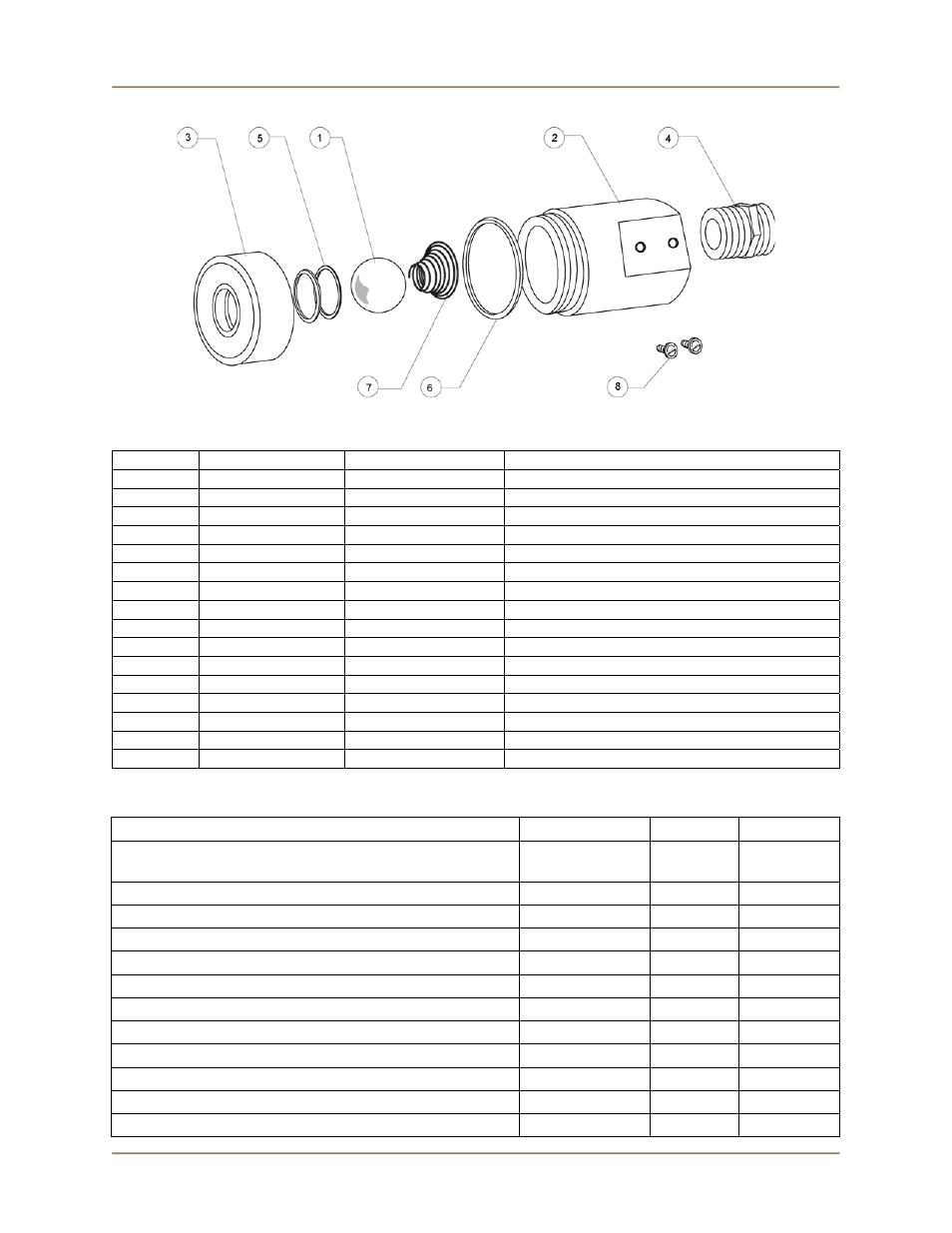

Figure 9. Quick Disconnect Assembly
Table 9. Quick Disconnect Assembly Parts
ITEM #
PART #
QTY
DESCRIPTION
AB86200700
1 B0996
1
BALL, 11/16" STEEL BEARING
2 FT0429
1
QUICK DISCONNECT, PUMP SIDE
3 FT0500
1
QUICK DISCONNECT, VAT SIDE
4 FT0536
1
COUPLING, 5/8 45¦ FLARE TO
5 O0013
2
O-RING, FLUOROCARBON V680-70
6 O0014
1
O-RING, PARKER #2-124 LARGE
7 S0138
1
SPRING, FOR QUICK DISCONNECT
8 SCR453
2
SCREW, #10 24X3/8" WASHERED
SB1997S
1 B0996
1
BALL, 11/16" STEEL BEARING
2 FT0429
1
QUICK DISCONNECT, PUMP SIDE
3 FT0500
1
QUICK DISCONNECT, VAT SIDE
5 O0013
2
O-RING, FLUOROCARBON V680-70
6 O0014
1
O-RING, PARKER #2-124 LARGE
7 S0138
1
SPRING, FOR QUICK DISCONNECT
Components
Description
Component #
Figure #
Item #
CALROD, 208V 4500W LPF (W)
CALROD, 240V 4500W LPF (W)
C0292
C0294
Figure 10
1
CASTER, 2470-DIK-075-R05/22
C0409
Figure 10
2
CASTER, 2477-DIK-075-R05/22
C0410
Figure 10
3
FILTER BAG CLIP FKM-F
ST0015
Figure 10
4
PROBE ASSEMBLY KIT, COMPUTER
SB1938
Figure 10
5
THERMISTER PROBE/FTGS ASSEMBLY
SB7656
Figure 10
6
COLLAR/LIFT ADJ WELD BLF
WA16015600
Figure 10
7
BASKET LIFT ARM LINEAR ACTUATOR WELD
WB15200300
Figure 10
8
MOTOR, BALL DRIVE ACTUATOR
M0084
Figure 10
9
CAPACITOR, 7.5 MFD 370 VAC
CP0102
Figure 10
10
HINGE, SLIP WING RH
H0051
Figure 10
11
HINGE, SLIP WING LH
H0052
Figure 10
12
