Automatic Lift Fryer
Replacement Parts
32

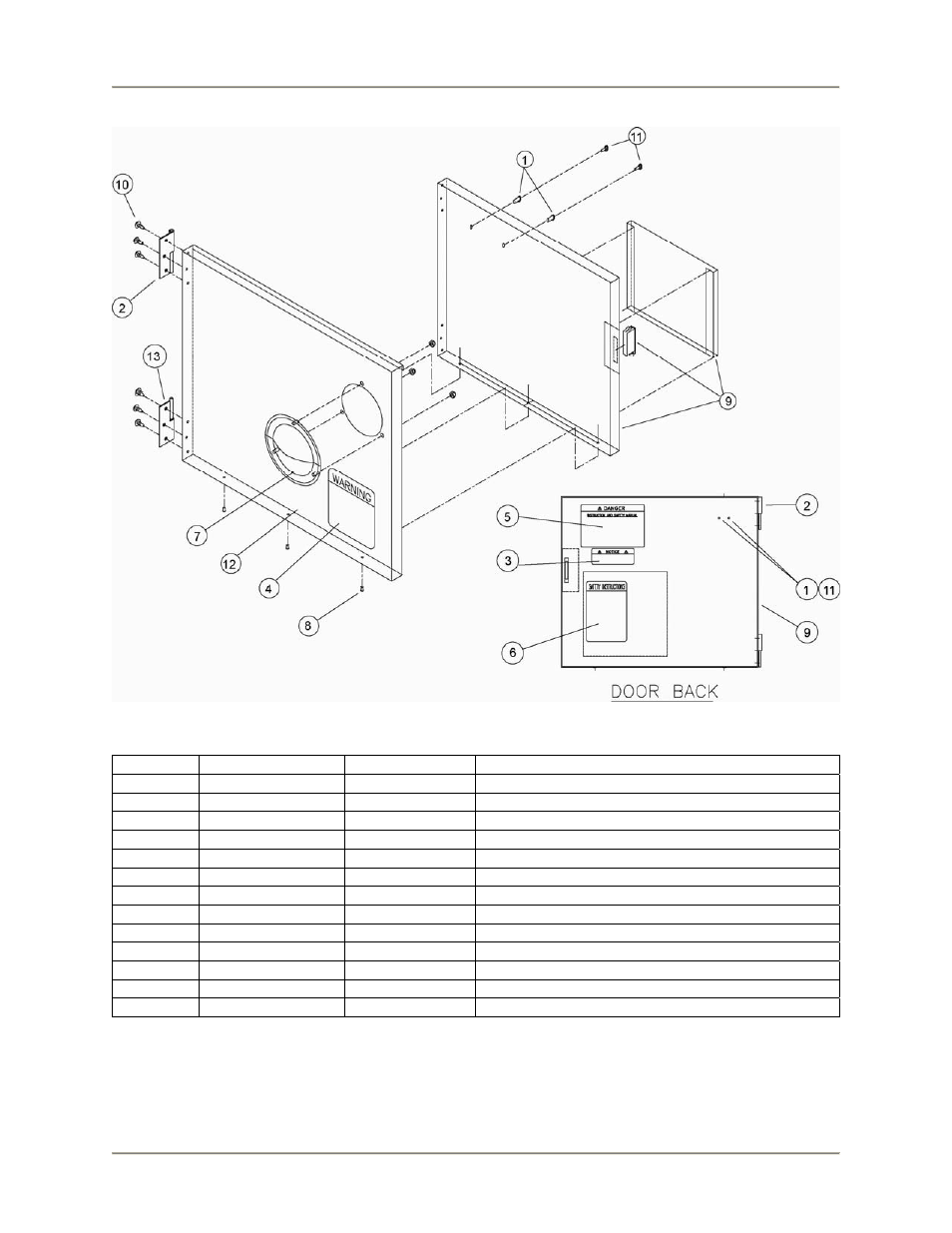

Figure 4. Door Assembly (SB1289)
Table 4. Door Assembly (SB1289) Parts
ITEM #
PART #
QTY
DESCRIPTION
1 F0083
2
THREAD INSERT 10-24 STEEL
2 H0010
1
HINGE, LH PIN HALF
3 N0165
1
DECAL, NOTICE LOST MANUAL
4 N0175
1
DECAL, SLIPPING ADMONITIONS
5 N0176
1
DECAL, INSTR & SAFETY MANUAL
6 N0527
1
DECAL, SAFETY INSTR FRYERS
7 P0022
1
HANDLE, PULL SS P60-1010
8 RIV172
3
RIVET, 1/8 X 1/4 CS PLT POP
9 SB1290
1
DOOR MAGNET WELD, ALF
10 SCR008
6
SCREW, 10 X 1/2 PHIL TRUSS HD
11 SCR075
2
SCREW, 10-24 X 3/8 SHOULDER
12 WLPFA096
1
DOOR, LPF CORNERS WELDED
13 H0009
1
HINGE, RH PIN HALF
