- 7 -
FLUE MOUNTING
BRACKET
FASTEN FLUE TO BRACKET WITH MOUNTING
SCREWS (3.9x9.5mm)
6" ROUND
METAL DUCT
DECORATIVE
FLUE
DUCT TAPE
CONNECT DUCTWORK

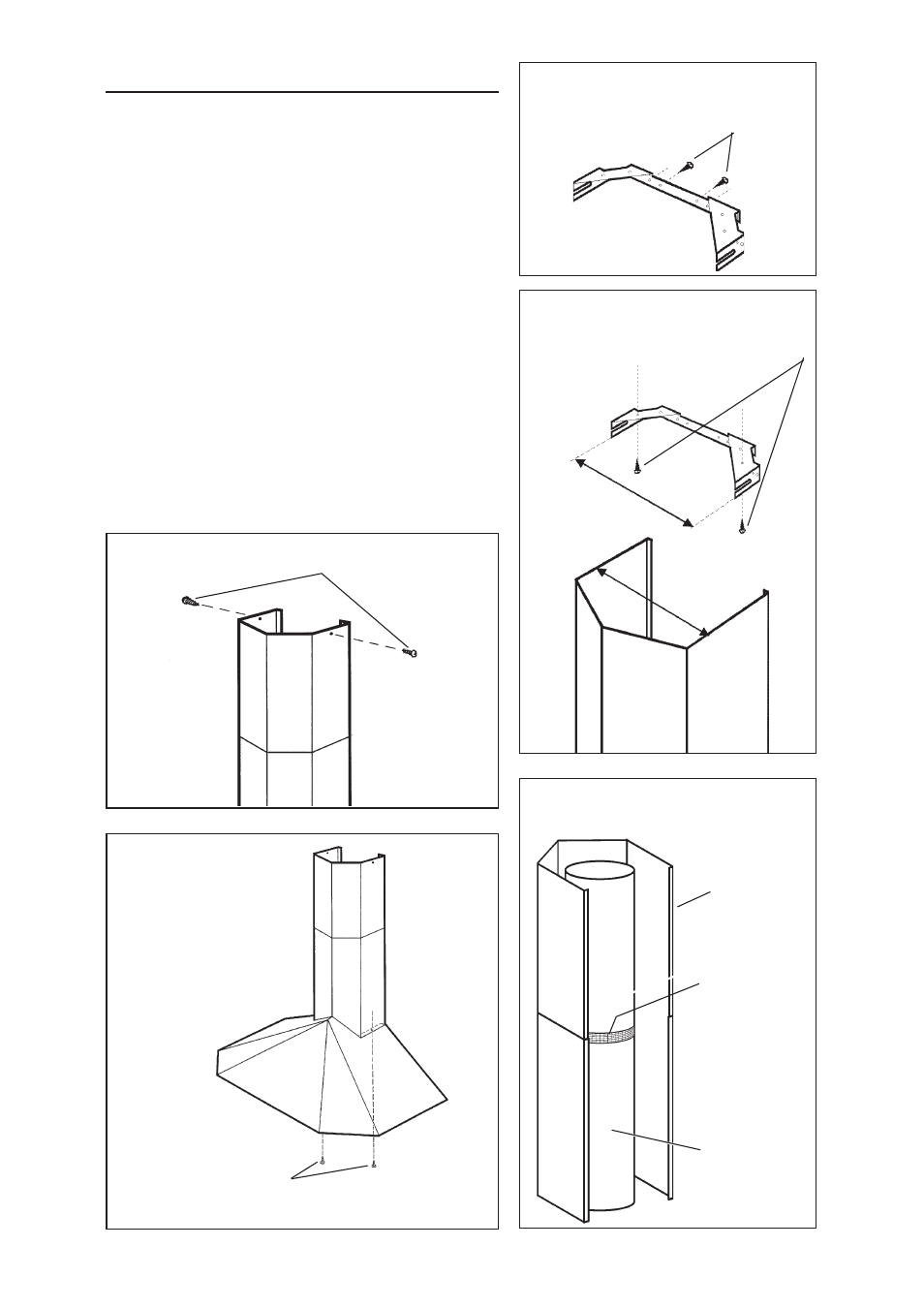

1. Adjust the width of the flue mounting bracket
to equal the inside width of decorative flue.
Insert and tighten mounting screws to hold
bracket width. Use mounting screws
(4.8x38mm) and wall anchors to secure flue
mounting bracket to the ceiling as shown.
2. Use 6" round metal duct to connect the
discharge collar on the hood to the
ductwork above.
3. Use duct tape to make all joints secure
and air tight.
4. Carefully place the lower decorative flue
into the recessed area of the range hood
top.
5. Extend the upper flue to the ceiling and
secure with two mounting screws
(3.9x9.5mm).
6. Secure lower flue to hood with the two
mounting screws provided (3.9x9.5mm).
FASTEN FLUE TO
HOOD WITH
MOUNTING SCREWS
(3.9x9.5mm)
MOUNTING
SCREWS
(4.8x38mm)
=
=
MOUNTING
SCREWS
