Firebox End
Front Legs
Clear an assembly area and get a friend to help
you put your smoker together. Lay cardboard
down to protect smoker finish and assembly
area.
CAUTION: Remember, your new smoker
weighs more than 250 lbs. so be
extremely careful during the
assembly process.

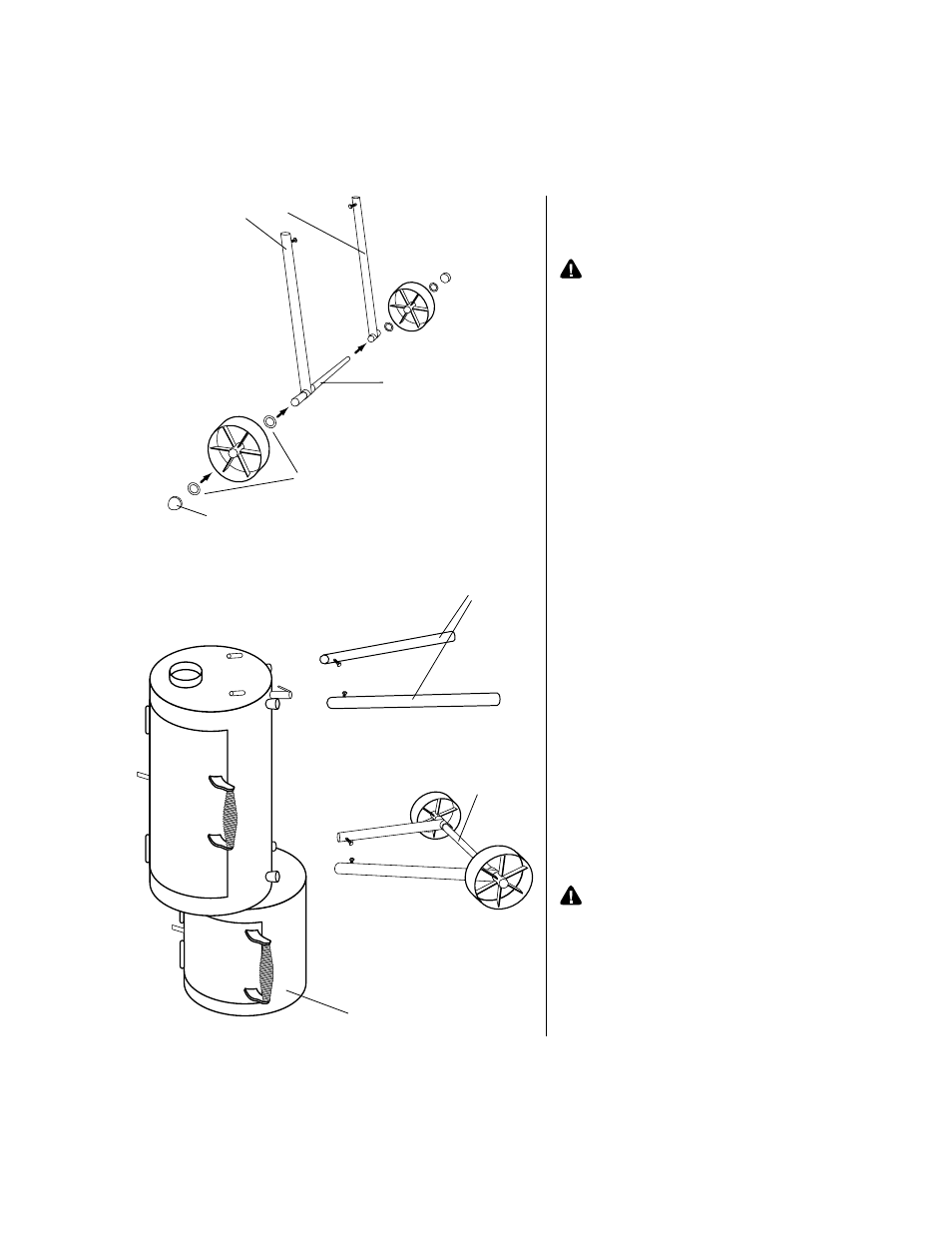

Step 1
With leg screws facing inward, insert axle
rod through both rear leg receivers. Place a
w" washer on either side of a either 52" or
16" wagon wheel and insert on one end of
axle. Repeat on other side. Place axle caps
on each end of axle and hammer into
place.
Step 2
Place cooker on firebox end with the doors
closed as illustrated. Make sure that
another person is holding the cooker
steady.
Step 3
Install assembled legs onto the leg
receivers closest to firebox. Using a
9 ⁄
16
"
wrench tighten screws securely.
Step 4
Install front legs onto leg receivers with
screws facing in. Using a
9 ⁄
16
" wrench
tighten screws securely.
Step 5
Keeping lids closed and with the help of an
assistant, carefully turn the smoker to its
upright position. Try to minimize the stress
placed on the legs.
CAUTION: Keep lids closed when setting
unit upright to prevent bodily
injury.
NOTE: Your smoker has been built with a 2"
tilt towards the smokestack end. To
ensure proper grease drainage
always keep your smoker on a level
surface.
Rear Leg Receiver
Axle Rod
Axle Cap
w" Washer
Assembled
Rear Legs
