Brinkmann Stillwater Charcoal/Wood Smoker & Grill - Manual (Page 4)

3
ASSEMBLY INSTRUCTIONS
READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY
BEFORE ASSEMBLING OR OPERATING YOUR SMOKER.
FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 1-800-527-0717.
(PROOF OF PURCHASE WILL BE REQUIRED.)
We recommend two people work together
when assembling this unit.
The following tools are required to assemble
this Cimarron:
• Hammer
• 9 ⁄
16
" Wrench or Adjustable Wrench
Inspect contents of the box to ensure all parts are included and undamaged.
1
2
3
5
6
7
8
9 10
12
13
14
15
11

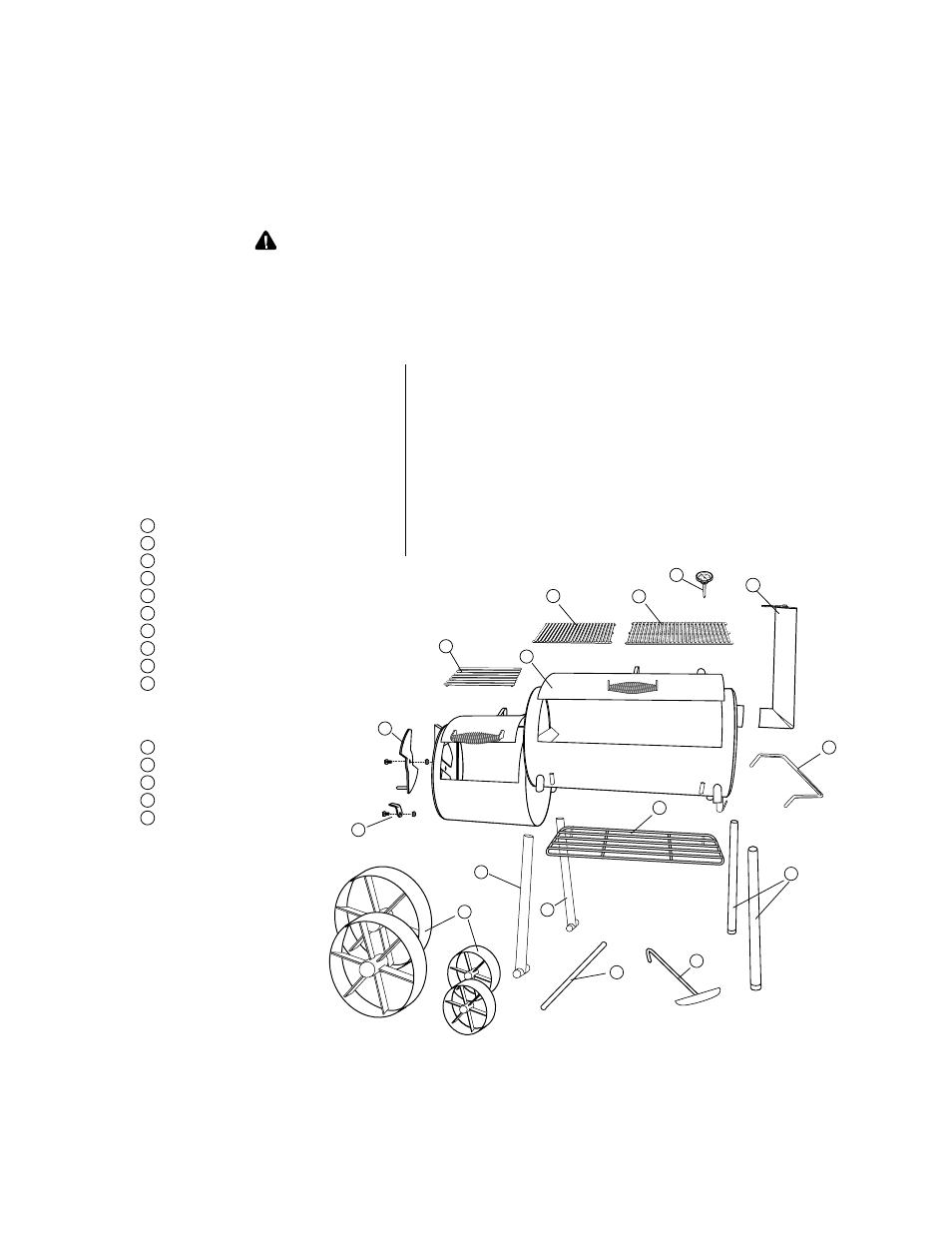

PARTS LIST:
1 Cooking chamber with attached Firebox
1 Air vent butterfly damper
1 Smokestack with damper
1 Cooking grill (15 1 ⁄
4
" x 12 7 ⁄
16
")
1 Cooking grill (15 1 ⁄ 4 " x 15")
1 Charcoal grate (9" x 14')
1 Front shelf
2 Legs with endcaps
2 Legs with axle receivers
2 52" wagon wheels
(with Cimarron) OR
2 16" wagon wheels
(with Cimarron Limited)
1 Firebox door latch
1 Firebox rake
1 Temperature gauge
1 End handle
1 Axle rod
Parts Bag Contains:
4 w" Washers
2 d" Axle caps
1
2
3
4
5
6
7
8
9
10
12
13
14
15
9
11
4
