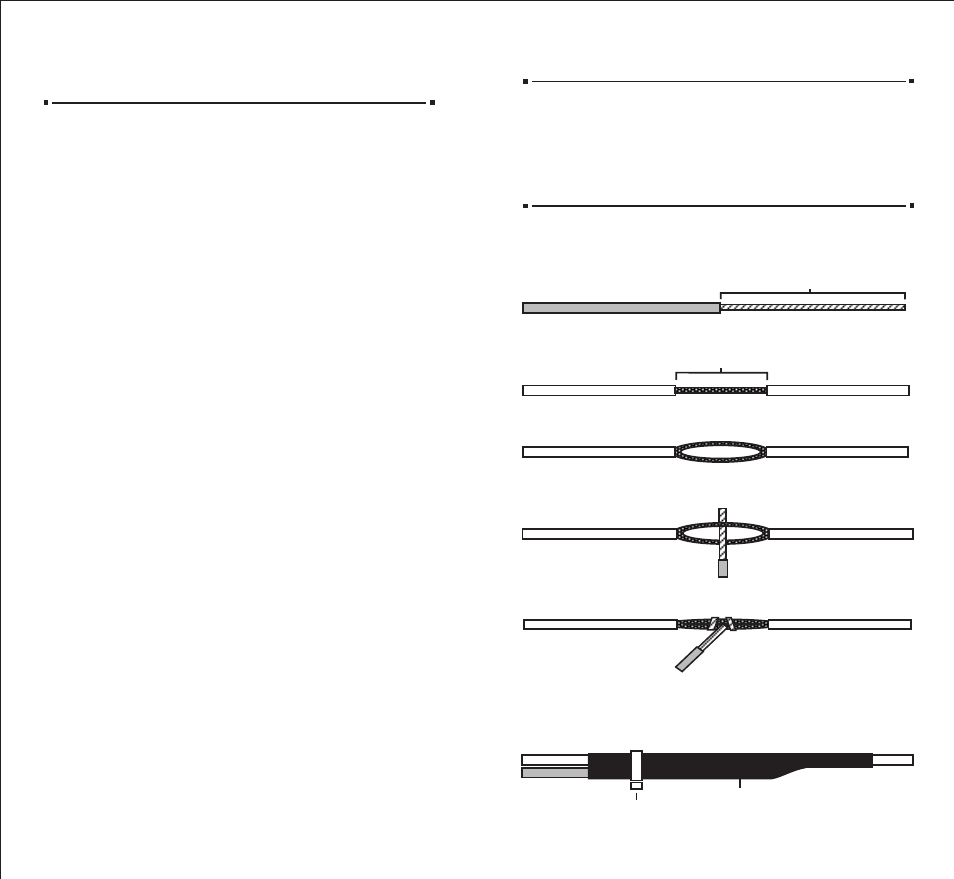

MAKING CONNECTIONS
1. Strip back two inches of insulation on the wire from the
remote starter.
2. Strip back one inch of insulation on the wire you need
to connect to.
3. Separate the vehicle wire as shown. Make the separation
large enough to fit the other wire through.
4. Insert the wire(s) from the starter through the hole as
shown. if two or more wires are inserted, wrap them in
opposite directions.
6. Use electrical tape to wrap. Be sure to cover the wire
about two inches on either side of the connection. First
pull the wire that you have just connected along side the
wire you connected to, tape and wire tie them together.
Use this method for all connections.
CAUTION: All wires must be wrapped with tape
and wire tied.
5. Wrap the wire around one side then the other and finally
around itself as shown.
Two Inches of Bare Wire
One Inch of Bare Wire
When testing for a positive or negative voltage, you must
use a computer-friendly test light (logic probe) or a volt/ohm
meter. Make sure to probe and test each wire before making
your connections.
Wire Tie
Electrical Tape
TESTING YOUR WIRES
NOTE: If it is necessary to cut a factory wire to make a
connection, see diagram on page 8.
1 2
3
VEHICLES WITH FACTORY
ANTI-THEFT SYSTEMS
Manufacturer Make/ Year Anti-theft
MALIBU 97+ PASSLOCK 2
MONTE CARLO 96-99 VATS
MONTE CARLO 2000+ PASSLOCK 2
FULL-SIZE PU 98+ PASSLOCK 2
S-10 98+ PASSLOCK 2
SAVANNAH 98+ PASSLOCK 2
SUBURBAN 98+ PASSLOCK 2
TAHOE 98+ PASSLOCK 2
VAN 98+ PASSLOCK 2
VENTURE 99+ TRANSPONDER
CHRYSLER CONCORD 98+ TRANSPONDER
(GREY KEY ONLY)
LHS 98+ TRANSPONDER
(GREY KEY ONLY)
SEBRING CONTV. 98+ TRANSPONDER
(GREY KEY ONLY)
DODGE 300M 99+ TRANSPONDER
(GREY KEY ONLY)
INTERPID 98+ TRANSPONDER
(GREY KEY ONLY)
NEON 2000+ TRANSPONDER
(GREY KEY ONLY)
FORD CONTOUR 97+ TRANSPONDER
(Some)
CROWN VIC 98+ TRANSPONDER
EXCURSION 2000+ TRANSPONDER
EXPEDITION 97+ TRANSPONDER
EXPLORER 97+ TRANSPONDER
FOCUS 2000+ TRANSPONDER
MUSTANG 98+ TRANSPONDER
F150/250 98+ TRANSPONDER
RANGER 99+ TRANSPONDER
TAURUS 96+ TRANSPONDER
WINDSTAR 2000+ TRANSPONDER
GMC DENALI 99+ PASSLOCK 2
ENVOY 99+ PASSLOCK 2
S-15 JIMMY 98+ PASSLOCK 2
SAFARI 98+ PASSLOCK 2
