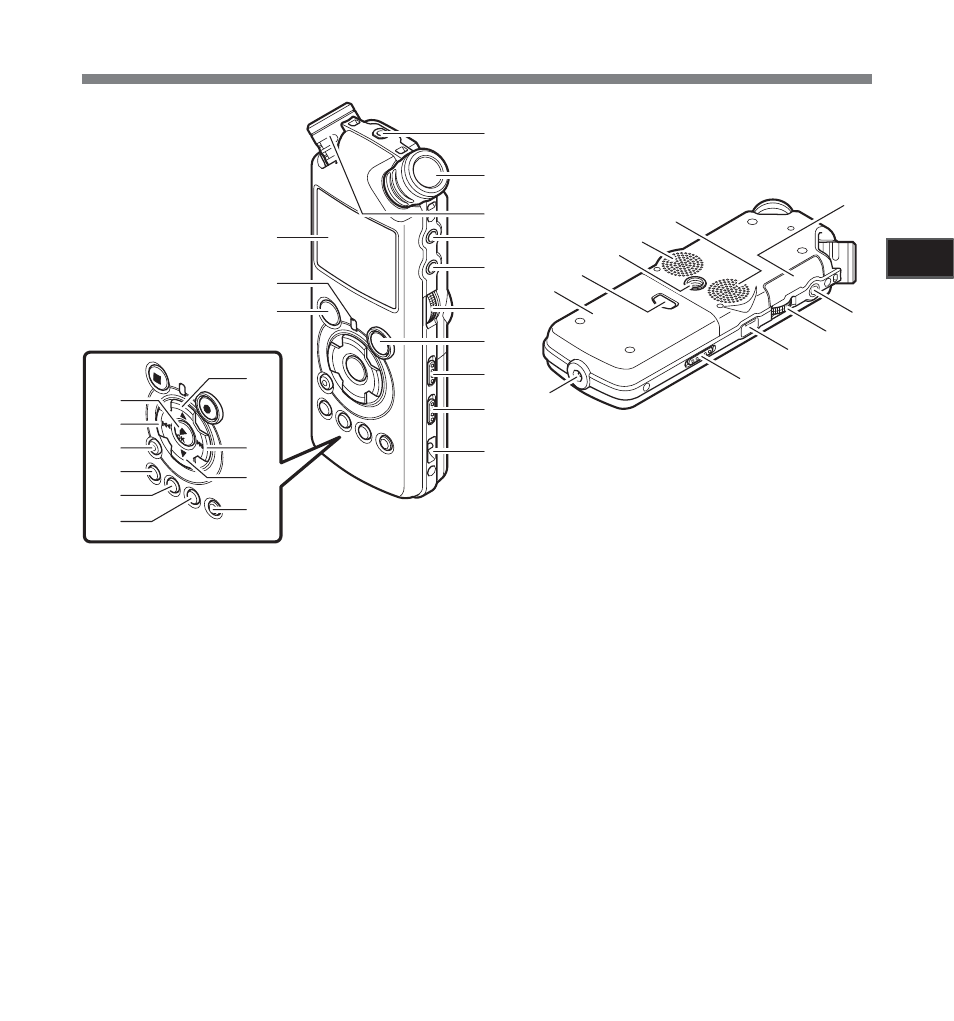

Identification of Parts
1 REMOTE jack
Connect the receiver for the exclusive remote control
set RS30W (optional). This enables operation of the
main unit’s record and stop functions through the
remote control.
2 Built-in stereo microphone (R)
3 Built-in stereo microphone (L)
4 LINE IN jack
5 MIC jack
6 REC LEVEL dial
7 REC s button
Recording indicator light (LED)
8 MIC SENSE HIGH/LOW switch
9 LOW CUT ON/OFF switch (Auto Gain Control)
0 Strap hole
! Display (LCD panel)
@ PEAK indicator light (LED)
# STOP 4 button
$ 2 button
% 9 button
^ 3 button
& LIST button
* MENU button
( A-B REPEAT button
) Fn button
- ERASE button
= 0 button
q `/OK button
w Card cover
e EAR jack
r VOLUME dial
t USB terminal
y POWER/HOLD switch
u Power jack
i Battery cover
o Battery cover release button
p Tripod socket
[ Built-in stereo speaker (R)
] Built-in stereo speaker (L)
