BEA 80.0021.02 - Manual (Page 4)

SIZE: DRAWN BY:

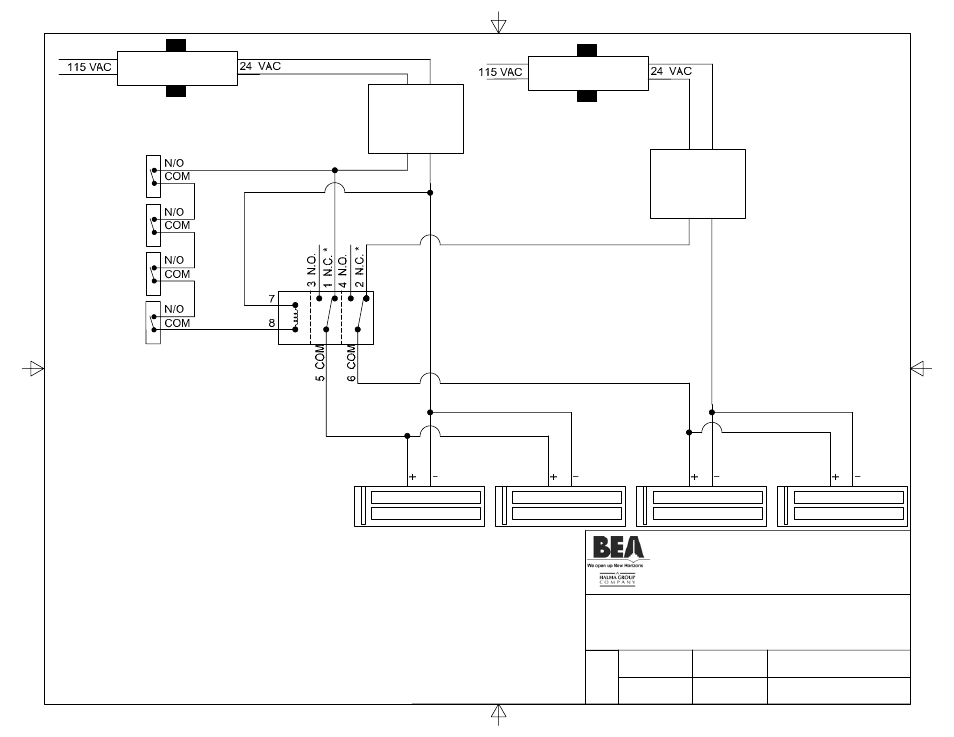

TITLE: FOUR MANUAL DOORS WITH
MAGLOCK (INTERLOCKED)
A
NOTES 1) DOOR POSITION SWITCH CONTACTS MUST BE OPEN WHEN DOOR IS CLOSED. DOOR POSITION SWITCH
CONTACTS MUST BE CLOSED WHEN DOOR IS OPEN.
2) DOORS WILL BE UNLOCKED UNTIL ONE DOOR IS OPENED.
**ISOLATION RELAY IS B.E.A. p/n 10REL24VDC
100 ENTERPRISE DRIVE
PITTSBURGH, PA 15275
PHONE: (412) 249-4100
FAX: (412) 249-4101
EMAIL: www.beasensors.com
REV BY:
KJG KJG
80.0029.02
SCALE: DATE:
NONE 22 MAY 2005
PART NO:
SHEET
1 OF 1
MAGLOCK
#1
MAGLOCK
#2
MAGLOCK
#3
MAGLOCK
#4
DOOR POSITION
SWITCH #4
DOOR POSITION
SWITCH #3
DOOR POSITION
SWITCH #2
DOOR POSITION
SWITCH #1
RELAY
24 V
TRANSFORMER
BRIDGE
RECTIFIER
~ ~
- +
BRIDGE
RECTIFIER
~ ~
- +
24 V
TRANSFORMER
IF AFTER TROUBLESHOOTING A PROBLEM, A SATISFACTORY SOLUTION CANNOT BE ACHIEVED, PLEASE CALL B.E.A., INC.
FOR FURTHER ASSISTANCE DURING EASTERN STANDARD TIME AT 1-800-523-2462 FROM 8AM - 5PM. FOR AFTER-HOURS,
CALL EAST COAST: 1-866-836-1863 OR 1-800-407-4545 / MID-WEST: 1-888-308-8843 / WEST COAST: 1-888-419-2564. DO NOT
LEAVE ANY PROBLEM UNRESOLVED. IF YOU MUST WAIT FOR THE FOLLOWING WORKDAY TO CALL B.E.A., LEAVE THE
DOOR INOPERABLE UNTIL SATISFACTORY REPAIRS CAN BE MADE. NEVER SACRIFICE THE SAFE OPERATION OF THE
AUTOMATIC DOOR OR GATE FOR AN INCOMPLETE SOLUTION.WEB: WWW.BEASENSORS.COM
