HRV ERV

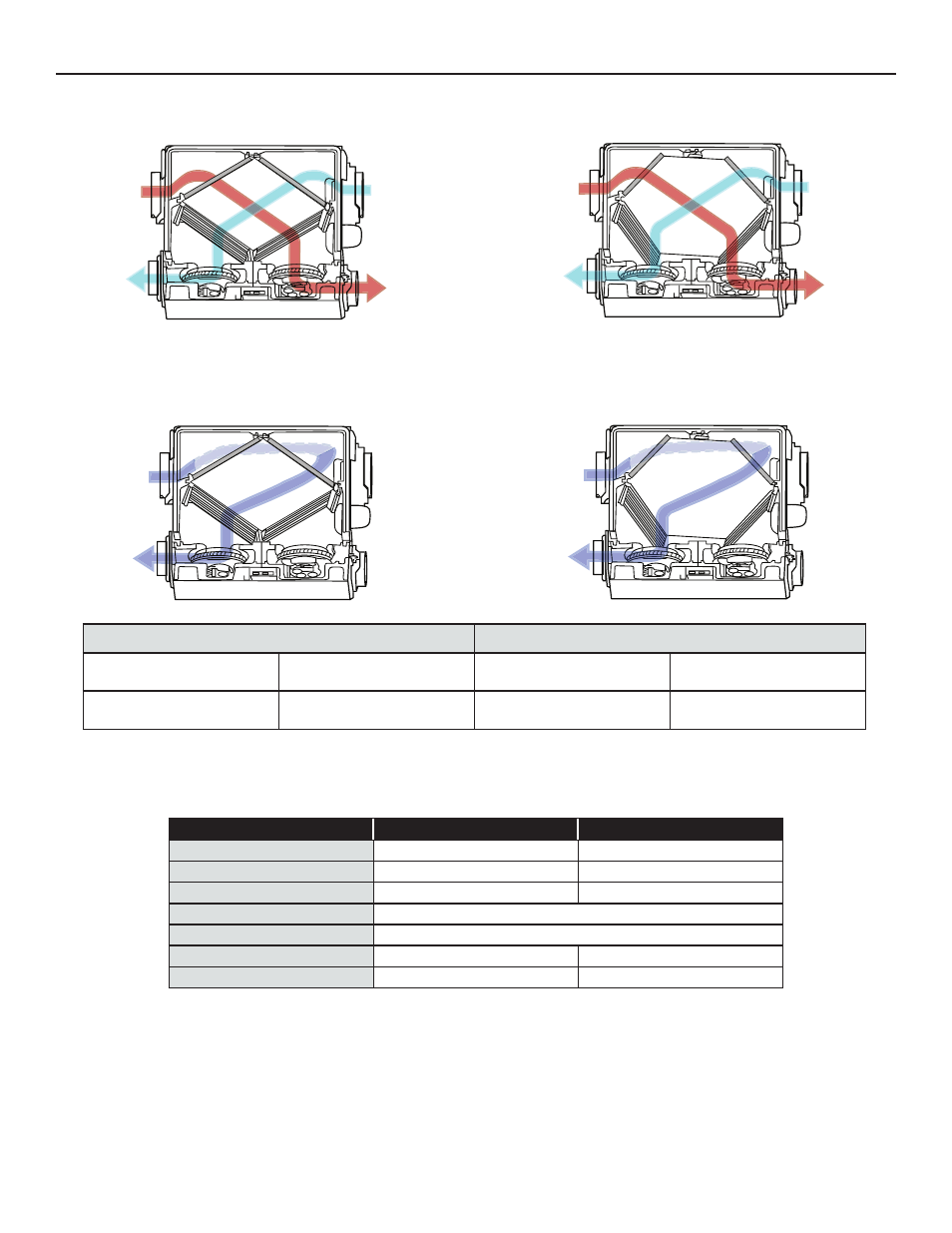

1. TECHNICAL DATA
1.1 A IR D ISTRIBUTION (N ORMAL O PERATION )
VF0039 VF0038
HRV ERV
1.2 A IR D ISTRIBUTION (R ECIRCULATION OR D EFROST M ODE )
VF0036 VF0037
- 4 -
E XHAUST AIR
FROM BUILDING
F RESH AIR
TO BUILDING
E XHAUST AIR
FROM BUILDING
F ILTERED AIR
TO BUILDING
E XHAUST AIR
FROM BUILDING
F ILTERED AIR
TO BUILDING
E XHAUST AIR
FROM BUILDING
F RESH AIR
TO BUILDING
F RESH AIR
FROM OUTSIDE
E XHAUST AIR
TO OUTSIDE
F RESH AIR
FROM OUTSIDE
E XHAUST AIR
TO OUTSIDE
1.3 S PECIFICATIONS
M ODEL HRV ERV
W EIGHT 42 lb (19 kg) 45 LB (20.4 KG )
O VAL P ORTS F IT 5” (127 MM ) DUCTS F IT 5” (127 MM ) DUCTS
D RAIN D IAMETER 1/2” (12 MM ) N/A
I NSTALLATION C HAINS , SPRINGS AND HOOKS ( PROVIDED WITH THE UNIT )
M OTOR S PEEDS H IGH AND LOW SPEED
E LECTRICAL SUPPLY 120 V, 60 H Z 120 V, 60 H Z
P OWER C ONSUMPTION 150 WATTS 160 WATTS
Outside Temperature HRV and ERV Defrost Cycles
Celcius (°C) Fahrenheit (°F) Defrosting (min.)
Operation time (min.) between
each defrost cycle
-5 to -27
-27 and less
23 to -17
-17 and less
9
10
23
22
