Page 15
4. Snap the assembled exterior hood on its backplate and secure with 2 provided screws
(no. 8 x 3/4” long).
3. Using 4 no. 8 x 1½” screws, mount the the exterior backplate to the exterior wall. Seal the
outline with caulking.
3.8 I
NSTALLING THE
T
ANDEM
T
RANSITION
K
IT
(
CONT
’
D
)
3.8.4
C
ONNECTING
T
ANDEM
T
RANSITION TO THE
D
UAL EXTERIOR
H
OOD
(
CONT
’
D
)

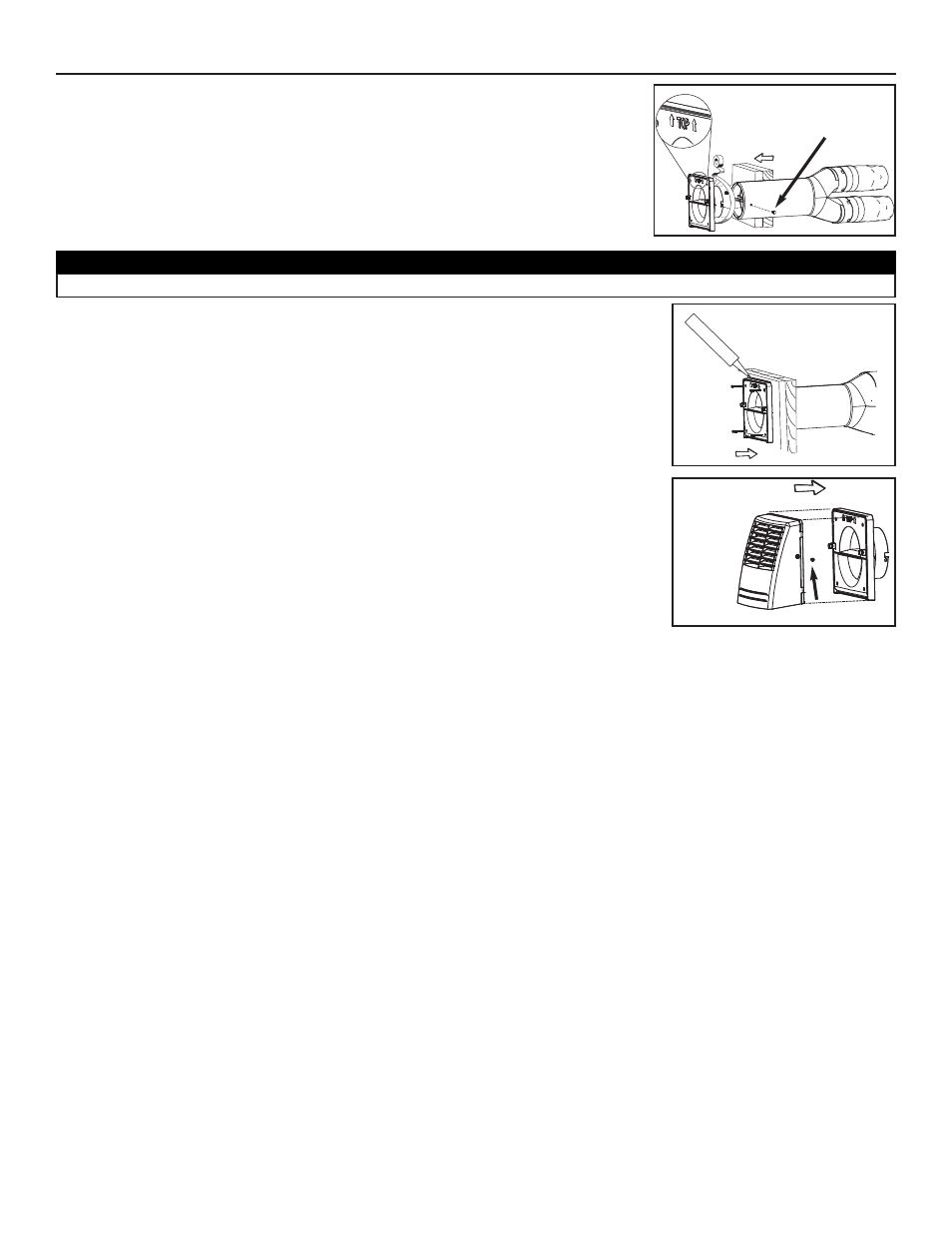

2. Join the end of the Tandem Transition to the rear of the exterior backplate. Secure with
2 Xmas tree pins and seal properly with duct tape.
3. INSTALLATION
(CONT’D)
VD0085
CAUTION
The exterior backplate must be installed with the word “TOP” pointing upward.
X
MAS TREE PIN
VD0086
VD0087
S
CREW
- 15 -
