The BPB26 and SSPB26 Patio Base are only for use
with Broilmaster Gas Grills. Before proceeding with
installation read the Owner’s Manual for the proper loca-
tion and minimum clearances to combustible materials
for your grill and patio base.
Verify that all parts listed in the exploded view of this
product have been included before beginning this in-
stallation.
Recommended Tools:
• Two adjustable wrenches or a socket set
• A medium Phillips screwdriver
• Pipe thread sealer or Teflon tape (for gas connec-
tions)
• Soapy water solution (to test for leaks)
Attach four 1/4-20 x 4" eyebolts (8) to the bottom of the
26" square post (7) using 1/4 - 20 x 3/4" bolts (5), 9/32
ID x 5/8 OD flat washers (1), 1/4 lock washers (2), and
1/4-20 hex nuts (3). Figure 1.
NOTE: The large rectangular cut out is located at the
front of the post near the top.
Fasten the bottom of the post to the cast iron patio
base (9) using 9/32 ID x 5/8 OD flat washers, 1/4 lock
washers, and 1/4-20 hex nuts. F
IGURE
2.
Anchor the cast iron patio base to your patio using
the two holes provided in the base. (Hardware not
included)
Note: Make sure that the large rectangular cut out is
facing in the direction that you want your grill to face.
F
IGURE
2.
Insert the stainless steel flex tube assembly into the
post.
The inlet side of the gas tubing may protrude from the
bottom of the patio base or through the large circular
hole in the back of the square post.
Note: Do not attempt to cut or alter the flex tube in any
way.
P
ATIO
B
ASE
A
SSEMBLY
1
2
3

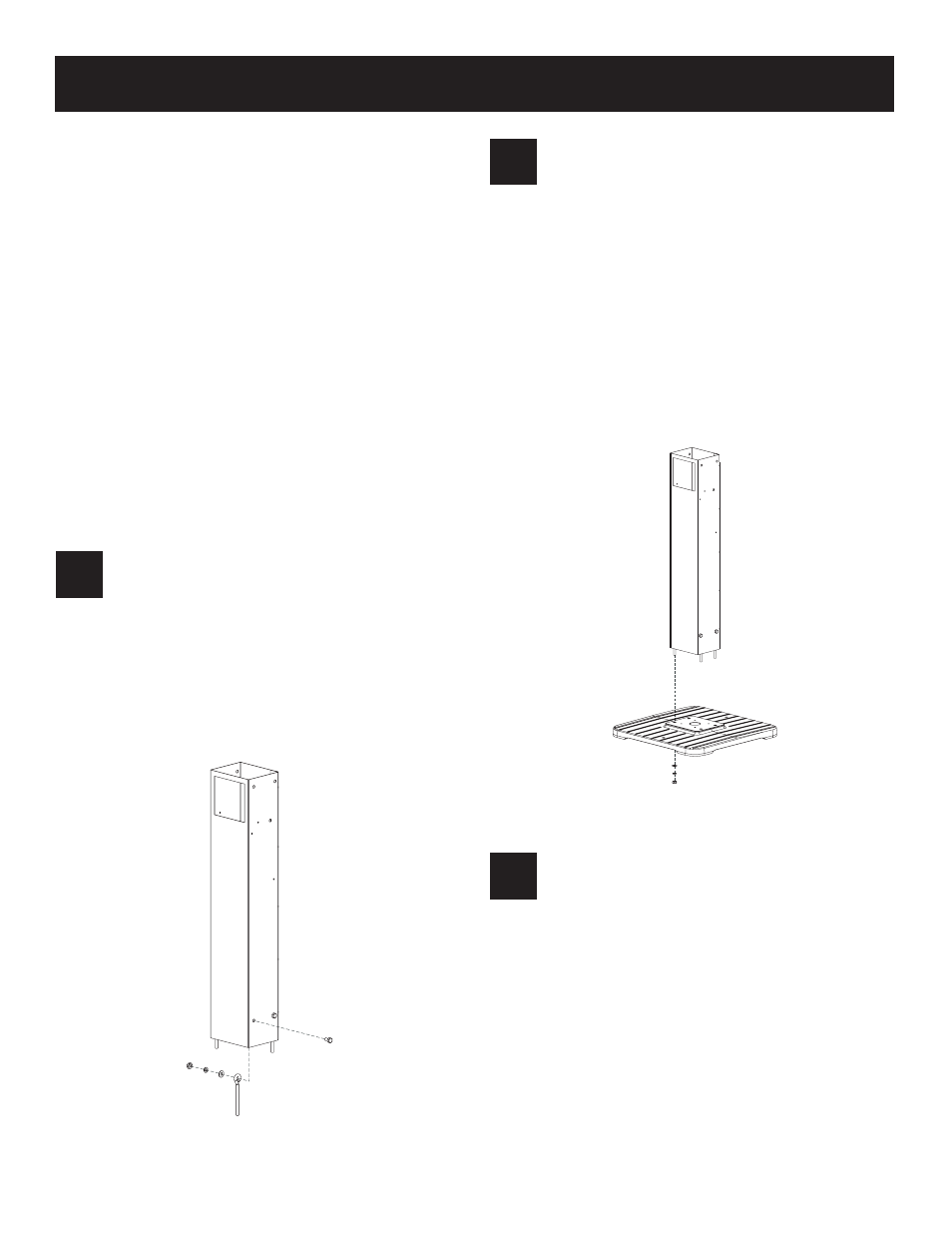

Figure 1
Figure 2
