PRODUCT DESCRIPTION

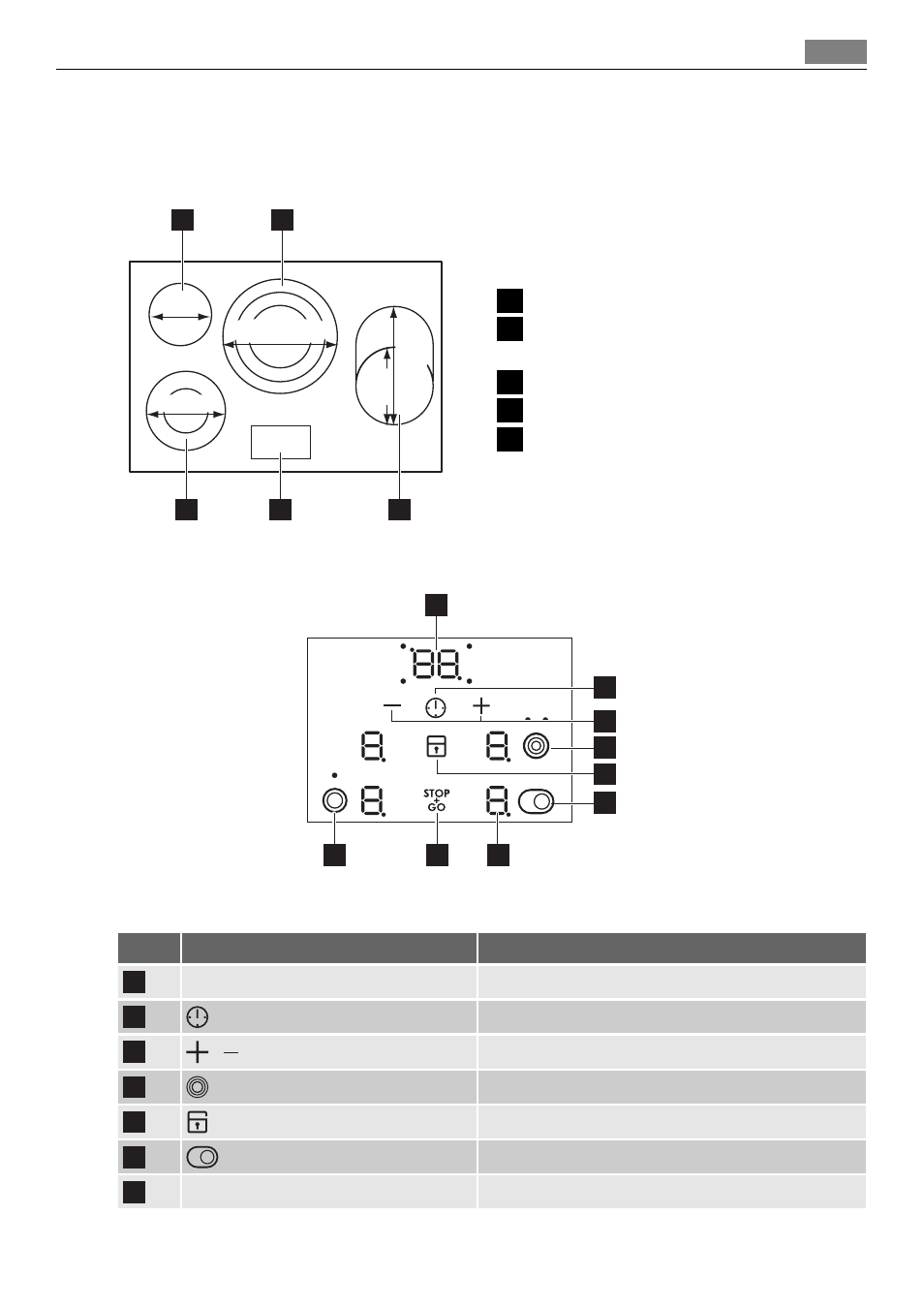

General overview
1 2
4 3 5
145
mm
120/180
mm
145/210/270
mm
170
mm
265
mm
1 Cooking zone 1200 W
2 Triple cooking zone 1050/1950/2700
W
3 Oval zone 1400/2200 W
4 Control panel
5 Double cooking zone 700/1700 W
Control panel layout
1
2
4
6
3
5
7 8 9
Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which
functions operate.
sensor field function
1 The timer display It shows the time in minutes.
2 It sets the cooking zone.
3 / It increases or decreases the time.
4
It activates and deactivates the outer rings.
5
It locks/unlocks the control panel.
6 It activates and deactivates the outer ring.
7 A heat setting display It shows the heat setting.
