© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802715 16
Step 7: Position and Level the Unit
Position unit so it has sufficient clearance for
installation and servicing. Refer to Figure 19.

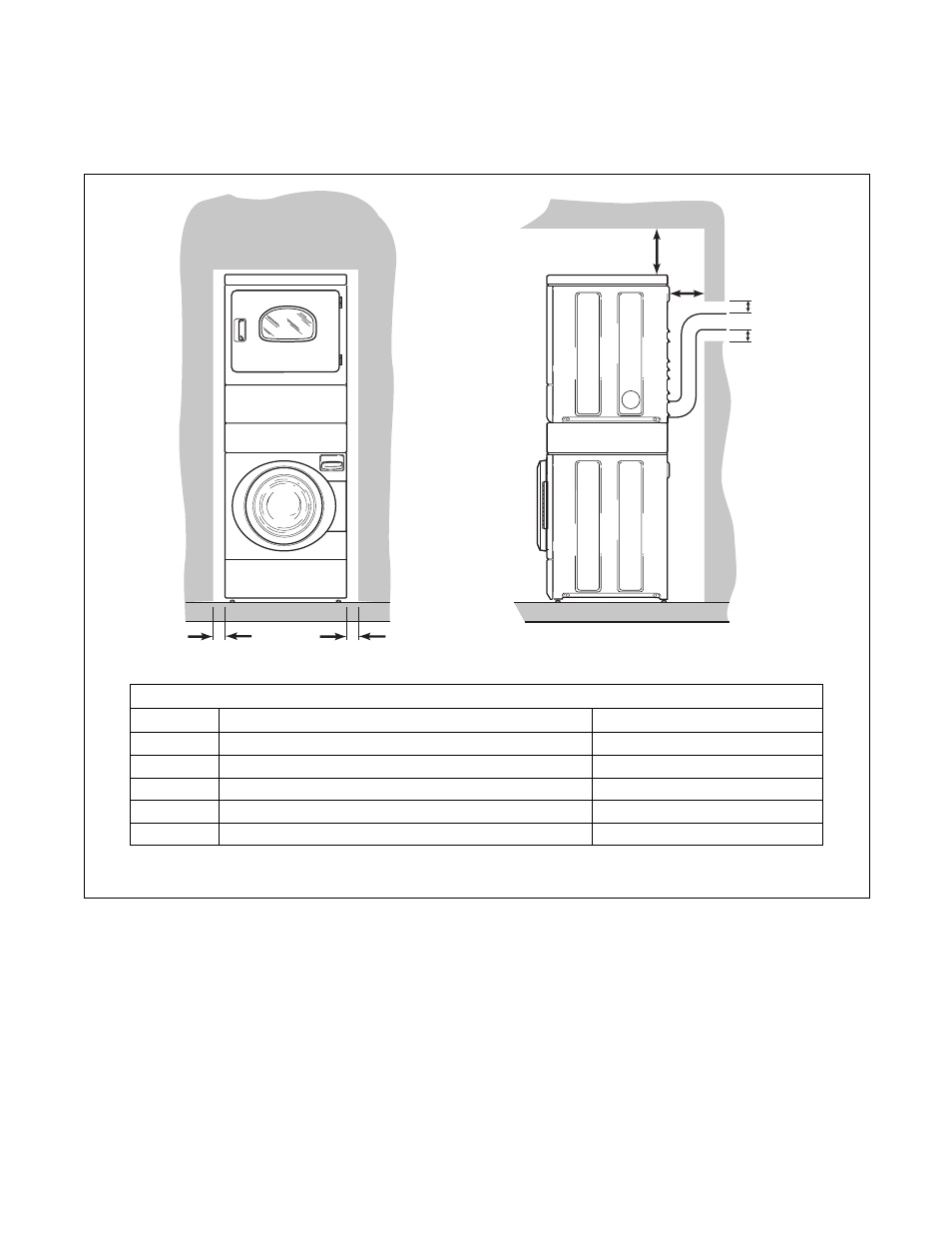

Figure 19
NOTE: Use of the dispenser drawer or unit doors
as a handle in the transportation of the unit may
cause damage to the dispenser or doors.
Place unit in position on a solid, sturdy and level floor.
Installing the unit on any type of carpeting, soft tile, a
platform or other weakly supported structures is not
recommended.
NOTE: Shaded areas indicate adjacent structure.
SWD795N
SWD795N
A B
C
D
E
E
Dryer and Exhaust Duct Clearances
Area Description Minimum Clearance
A Left Dryer Side 0 in. (0 cm)
B Right Dryer Side 1 in. (2.54 cm)
C Dryer Top 6 in. (15.24 cm)
D Dryer Rear 4 in. (10.2 cm)
E Exhaust Duct Clearance to Combustible Materials 2 in. (5.1 cm)
