13
?
Installation Of Your Refrigerator
NOTE: The refrigerator is supplied with a separ ate instruction manual. Please review prior to final
installation of your Compact Kitchen.
?
Disconnect the power supply. Failure to disconnect the appliance could result in electrical shock
or personal injury.
?

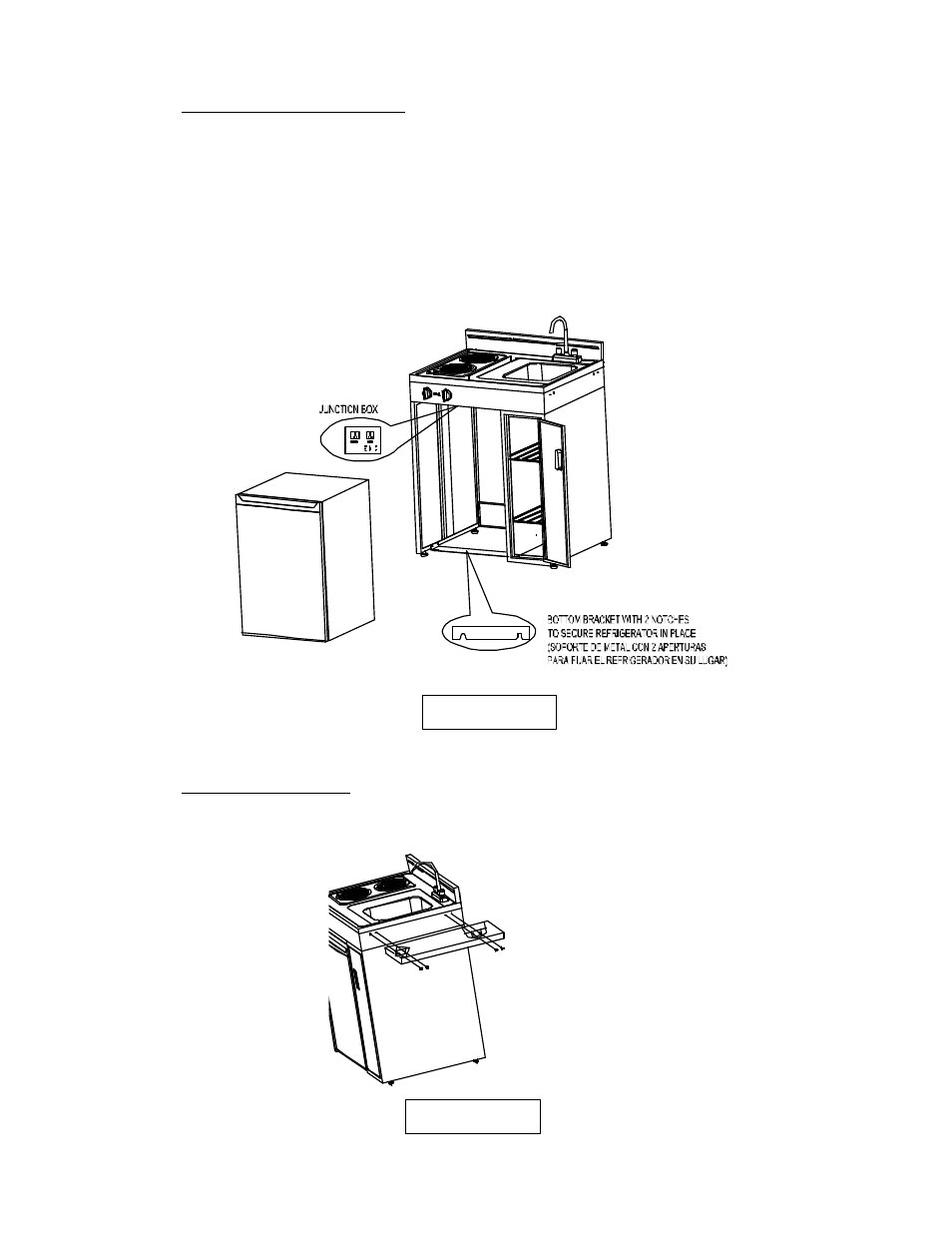

Connect the Refrigerator power supply cord to the receptacle in the junction box located at the
back of kitchen cabinet under the countertop as shown in Figure No. 6.
?
Slide the refrigerator into the kitchen cabinet by slightly lifting the rear part of refrigerator. Make
sure the power supply cord is not kinked or damaged under the refrigerator .
?
Secure refrigerator leveling legs in place using the bottom bracket notches as shown in Fi gure
No. 6.
?
Installation Of Side Tray
NOTE: Side tray is not a standard supplied part. If you need it, please contact Avanti Service Center
to buy it using the form provided.
Figure No. 6
Figure No. 7
