The Video Setup Window

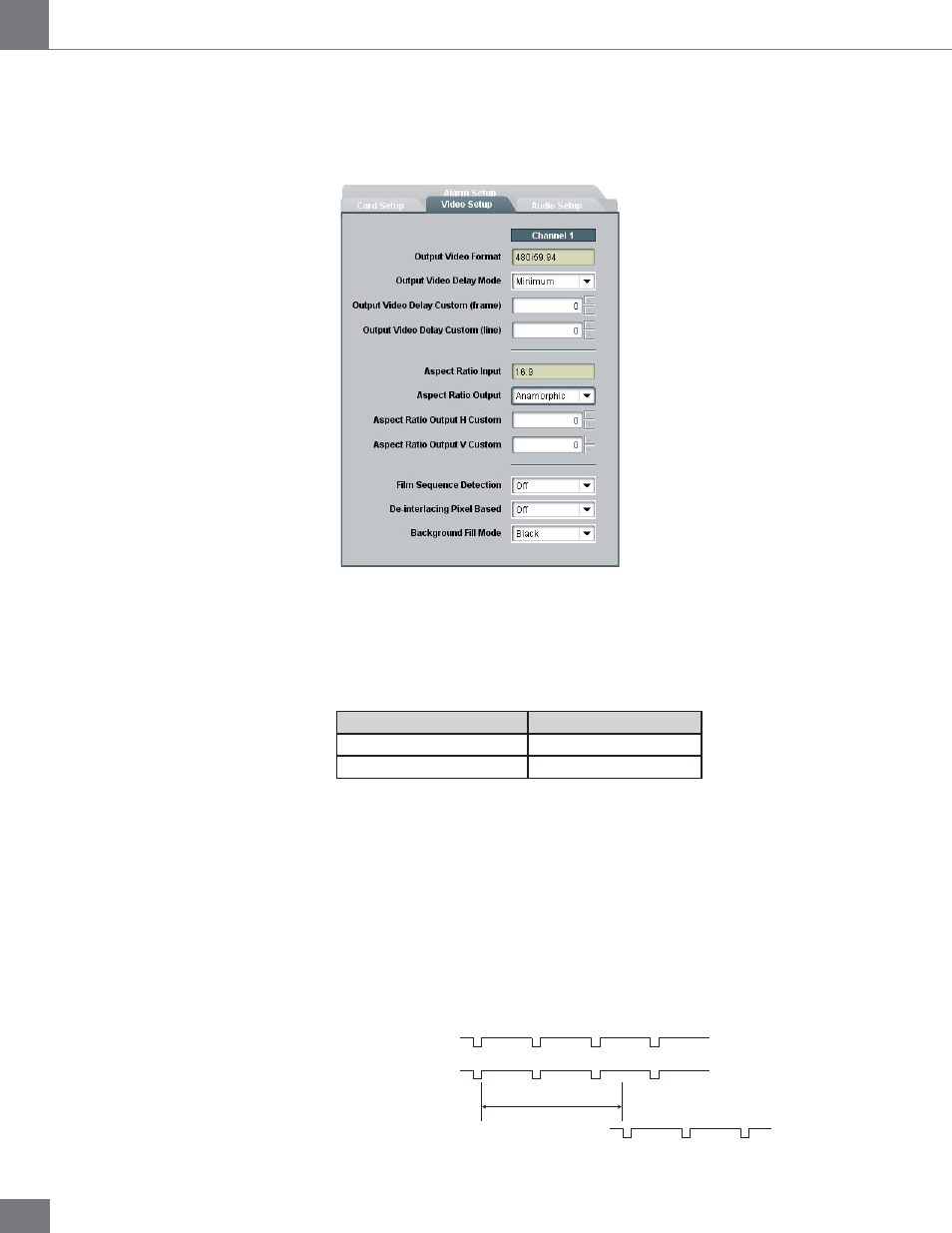

The Video Setup window allows the configuration of video parameters
of the XVC-1001-DC
Output Video Format
The Output Video Format field displays the video format at which the
incoming video signal will be downscaled. The output video format is
automatically set by the XVC-1001-DC to match the frame rate of the
video input.
Input Video Format Output Video Format
720p59.94, 1080i59.94 480i59.94
720p50, 1080i50 576i50
Output Video Delay Mode
The delay between the reference signal and the video output can be
specified by the user. Two modes area available. Select from:
• Mimimum
• Custom
Minimum: XVC-1001-DC outputs the video as soon as the processing
of the input video is completed, regardless of the reference signal. The
length of the delay depends exclusively on the processing cores and may
vary slightly with operating parameters and video modes setttings.
Input
Reference
Minimum Delay output
Processing Delay
