3
NATURAL G20
MAXIMUM HEAT INPUT 5kW 5.8kW
Thermostat Bypass 100 or 120 120 or 140
Main Burner Injector 285 330
Pilot Injector N35 N35
Inlet Pressure G20 20mbar 20mbar
PROPANE G31
MAXIMUM HEAT INPUT 5kW (357g/h) 5.8kW (414g/h)
Thermostat Bypass 60 or 80 80 or 100
Main Burner Injector 180 200
Pilot Injector L23 L23
Inlet Pressure 37mbar 37mbar
Burner Pressure 28mbar 32mbar

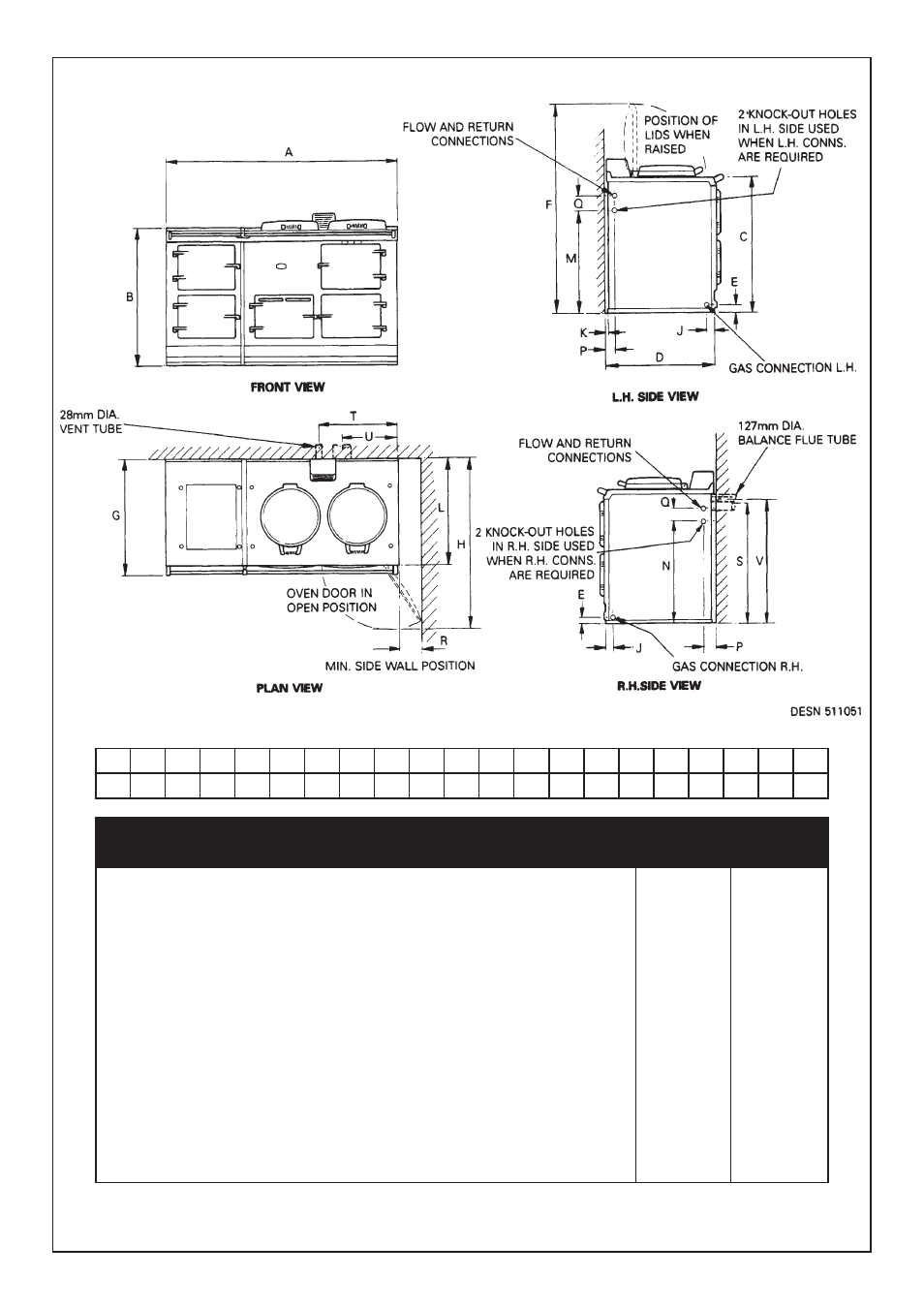

Models GE and GEB Balanced flue GE GEB
A B C D E F G H J K L M N P Q S T U V
mm 1487 889 851 679 41 1330 756 1125 39 3 698 632 591 51 67
R
116 770 484 328 828
For Natural Gas the gas valve outlet pressure is non-adjustable, BUT for reference purposes only. A pressure
drop of 1-2mbar can be observed between inlet and outlet pressures on a cold appliance.
V = VENT PIPE
S = FLUE PIPE
