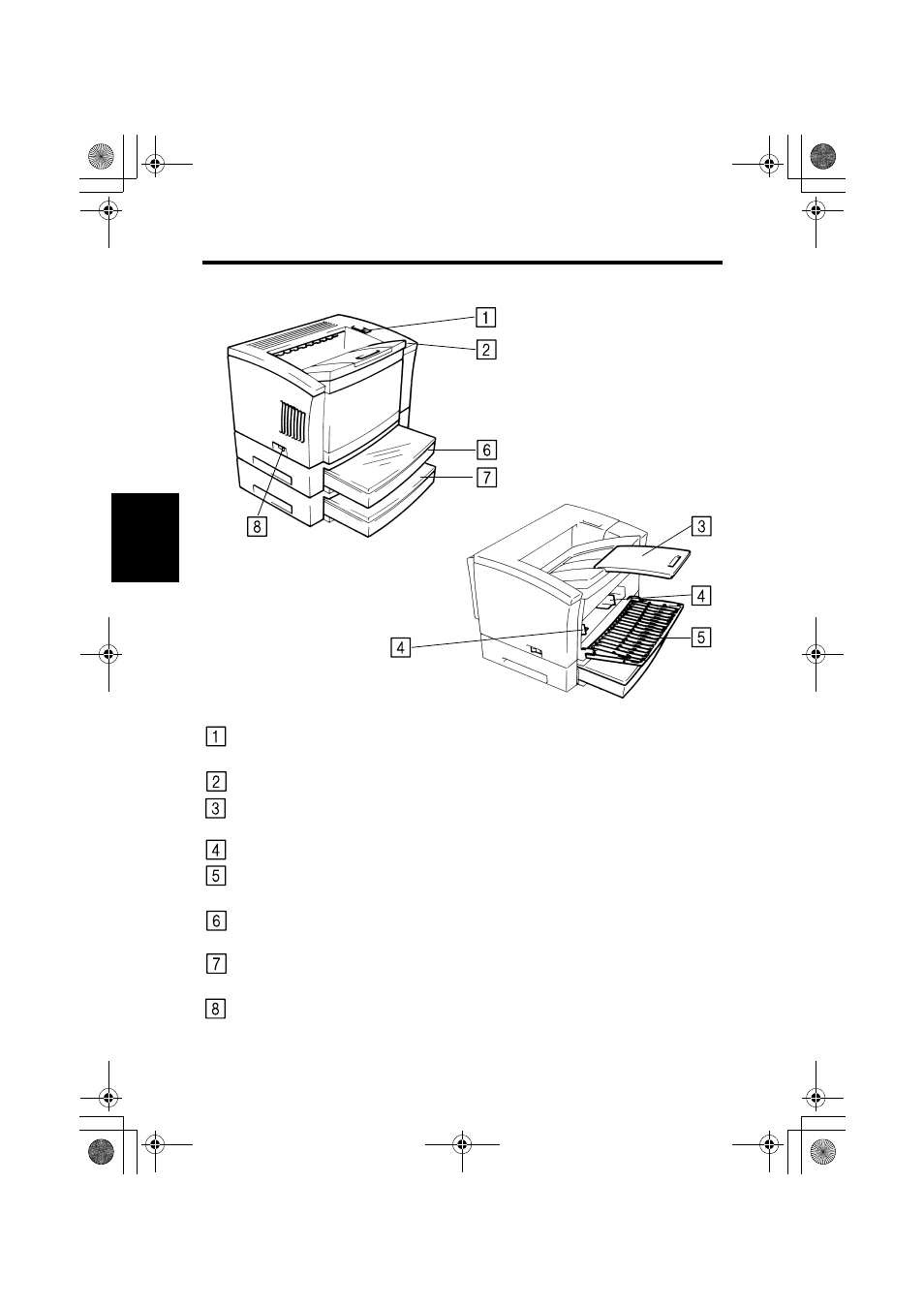

1. Parts of the Printer
Upper Unit Lock
Release Lever:
Use to open the Upper Unit.
Power Indicator:
Light indicates when the Printer is turned ON.
Print Tray:
Prints are output from the Printer, face down onto this tray
which can hold up to 500 sheets of standard paper.
Paper Guides:
Slide the guides to secure the paper stack.
Paper Feeding Tray:
(Tray)
Capable of holding up to 150 sheets of
A4 (8.5"
× 11")
paper.
Cassette 1:
Capable of holding up to 250 sheets of standard-size paper.
(
A4, A3, B4 or 8.5"
Ч 11", 11" Ч 17", 8.5" Ч 14" )
Cassette 2:
(option)
Capable of holding up to 250 sheets of standard-size paper.
(
A4, A3, B4 or 8.5"
Ч 11", 11" Ч 17", 8.5" Ч 14")
Power Switch:
Use to turn the Printer ON and OFF.
