LOCKSET FUNCTIONS
Page 5 5400LN Series Cylindrical Lock

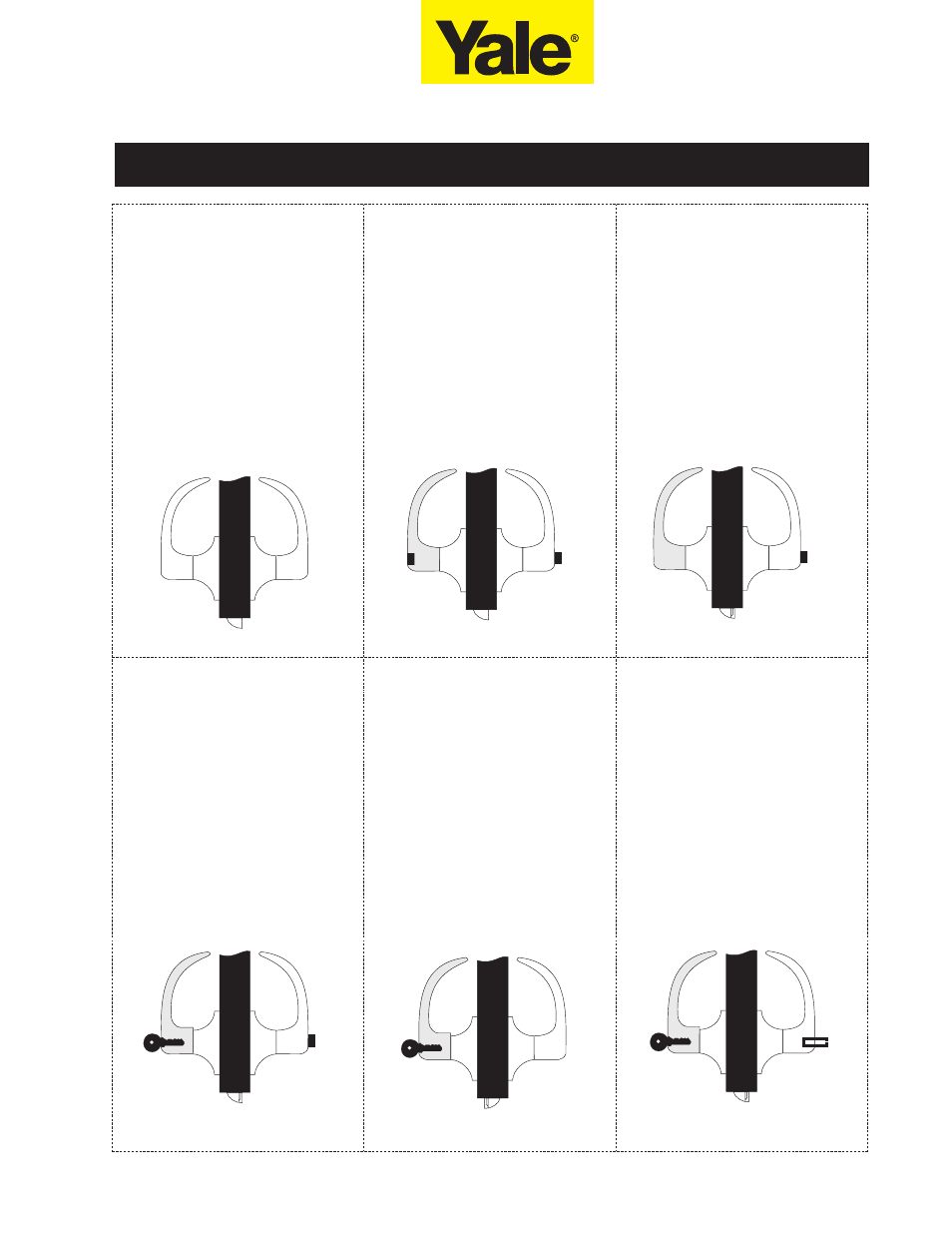

* Lever handles are Free-Wheeling in locked position. Shaded area denotes Free-Wheeling lever.
5401LN (F75) 5402LN (F76) 5403LN (F77)
Passage or Closet Lock
• For doors that do not require locking.
• Either lever operates latchbolt at all
times.
Privacy Bedroom or Bath Lock
• For lavatory or other privacy doors.
• Either lever operates latchbolt unless
outside lever is locked by pushbutton
inside.*
• Button automatically releases when
inside lever is turned or door is closed.
• Emergency release in outside lever.
Emergency key supplied.
(PN 14-5302-1053-048)
• Inside lever always active.
Patio or Privacy Lock
• For exit doors with limited entry.
• Deadlocking latchbolt.
• Either lever operates latchbolt unless
outside lever is locked by pushbutton
inside.*
• Button automatically releases when
inside lever is turned or door is closed.
• Inside lever always active.
Outside Inside Outside Inside Outside Inside
5404LN (F82) 5405LN (F86) 5406LN (F92)
Entry Lock
• For entrance or office doors.
• Deadlocking latchbolt.
• Either lever operates latchbolt (except
when outside lever is locked from
inside).*
• Pushing button in inside lever locks
outside lever. (Automatically releases
when inside lever is turned or key is
rotated in locked outside lever.)
• Latchbolt is operated by key in outside
lever or by rotating inside lever.
• Inside lever always active.
Storeroom or Closet Lock
• For use on storeroom, utility, and exit
doors.
• Deadlocking latchbolt.
• Latchbolt operated by lever inside, key
in outside lever.
• Outside lever always locked.*
• Inside lever always active.
Service Station Lock
•
Deadlocking latchbolt.
• Either lever operates latchbolt.
• Pushbutton in inside lever locks outside
lever. (Automatically releases when
inside lever is turned, door is closed or
key is rotated in outside lever, except
when slotted pushbutton is rotated 90˚
clockwise to retain outside lever in
locked position.)*
• Latchbolt operated by key in outside
lever, inside lever always active.
