Setting Up and Installing Your Kit
NOTE: The SIRIUS® signal can be received and
processed virtually anywhere as long as there
are no obvious satellite signal obstructions such
as high terrain, trees, overhangs, etc.
1. Cabling Interconnections
You can begin to enjoy Sirius® Satellite Radio as
soon as the Shuttle and home Kit installation are
complete. Set up your Audiovox Shuttle using the
following installation instructions, or enlist the help
of a professional installer.
2. Installing/Positioning the Antenna
For best reception, the supplied antenna should
be placed near a window; some repositioning may
be required to achieve optimum results. The
following guidelines are recommended:
a. In a major city, where Sirius ground repeaters
are present, you can usually place the antenna
away from a window and still achieve the
desired results.
-5-

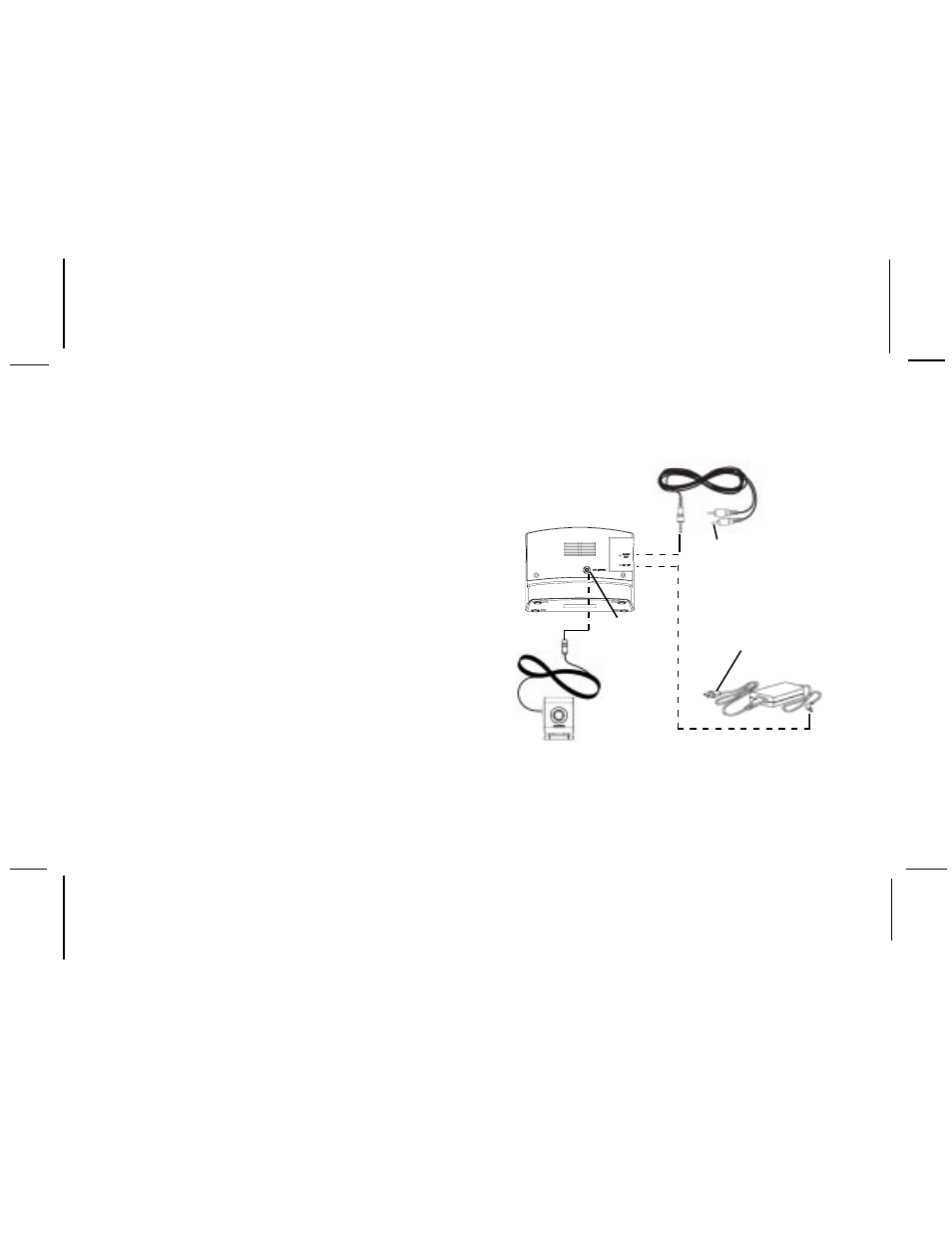

Interconnect Diagram
DC POWER
ADAPTER
AUDIO
CABLE
SHUTTLE CRADLE
HK1
TO AUXILIARY AUDIO
INPUT OF RADIO OR
ENTERTAINMENT
SYSTEM
TO AC WALL
OUTLET
SHUTTLE
ANTENNA
SAT. RF
CONNECTOR
