Setting up Your
Dialogue VCO
There are three steps involved in set-
ting up your Dialogue VCO.
• Insert four AA rechargeable
NiCad batteries for back-up in
case of AC power outage.
• Decide if you want the phone to
sit on a desk or hang on the wall.
• Connect the telephone components.
Installing the Backup Batteries
If there is a power outage, the
Dialogue
VCO will operate for 4 - 8
hours with four AA rechargeable
NiCad batteries (not included). If the
phone is not in use, the batteries will
stay charged for several months.
To Install New Batteries:
1. Slide open the battery compart--
ment cover on the bottom of the
telephone (Figure 3).
2. Install four fresh AA recharge-
able NiCad batteries. Be sure
to observe battery polarity as
imprinted on the base of the
compartment.
Connecting for Desk or Wall Mount
Set the dial mode switch to T (tone)
if you have touch tone service.
Set the switch to P (pulse) if you have
rotary dialing.
Desktop Use:
1. Connect the telephone line cord
and the handset cord to the
telephone as shown in Figure 4.
2. Plug the AC adapter into an
electric outlet and into the tele-
phone as shown in Figure 4.
SE LE CT SPA CE BA CK SPA CE
RE LA Y AU TO AN S RE L MG S PO WE R LE D
SIG NA L LE D
M! M2 M3 M4 M5 SH IFT
Figure 4 - Connecting the Components
MANUAL
AUTO
Insert
batteries
here
Press in
here
to open
battery
compart-
ment

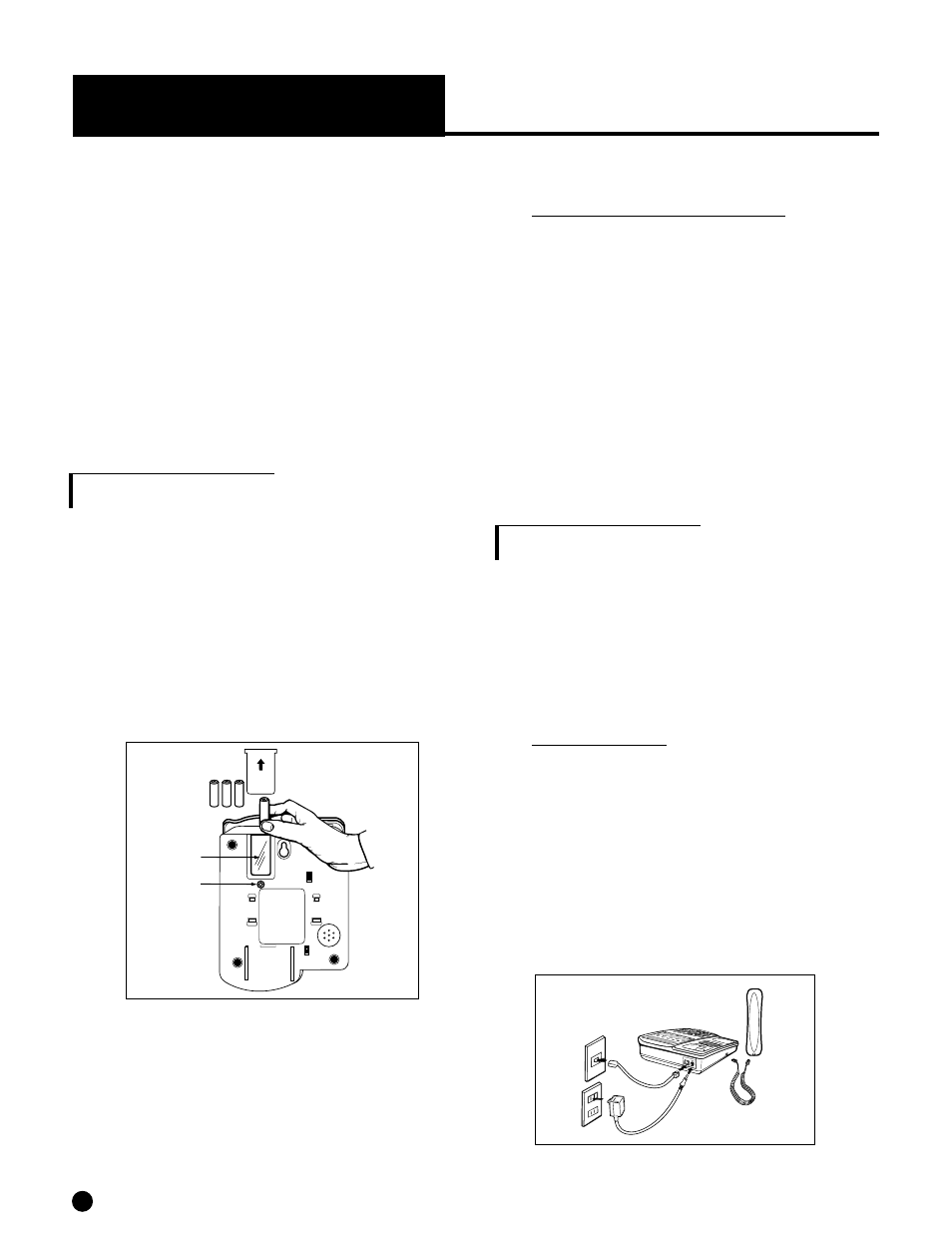

Figure 3 - Accessing the Batteries
4
