TWIN ELL
MODEL NUMBER:

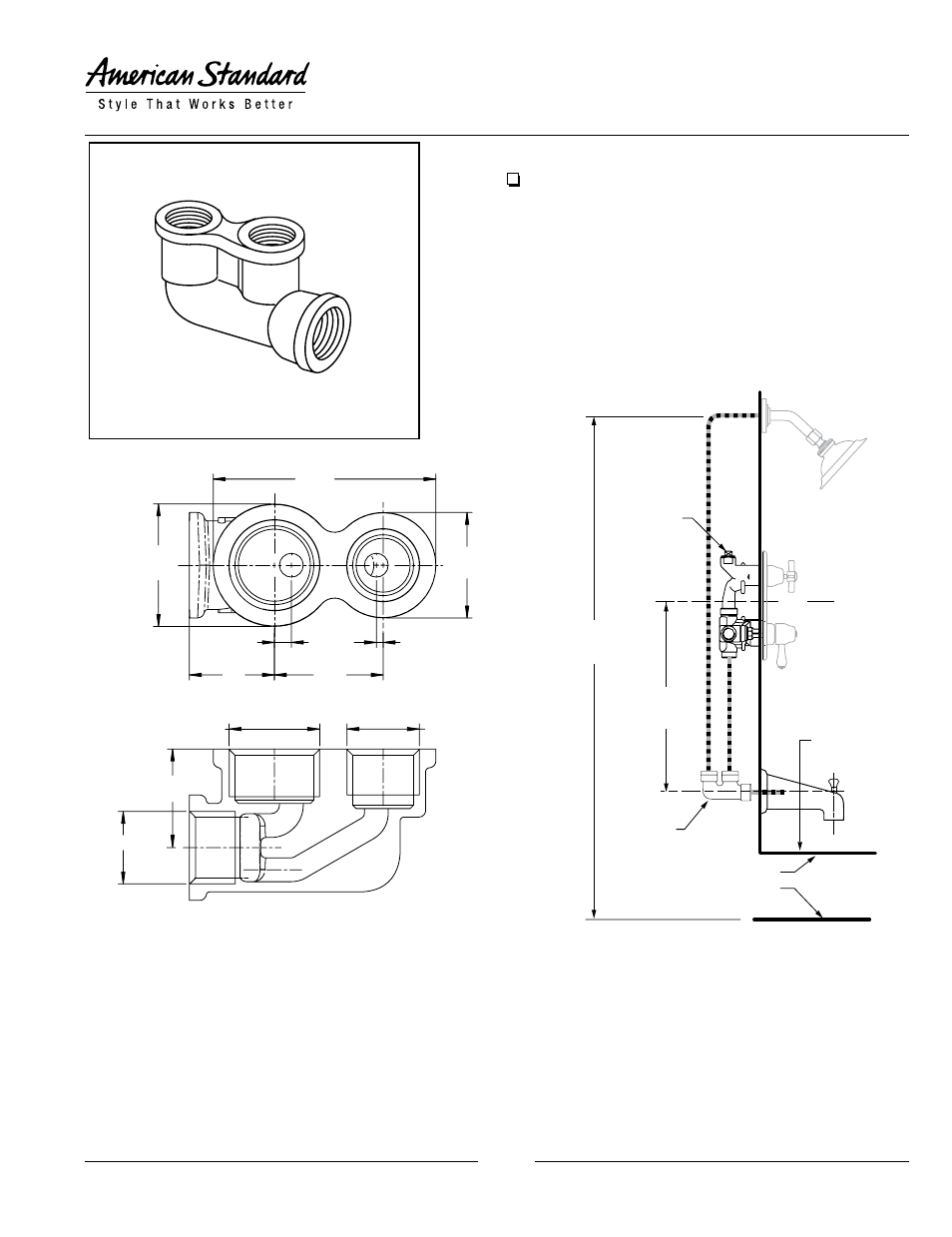

8888.120 TWIN ELL
• 3/4" NPT inlet 1/2" NPT outlets. For use with Thermostatic
Valve in Bath/Shower installations with a diverter spout.
• Cast Brass body
3/4" NPT
FROM VALVE
TO TUB
SPOUT
1/2" NPT
TO SHOWER
1/2" NPT
1-1/8"
(29mm)
3/16"
(5mm)
1/16"
(2mm)
2-1/2"
(66mm)
1-1/4"
(32mm)
1-3/8"
(36mm)
dia.
1-1/4"
(31mm)
dia.
1"
(25mm)
IMPORTANT: WHEN NOT USING A
DIVERTER SPOUT A SEPARATE
DIVERTER VALVE MUST BE USED.
TWIN
ELL
TOP OF TUB RIM
BOTTOM OF TUB
SHOWER
PORT
MUST BE
PLUGGED
C/L
4"
(102mm)
18"
(457mm)
80"- 86"
(2032 - 2184mm)
