11 AXIS 216FD/FD-V - Accessing the Camera
Adjusting the image

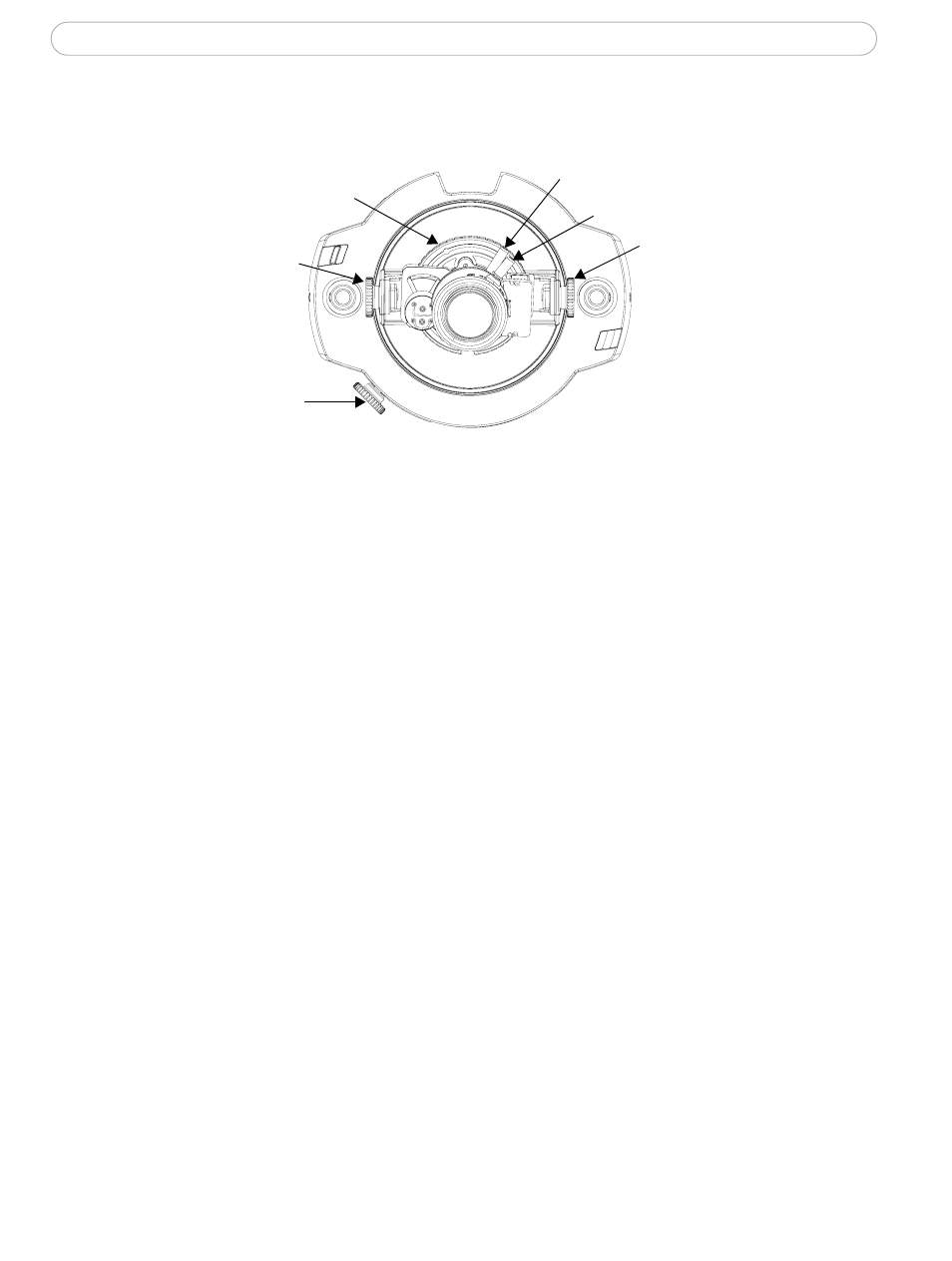

Image Focus
Zoom puller
Tilt
screw
adjustment
Tilt
screw
adjustment
puller
balance
ring
Locking screw
1. Open the Live View page in the Web interface and make the following adjustments on
the camera:
2. Loosen the locking screw and tilt adjustment screws.
3. Turn the lens to the desired position.
4. Once satisfied, gently tighten the locking screw and tilt adjustment screws to secure the
camera’s position.
5. Turn the image balance ring to set the horizontal position.
6. Open the Focus Adjustment page in the Web interface under Basic Configuration >
Focus and follow the on-screen instructions. Use the image window to adjust the focus
and zoom.
• To set the focus and zoom, loosen the zoom and focus pullers counterclockwise and
rotate the rings.
• Lock the focus and zoom pullers in position by rotating the screws clockwise.
