Press the arrow button at the top right of the case to open the front I/O door. Do
not force the door open. Press the arrow button again to close the door.

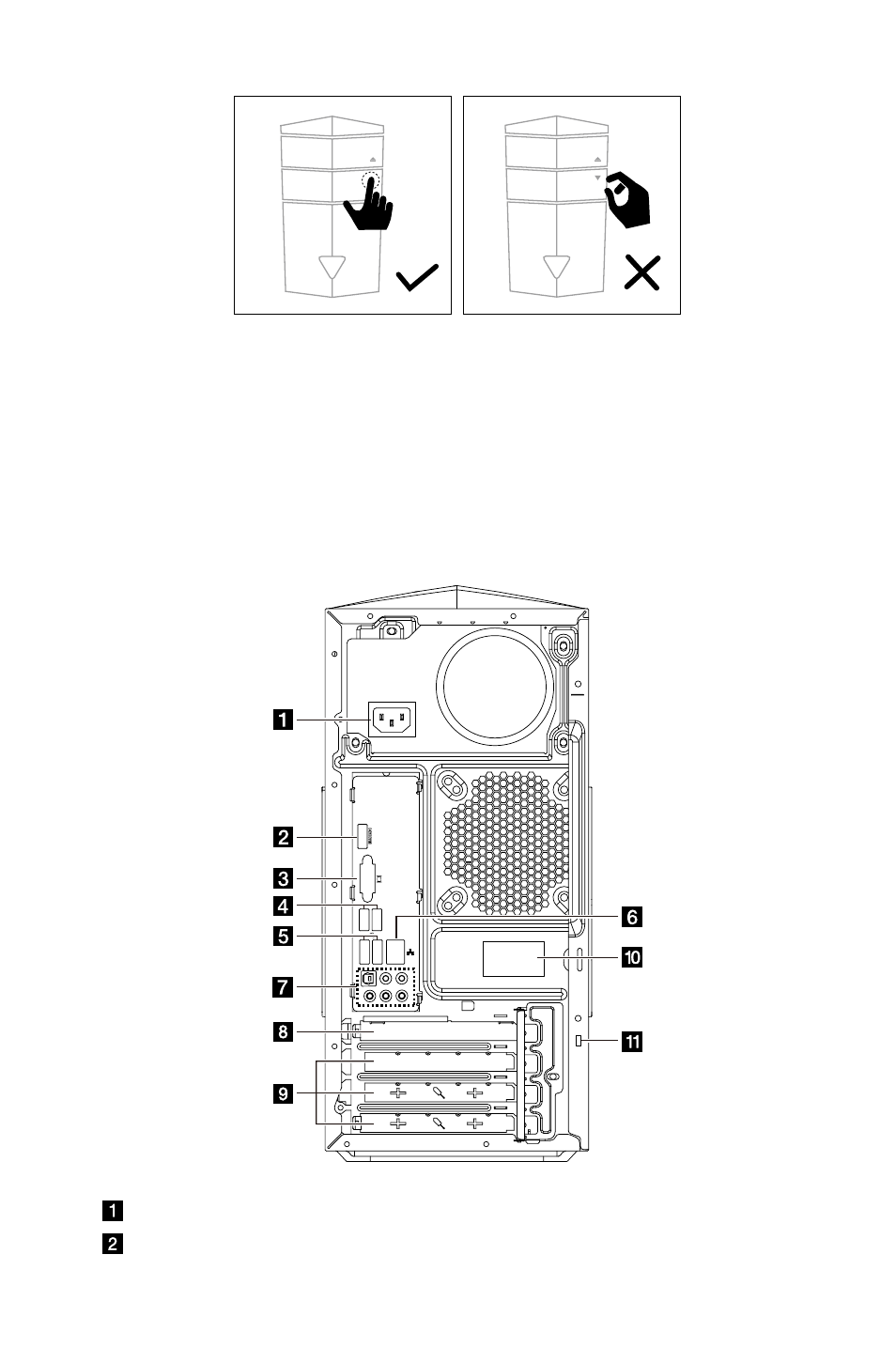

Rear view of the chassis
(If the rear view configuration shown in this chapter is different from the rear of your
computer, please refer to the rear of your computer.)
X310
Power connector
HDMI connector (selected models only)
