Miix 2 10 Hardware Maintenance Manual

1120 Keyboard dock speaker (on select models)

For access, remove these FRUs in order:
• “1100 Keyboard dock back cover (on select models)” on page 43
• “1110 Docking board (on select models)” on page 44

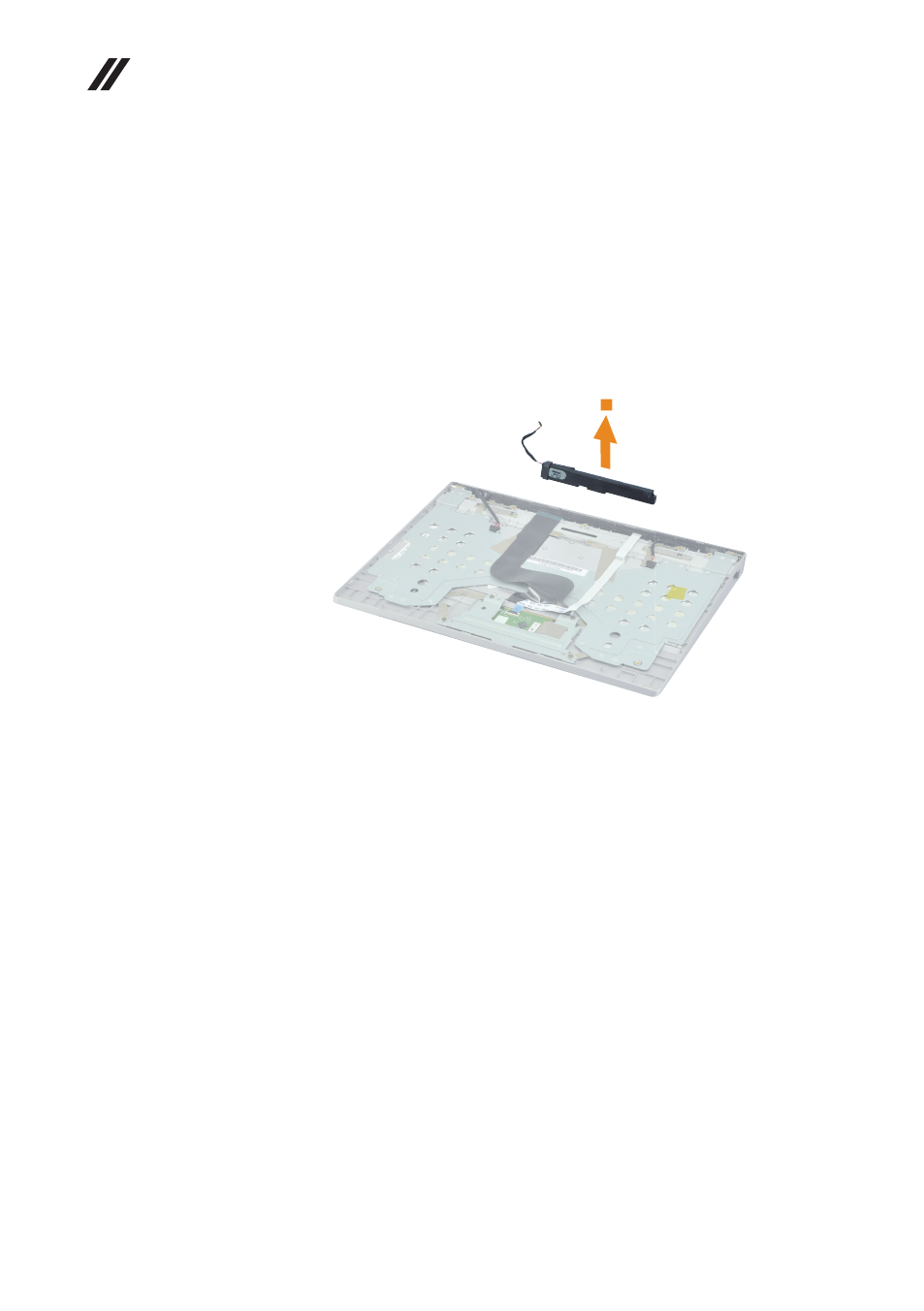

Figure 12. Removal steps of keyboard dock speaker (on select models)

Remove the keyboard dock speaker in the direction shown by arrow

1

.

1
