1150 LCD front bezel
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1020 Dummy card (Optional)” on page 35
• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot
compartment cover” on page 36
• “1040 Hard disk drive” on page 37
• “1050 Optical drive” on page 40
• “1060 DDR3L SDRAM” on page 41
• “1070 Mini PCI Express Card for wireless LAN/WAN” on page 42
• “1080 Keyboard” on page 44
• “1090 Keyboard bezel” on page 46
• “1100 System board” on page 48
• “1110 LCD unit” on page 51

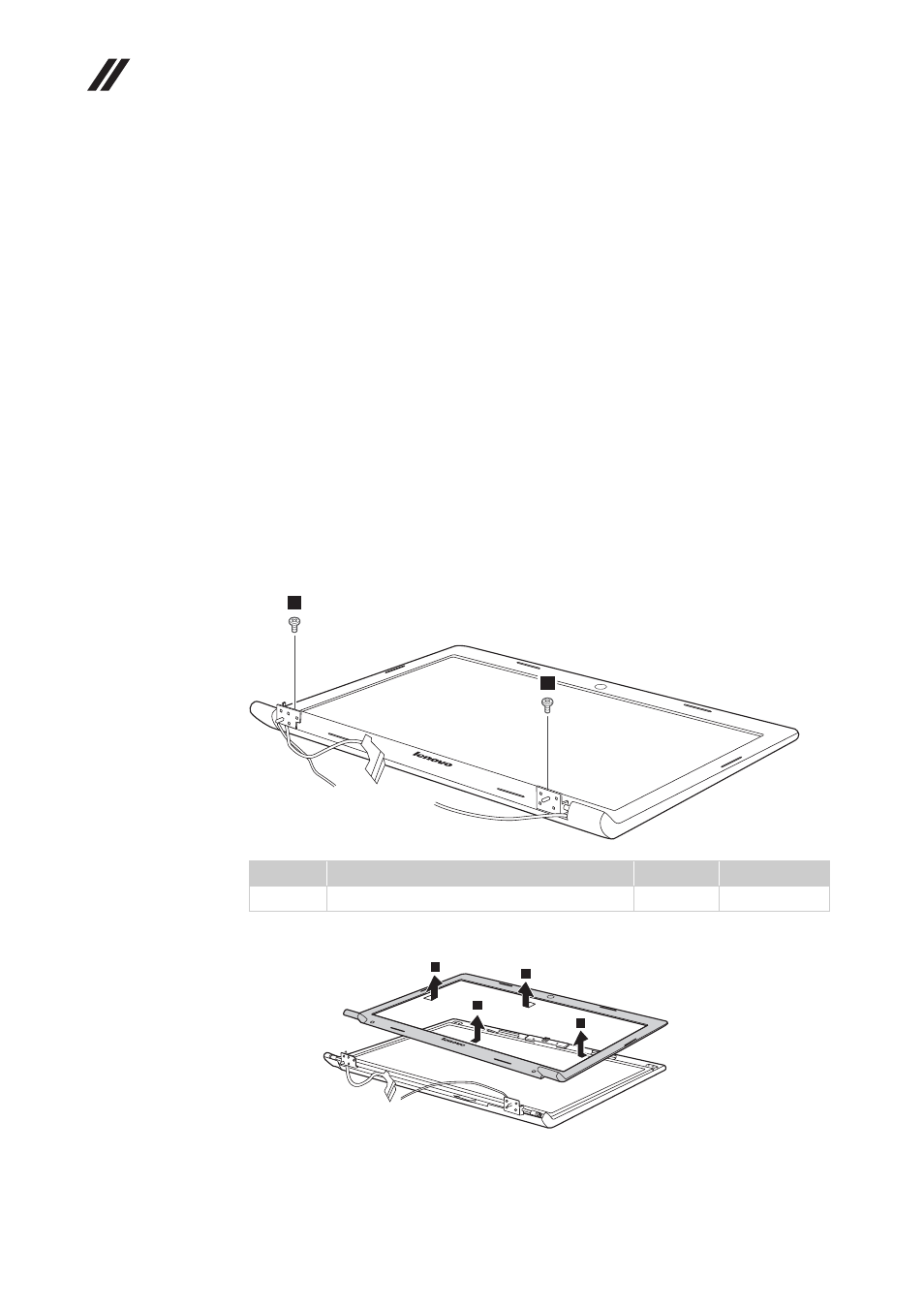

Figure 15. Removal steps of LCD front bezel
Remove two screws .
Remove the LCD front bezel in the direction shown by arrows .
Step Screw (quantity) Color Torque
M2.0 × 4 mm, flat-head, nylokcoated (2) Black 1.85 kgfcm
a
1
1
a
b
2
2
2
2
