65
Lenovo G560
1160 LCD front bezel
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1020 Dummy cards” on page 35
• “1030 Hard disk drive (HDD)/Memory/CPU (Central processing unit)/Mini
PCI ExpressCard slot compartment cover ” on page 36
• “1040 Hard disk drive ” on page 37
• “1050 Optical drive” on page 39
• “1060 DIMM” on page 40
• “1070 Fan assembly and Heat Sink assembly” on page 41
• “1090 PCI Express Mini Card for wireless LAN/WAN” on page 45
• “1100 Keyboard” on page 47
• “1110 Keyboard bezel” on page 49
• “1130 System board and ExpressCard slot assembly” on page 54
• “1140 LCD unit” on page 58

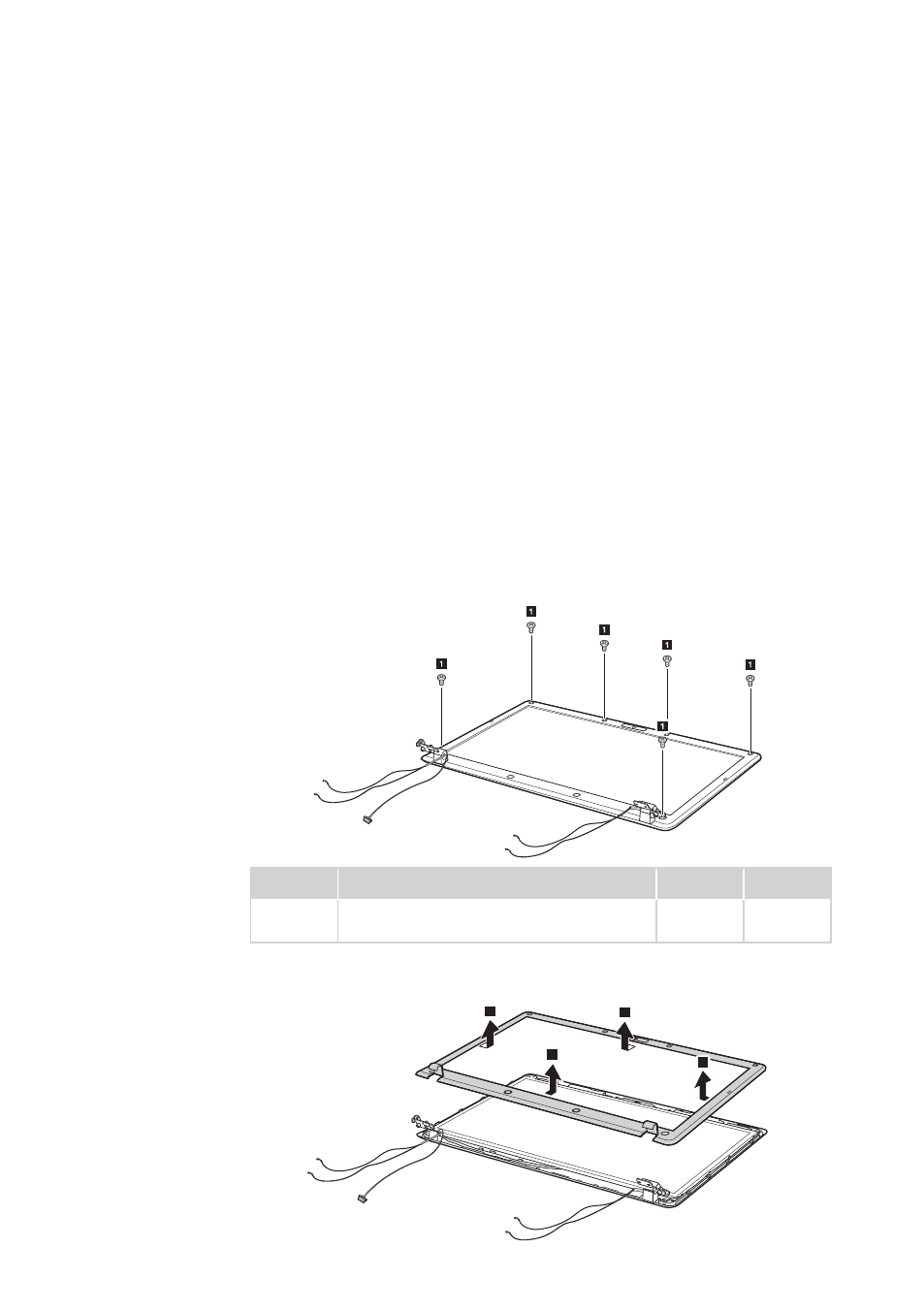

Figure 16. Removal steps of LCD front bezel
Remove six screws
1 .
Step Screw (quantity) Color Torque
1
M2.5 × 5 mm, flat-head, nylon-coated (6) Silver 0.6 Nm
(6 kgfcm)
Remove the LCD front bezel in the direction shown by arrows
2
.
2 2
2
2
