1. Rotate the drive tray handle

2

of the hard disk drive tray assembly

1

to the open position. Then, grasp

the handle and pull the drive tray assembly with the hard disk drive out of the bay.

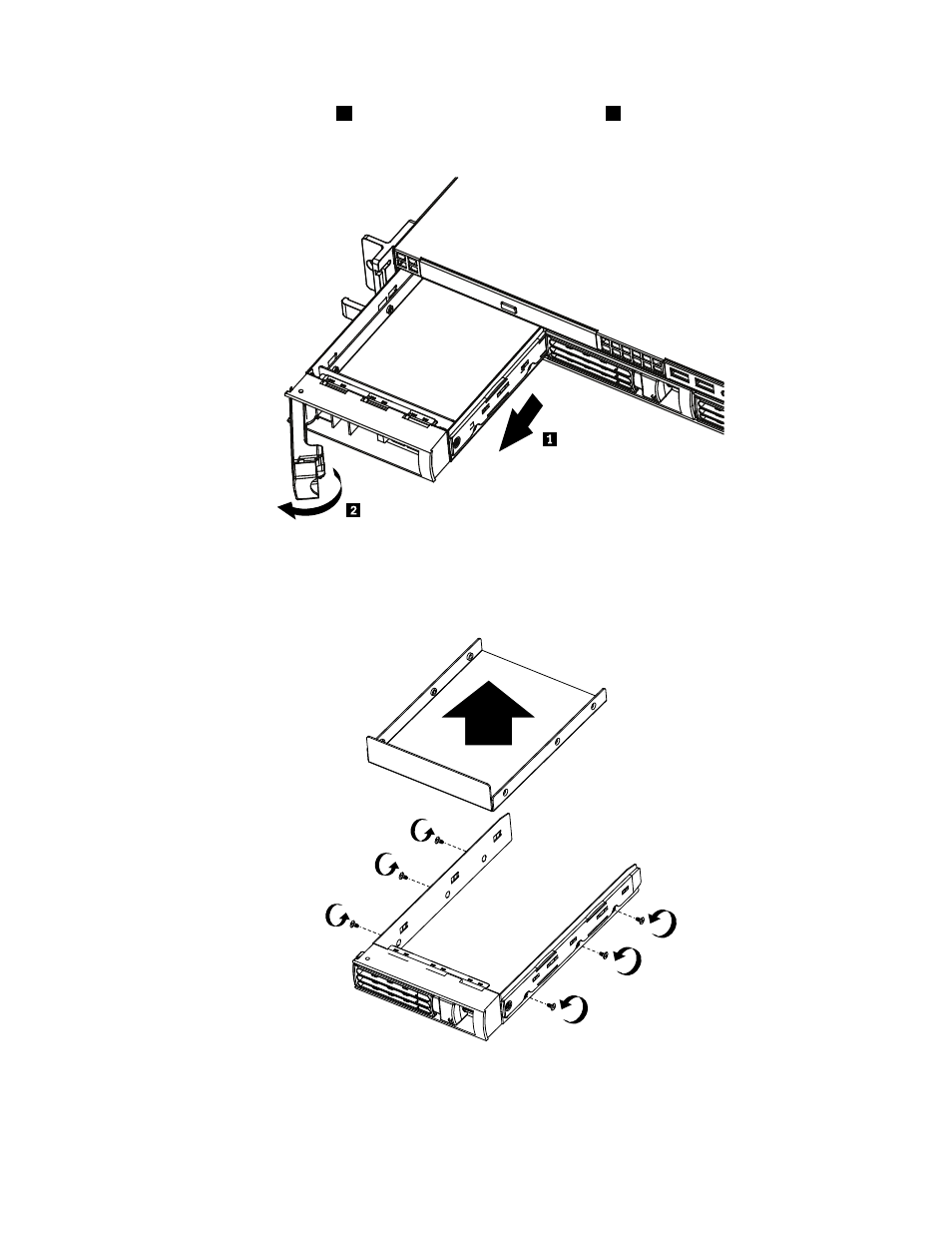

Figure 16. Removing the hard disk drive tray assembly with the hard disk drive

2. Remove the screws that secure the hard disk drive in the tray. Then, remove the hard disk drive.

Figure 17. Removing a 3.5-inch hard disk drive

Chapter 5

.

Installing, removing, or replacing hardware

31
