2.

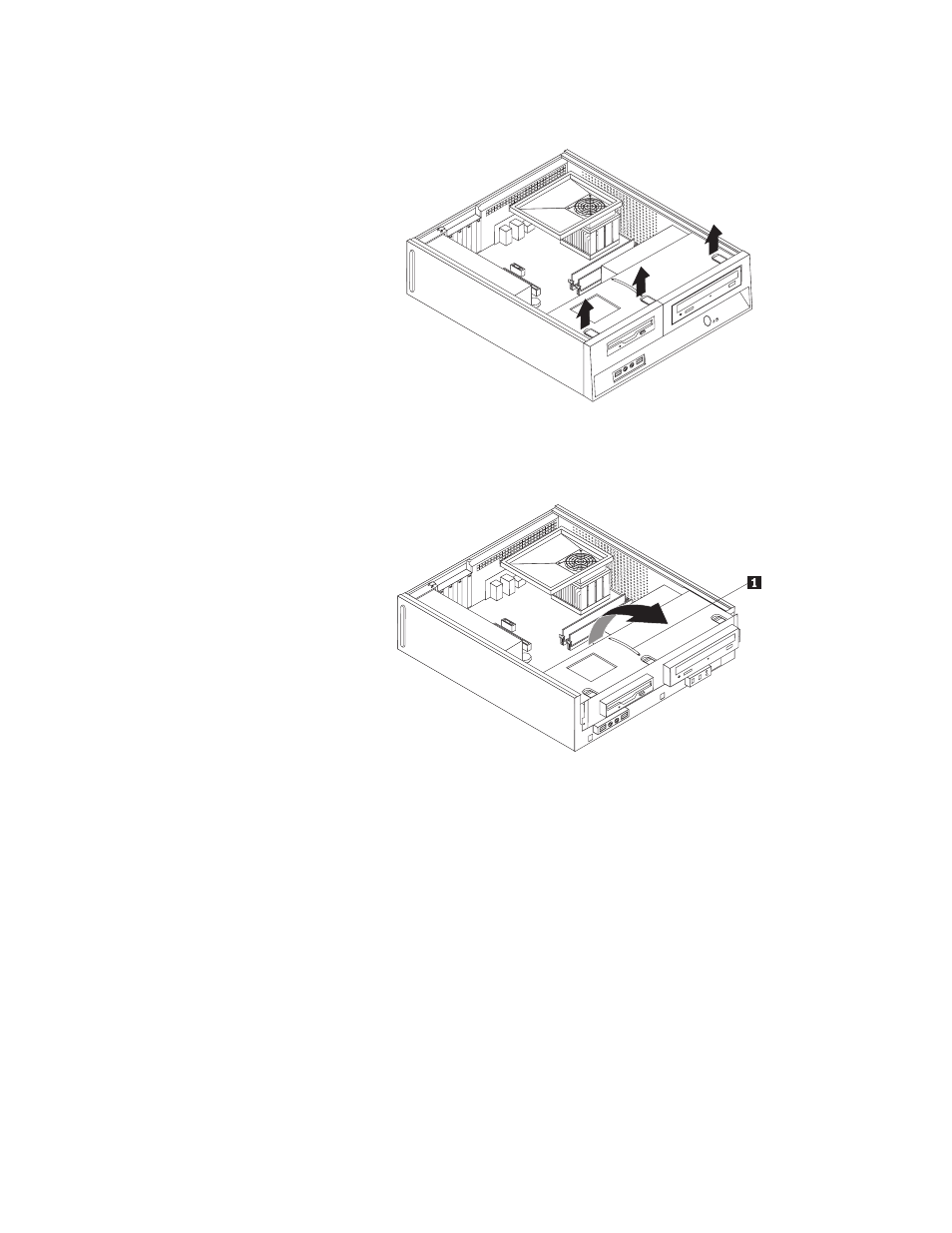

Remove

the

front

bezel

by

releasing

the

three

tabs

and

pivoting

the

bezel

forward

to

remove

completely.

3.

Slide

the

drive

bay

assembly

forward

until

the

drive

bay

assembly

is

aligned

with

the

two

slots

on

the

sides

of

the

chassis

and

remove

the

drive

cables

from

the

system

board.

Then

pull

upward

on

the

handle

1

on

the

drive

bay

assembly

to

remove

it

completely

from

the

computer.

4.

Disconnect

the

signal

and

power

cables

from

the

rear

of

the

hard

disk

drive.
