58
Chapter 6. Upgrading and replacing devices
8

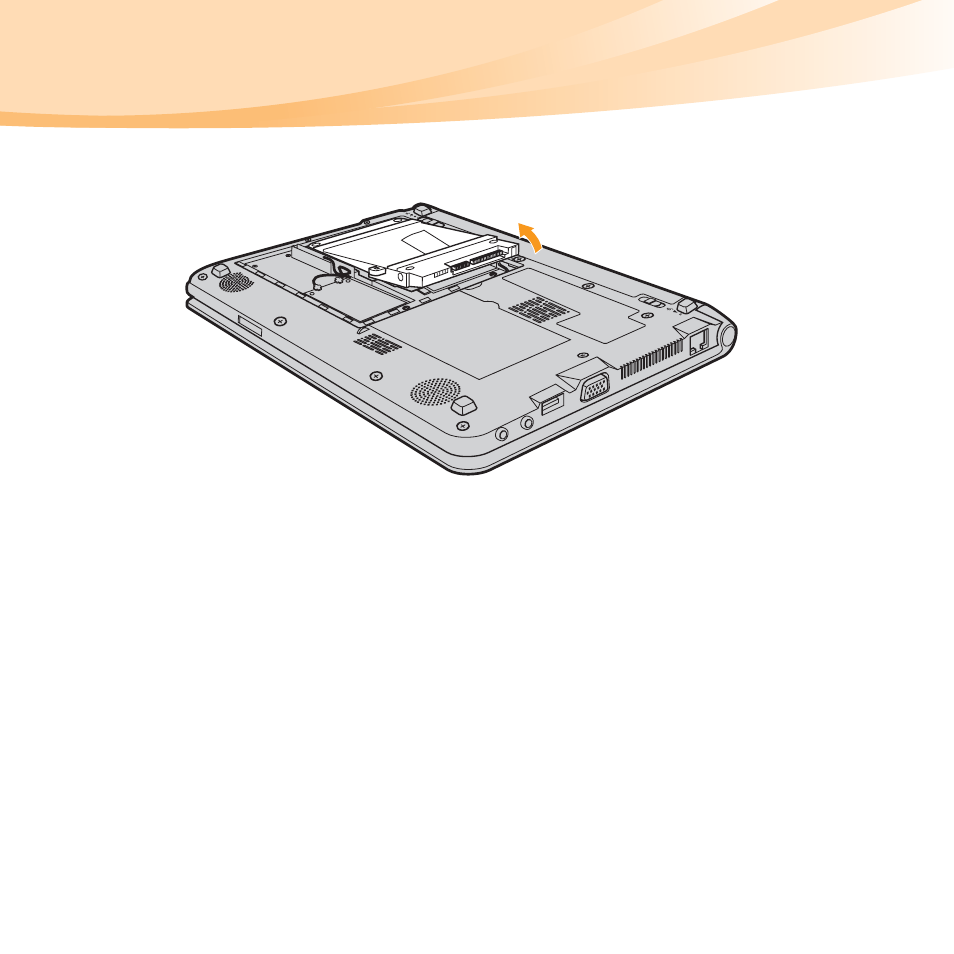

Take out the hard disk drive secured in a metal frame .
9
Remove the screws and detach the metal frame from the hard disk
drive.
0
Attach the metal frame to a new hard disk drive; then tighten the
screws.
A
Put the hard disk drive gently into the hard disk drive bay with the tab
facing upwards and the connectors facing each other; then push it
firmly into space.
B
Reinstall the screw that secures the hard disk drive.
C
Reinstall the cover of PCI Mini Express Card slot/hard disk drive
(HDD) compartment.
