42
Lenovo IdeaTab A2109A-F Hardware Maintenance Manual
1090 Integrated camera
For access, remove these FRUs in order:
• “1010 Rear cover” on page 27
• “1020 Battery pack” on page 30
• “1030 System board” on page 32
• “1040 IO board ” on page 35
• “1050 Digital board” on page 37
• “1060 Speakers” on page 39
• “1070 Internal antenna” on page 40
• “1080 Volume button bracket” on page 41

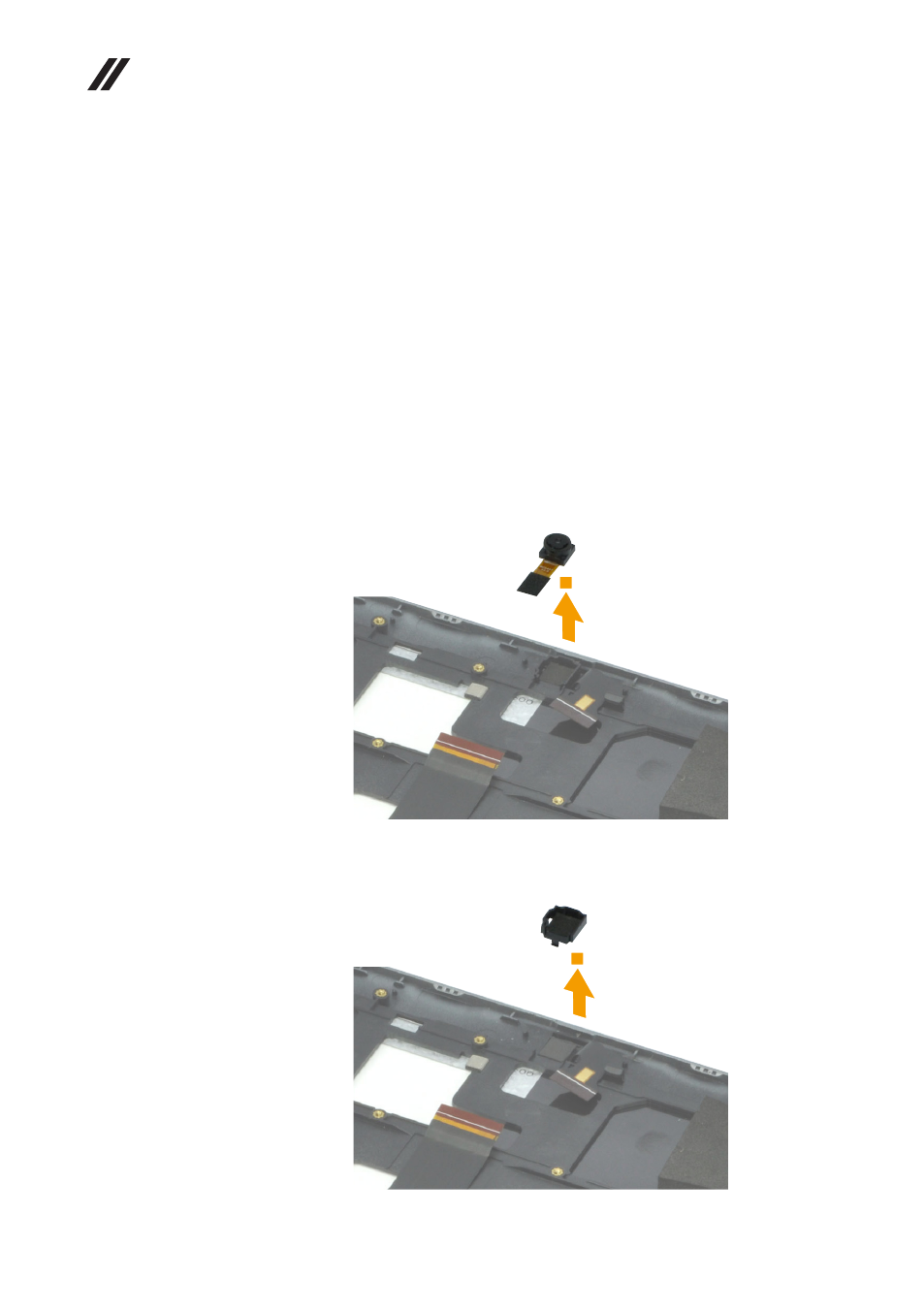

Figure 9. Removal step of integrated camera
Remove the back camera in the direction shown by arrow 1 .
1
Remove the back camera bracket in the direction shown by arrow
2
.
2
