Replacing the camera/Mic. system
To replace the camera/Mic. system
1. Remove the computer cover. Refer to ”Removing the computer cover“.

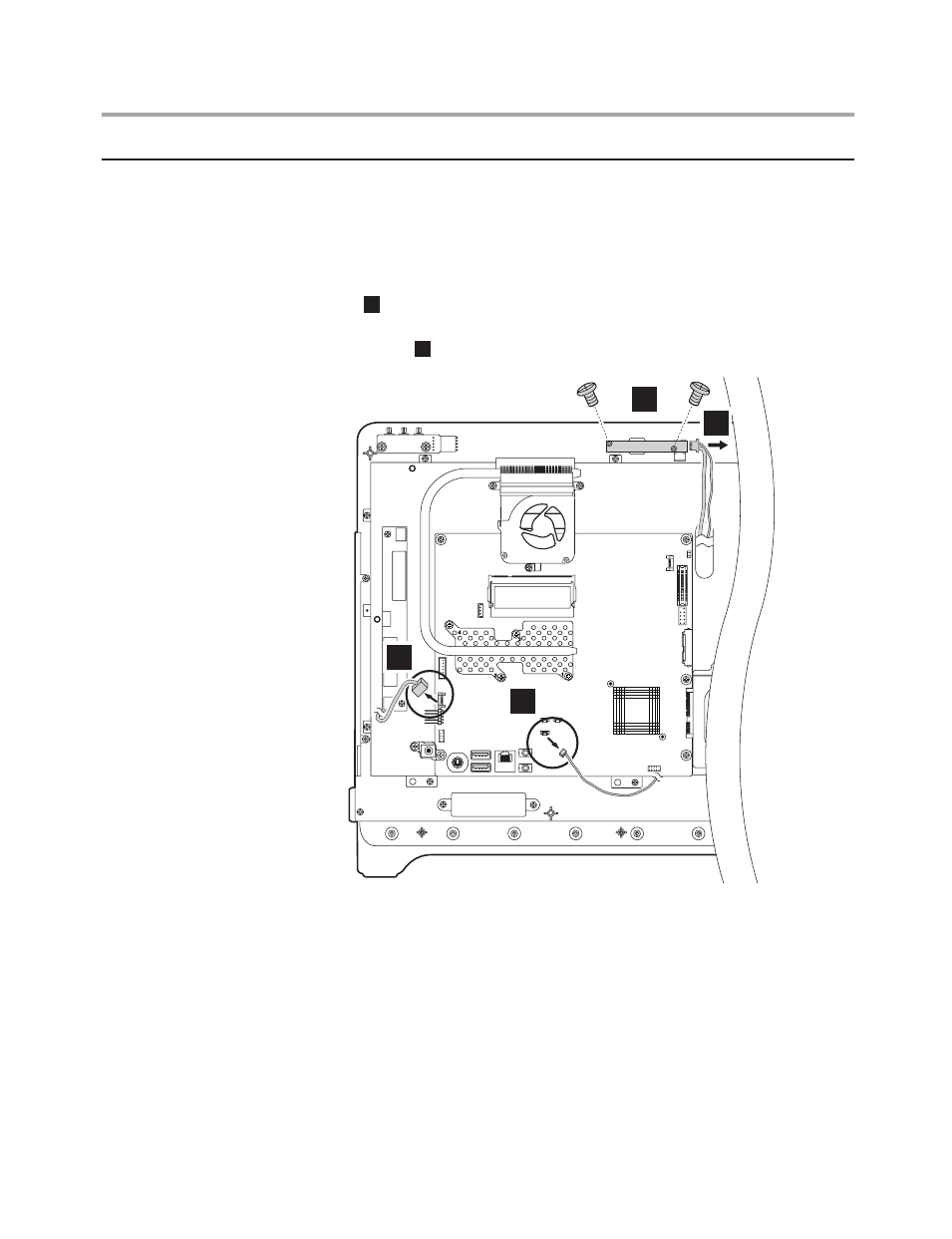

2. Remove the two screws that secure the camera/Mic. system to the
chassis 1 and disconnect one end of the camera cables from the rear
of the camera/Mic. system and the other end of the cables from the
system board
2 .
1
2
3
4
1
2
2
2
3. Pull the camera/Mic. system away from the chassis.
4. Screw back the two screws on the new camera.
5. Connect the camera cables to the camera and the system board.
6. Install the computer cover. Refer to “Completing the installation“.
