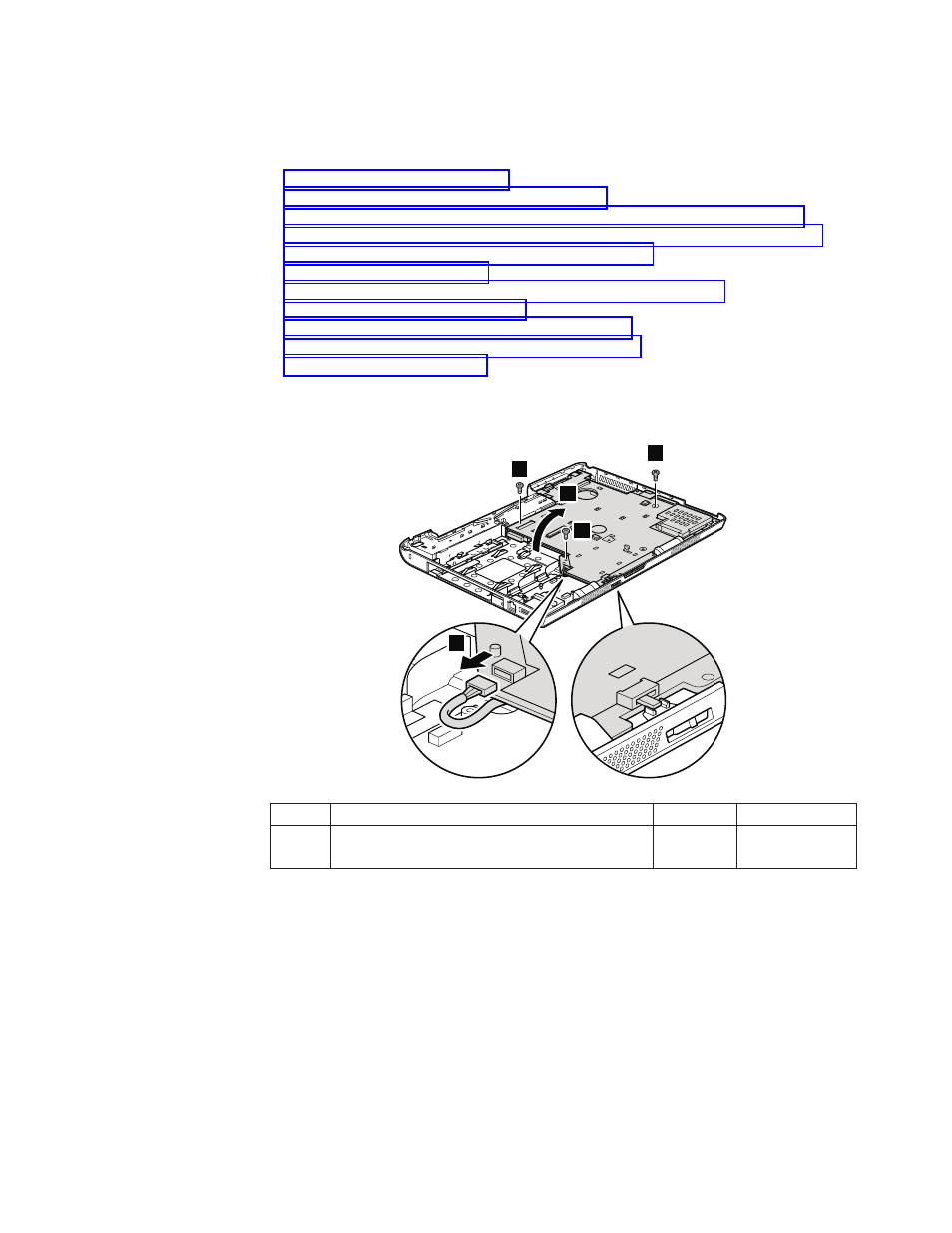

1190 System board, 5-1 Digital Media Reader board,
ExpressCard slot, and base cover
For access, remove these FRUs, in order:
v
“1010 Battery pack” on page 45
v
“1020 Hard disk drive slot cover” on page 46
v “1060 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 49
v
“1070 PCI Express Mini Card for 802.11 a/b/g/n wireless LAN” on page 50
v
“1120 Middle cover and function board” on page 56
v “1130 Keyboard” on page 58
v
“1140 Keyboard bezel and fingerprint reader card” on page 60
v
“1150 Backup battery” on page 64
v “1160 Modem daughter card (MDC)” on page 65
v
“1170 Bluetooth daughter card (BDC)” on page 66
v
“1180 LCD unit” on page 67
Note: The 5-1 Digital Media Reader board and the ExpressCard slot are attached
to the system board.
2
1
1
1
3
Step Screw (quantity) Color Torque
1 M2.5 × 6 mm, pan-head, nylon-coated (3) Dark silver 0.392 Nm
(4 kgfcm)
When installing: Make sure that the connector is attached firmly.
(continued)
Removing and replacing a FRU
Lenovo 3000 N200
69
