Lenovo Horizon 2e Table PC User Manual
Page 49
Step 9.

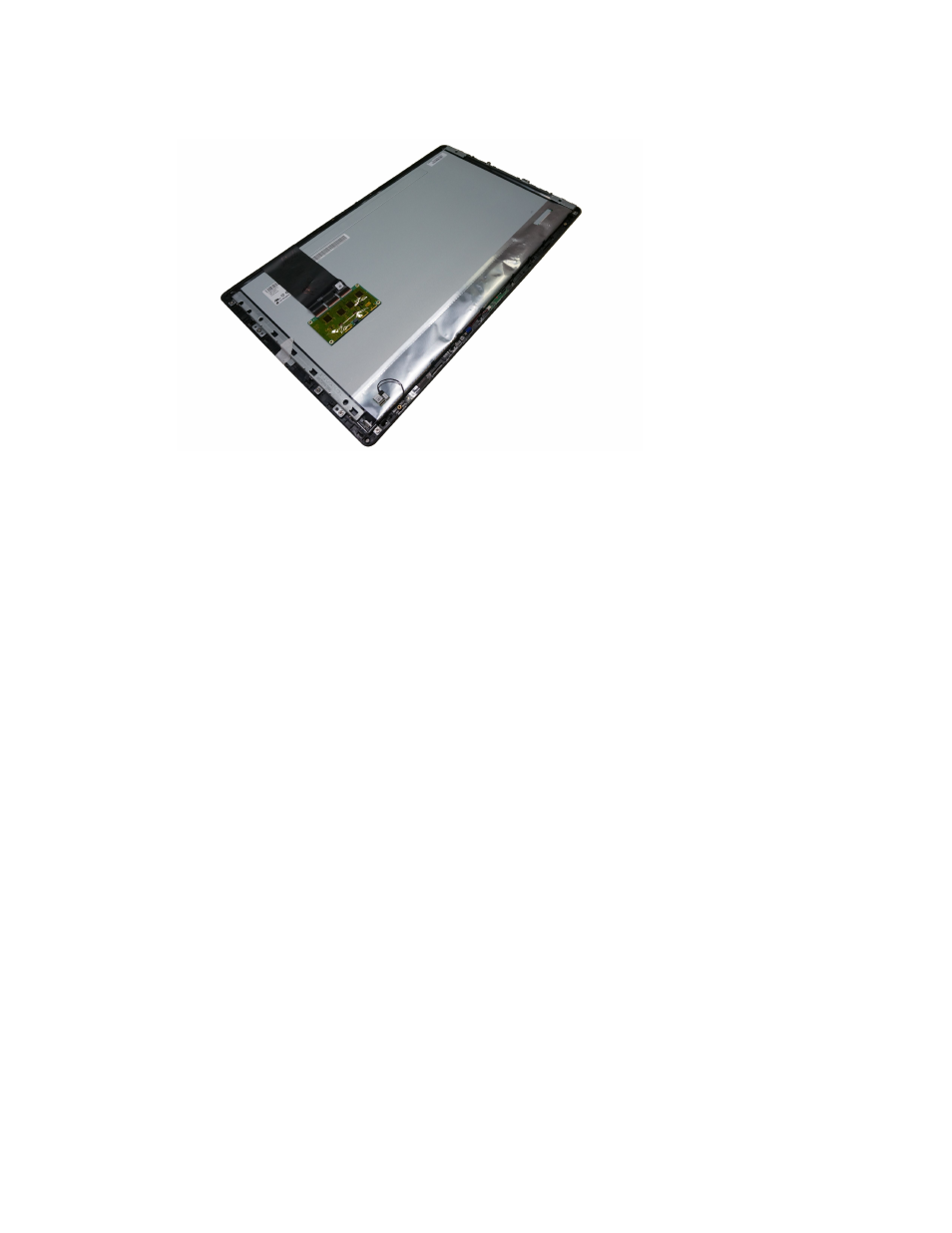

The LED panel module including: LED panelGlassLED bracketsTouch control boardNFC board
Step 10. To install the new the LED panel module:
a.
Connect the LVDS cable to the connector and touch control board.
b.
Reattach the camera to the front bezel.
c.
Connect the converter cables to the connectors on both LED panel.
d.
Connect the LVDS cable to the connectors on both LED panel.
e.
Connect the touch cable to the connectors on the touch control board.
Step 11. Reattach the rear cover and secure it with the screws.
43
