Lenovo M30-70 Hardware Maintenance Manual
42

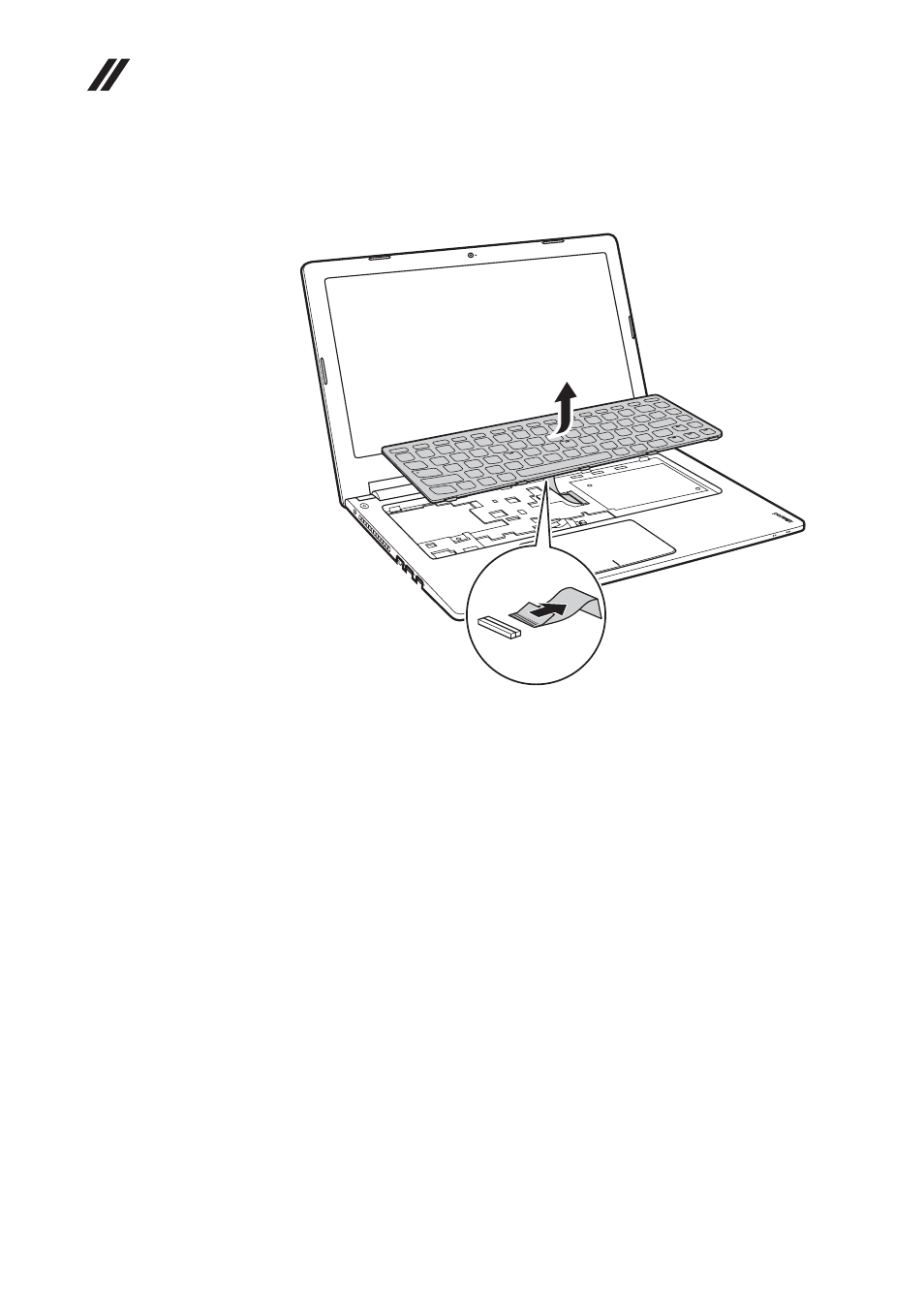

Figure 6. Removal steps of keyboard (continued)
Lift the keyboard a little , and then detach the connector in the direction
shown by arrow .
When installing: Make sure that the FPC connector is attached firmly.
c
d
d
c
