Appendix A. CRU instructions
33

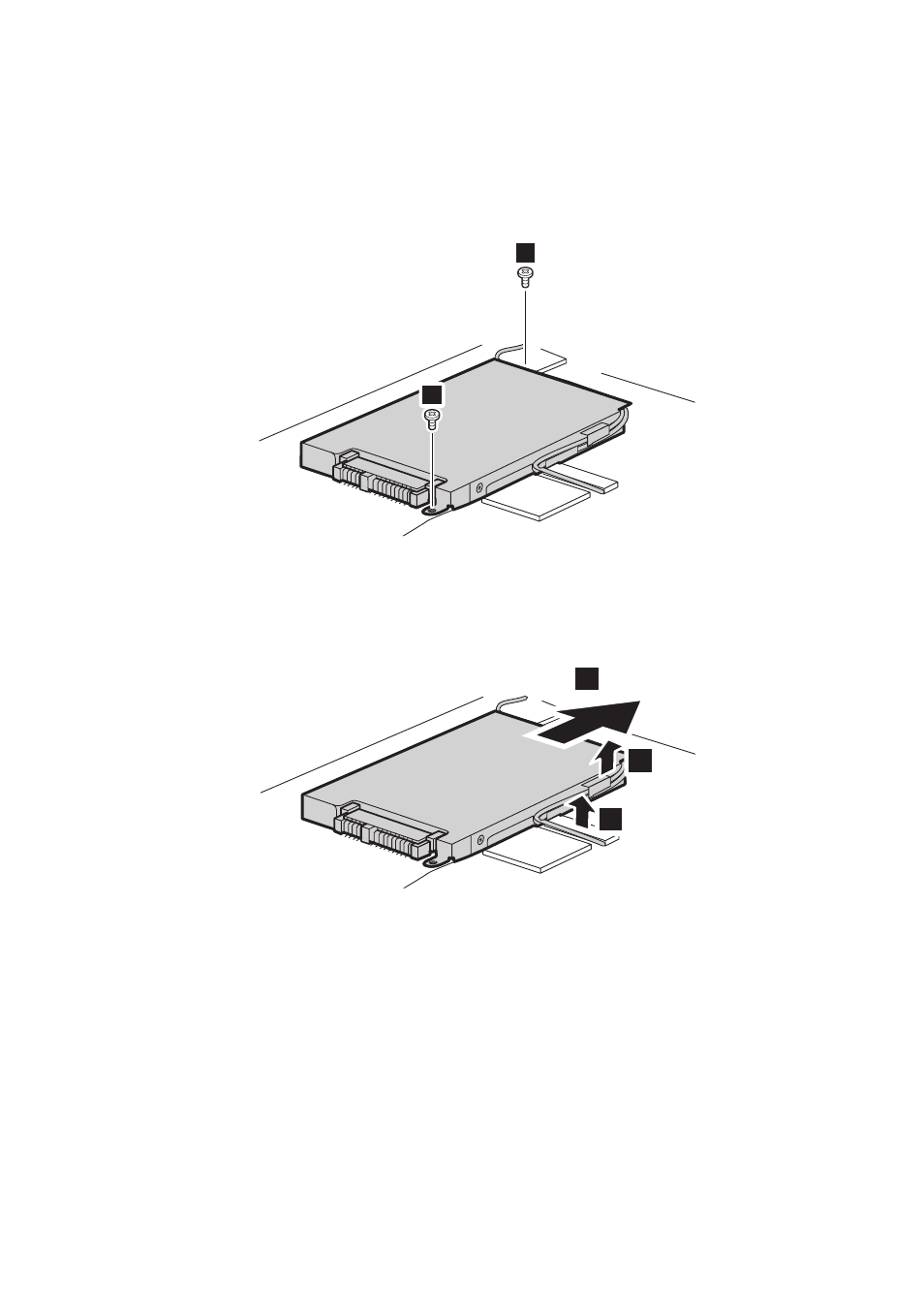

6 Remove the frame fixing screws.
7 Release the cables from the cable guides of the hard disk drive frame and
pull the tab in the direction shown by arrow .
8 Take out the hard disk drive secured in the hard disk drive bay.
9 Remove the screws and detach the metal frame from the hard disk drive.
0 Attach the metal frame to a new hard disk drive; then tighten the screws.
A Put the hard disk drive gently into the hard disk drive bay with the tab
facing upwards and the connectors facing each other; then push it firmly
into space.
B Reinstall the frame fixing screws.
C Reinstall the base cover and the keyboard.
D Reinstall the battery pack.
E Turn the computer over again. Connect the AC adapter and the cables to
the computer again.
