When installing: Insert the notched end of the memory module into the socket. Press the memory module
firmly, and pivot it until it snaps into place. Make sure that it is firmly installed in the slot and does not
move easily.
1060 PCI Express Mini Card for wireless LAN
For access, remove these FRUs in order:
•
“1010 Battery pack” on page 44
• “1020 Bottom slot cover” on page 44
Removal steps of PCI Express Mini Card for wireless LAN

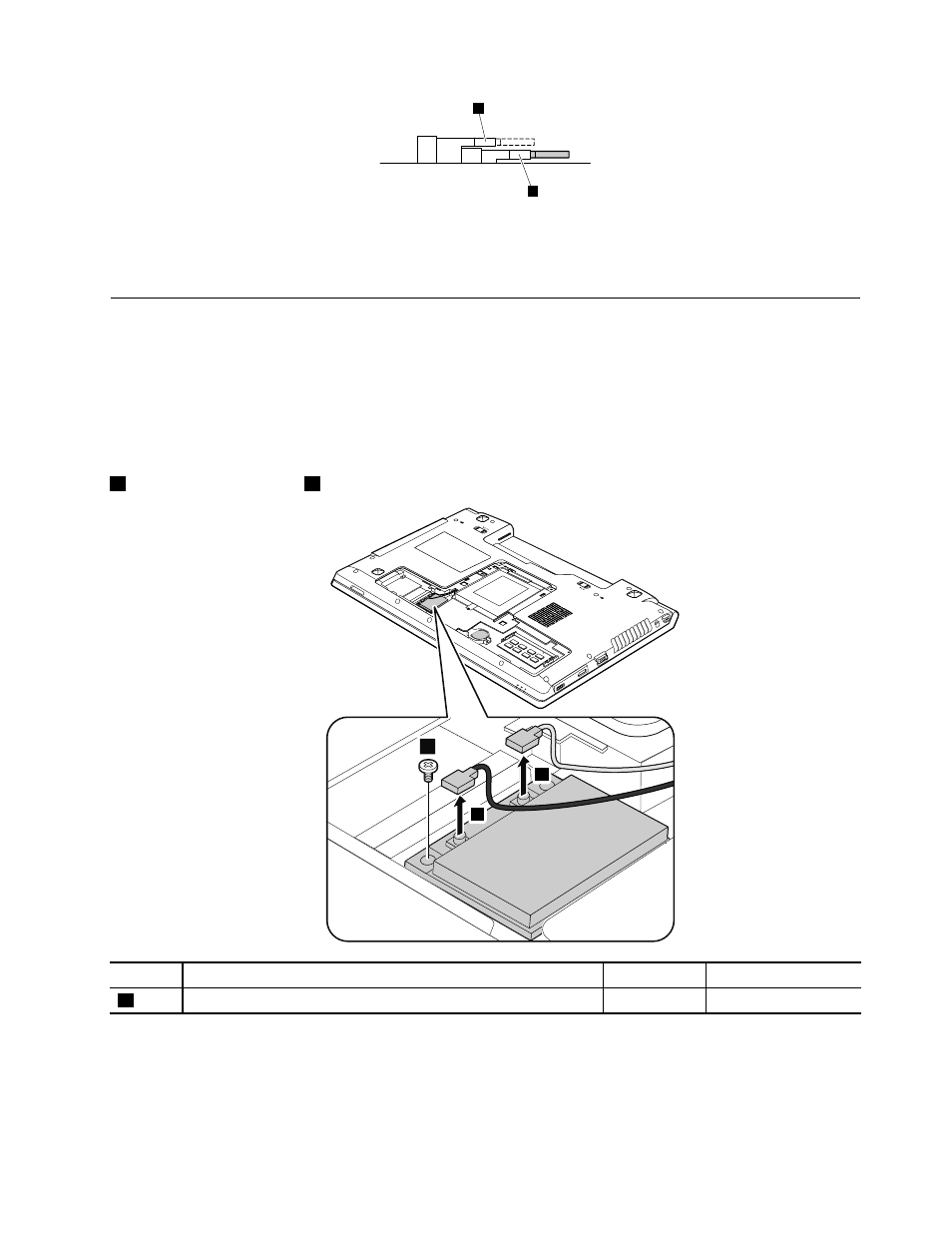

Disconnect the cable from the card using the removal tool antenna RF connector (P/N: 08K7159) or pick
up the cable with your fingers and then gently disconnect it from the card in the direction of the arrow
1 . Then remove the screw 2 .
2
1
1
Step Screw (quantity) Color Torque
2 M2 × 3 mm, flat-head, nylon-coated (1) Black 1.6 kgf-cm
Chapter 7 . Removing and replacing a FRU 49
