1030 Optical drive/Hard disk drive (HDD)/Memory/Central
processing unit/Mini PCI Express Card slot
compartment cover
For access, remove this FRU:
• “1010 Battery pack” on page 34

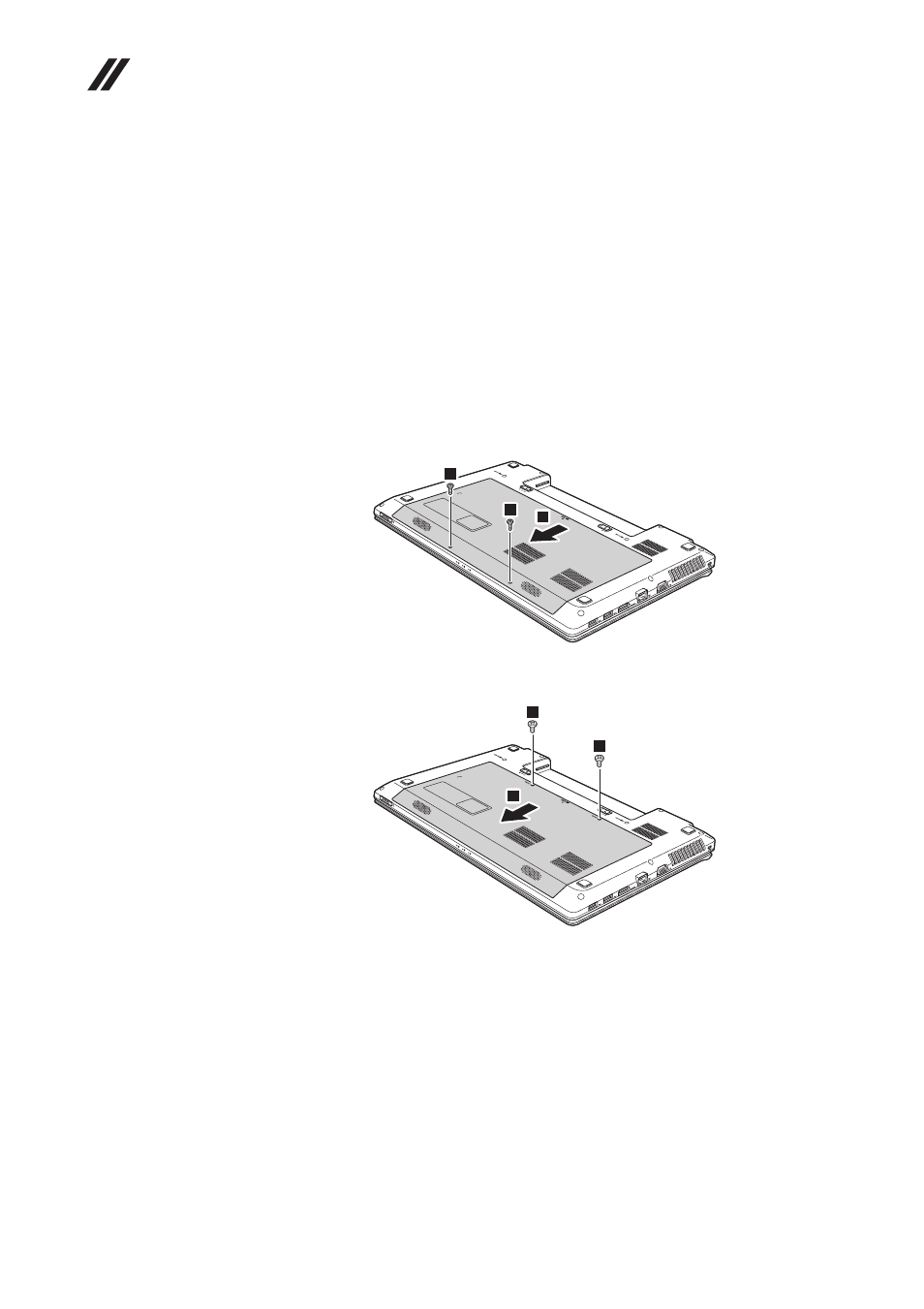

Figure 3. Removal steps of Optical drive/Hard disk drive (HDD)/Memory/Central
processing unit/Mini PCI Express Card slot compartment cover
Lenovo G480/G485/G580/G585
Remove the two screws , then remove the compartment cover in the direction
shown by the arrow .
Lenovo G480:
Lenovo G580:
a
b
1
1
2
1
1
2
