LPe12000, LPe12002 and LPe12004 Hardware Installation Manual Page 7
Applying Power
To apply power:
1. Verify that the HBA is securely installed in the computer.
2. Verify that the correct media is attached.
3. Plug in the computer and turn it on.
4. Watch the LEDs for Power On Self Test (POST) results.
Viewing the LEDs
You can see green and yellow LEDs through openings in the HBA's mounting bracket. The green LED
means firmware operation and the yellow LED means port activity. Each port has a corresponding set of
green and yellow LEDs.

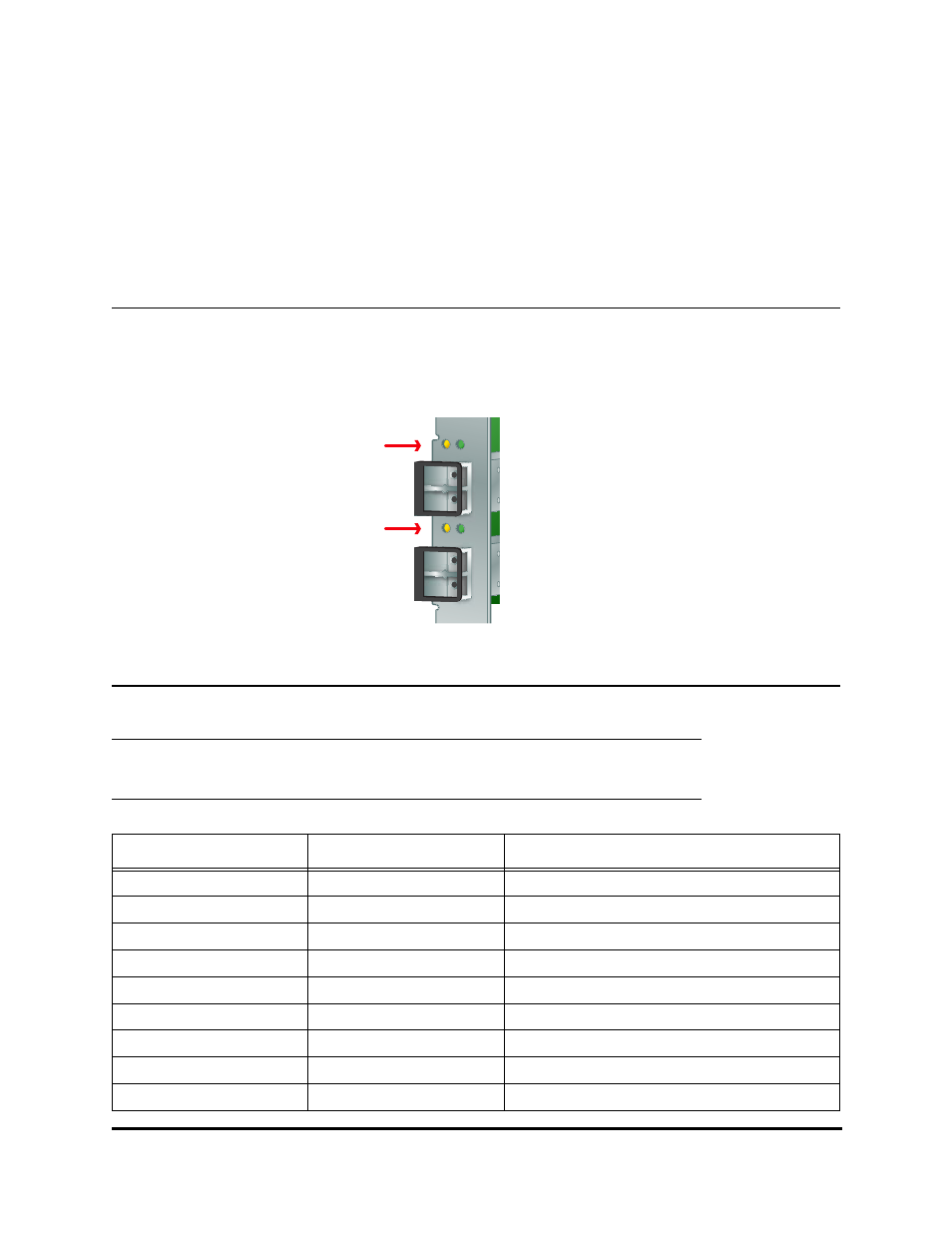

Figure 7: LEDs
POST Conditions and Results
The following table summarizes POST conditions and results:
Note: For the link rate conditions, there is a 1 second pause when the LED is off between
each group of fast blinks (2, 3 or 4). Observe the LED sequence for several seconds
to be sure you have correctly identified the pattern.
Table 8. POST Conditions and Results
Yellow LED Green LED State
Off Off Wake-up failure (dead board)
On Off POST failure (dead board)
Slow Blink Off Wake-up failure monitor
Fast Blink Off POST failure
Flashing Off POST processing in progress
Off On Failure while functioning
On On Failure while functioning
2 Fast Blinks On 2Gb/s link rate-normal, link up
3 Fast Blinks On 4Gb/s link rate-normal, link up
Port 0
LEDs
Port 1
LEDs
