Hardware Replacement Guide

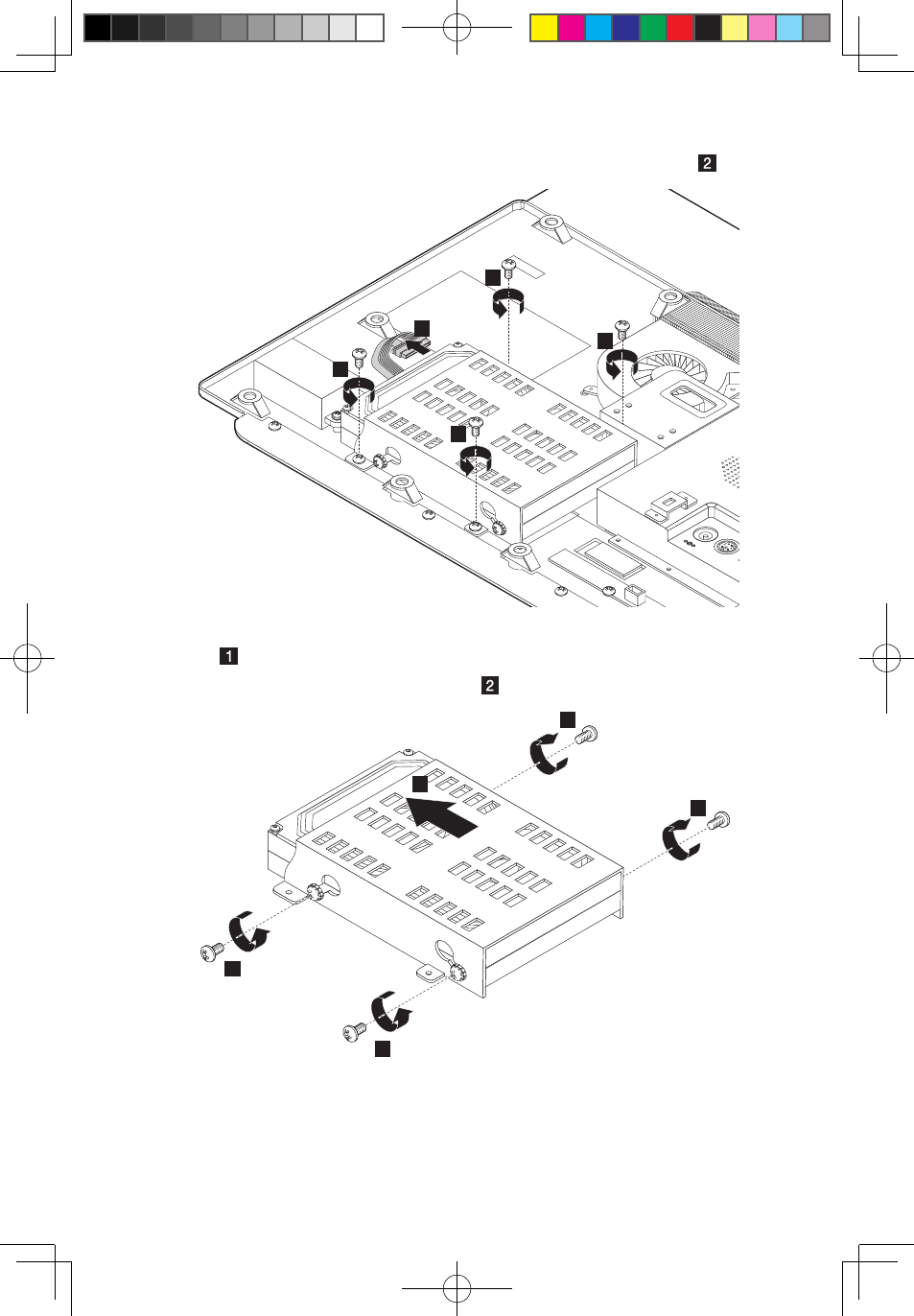

4. Remove the 4 screws that secure the hard disk drive to the chassis.
2
2
2
2
1
5. Remove the 4 screws that secure the hard disk drive to the hard disk drive
bay.
6. Slide the hard disk drive out of the bay.
2
1
1
1
1
7. Install the new hard disk drive.
(1) Slide the new hard disk drive into the drive bay.
(2) Screw back the 4 screws on the drive bay.
