Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the computer screen from scratches
or other damage.
To replace the EMI cover
Step 1. Remove any media (disks, CDs, DVDs, or memory cards) from the drives, shut down the operating
system, and turn off the computer and all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to “Left and right view”
and “Rear view” for help with locating the various connectors.
Step 4. Remove the stand base. Refer to “Removing the stand base”.
Step 5. Remove the foot cover. Refer to “Removing the foot cover”.
Step 6. Remove the stand holder. Refer to “Removing the stand holder”.
Step 7. Remove the middle cover. Refer to “Removing the middle cover”.

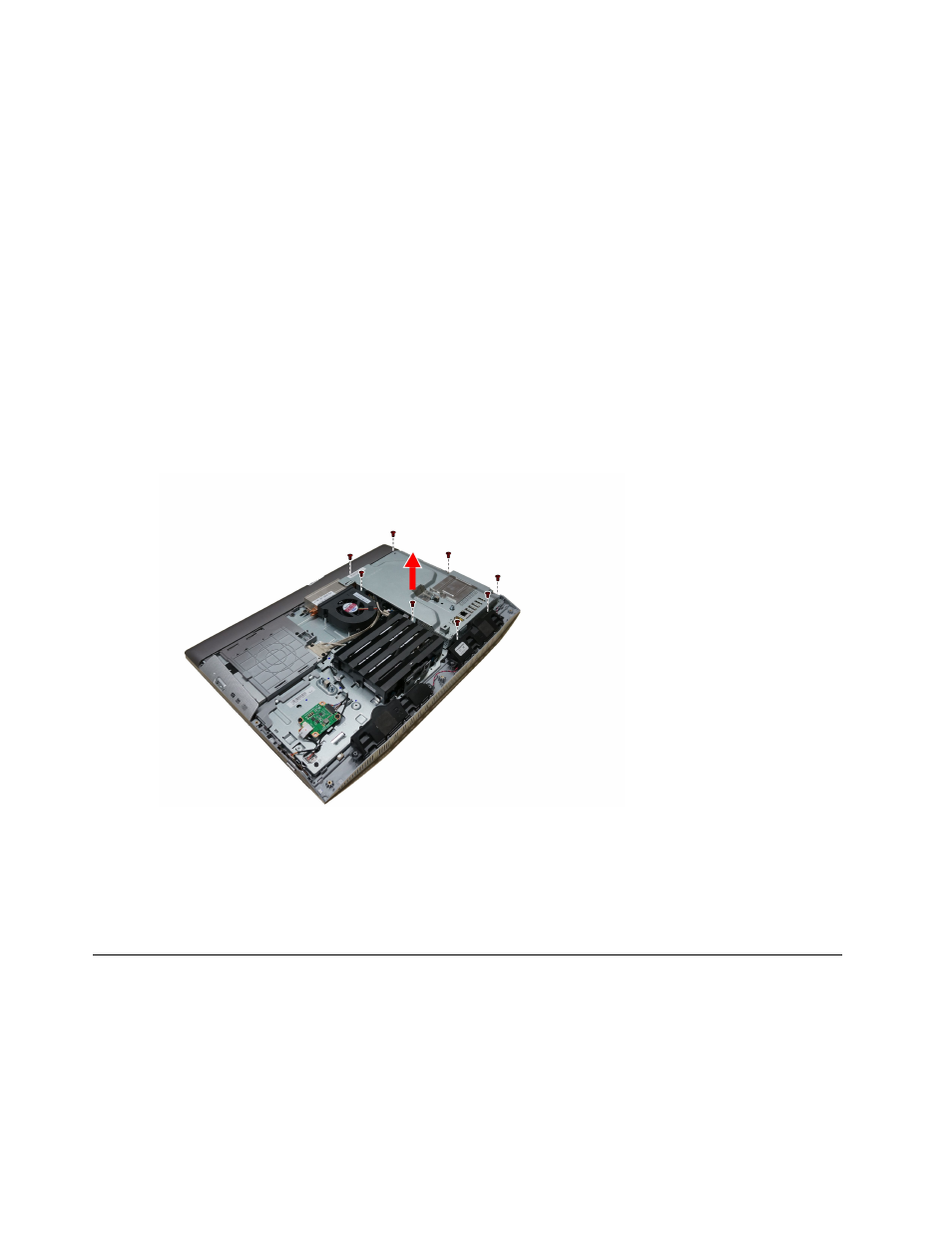

Step 8. Remove the eight screws that secure the EMI cover to the chassis, and then lift it up.
Step 9. To reattach the EMI cover:
a. Line up the holes on the EMI cover with mounting holes on the chassis, then place EMI cover
back into position.
b. Secure the EMI cover to the chassis with eight screws.
Step 10. Reattach the middle cover, stand holder, foot cover and stand base.
Replacing the Wi-Fi card
Note: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the computer screen from scratches
or other damage.
To replace the Wi-Fi card:
